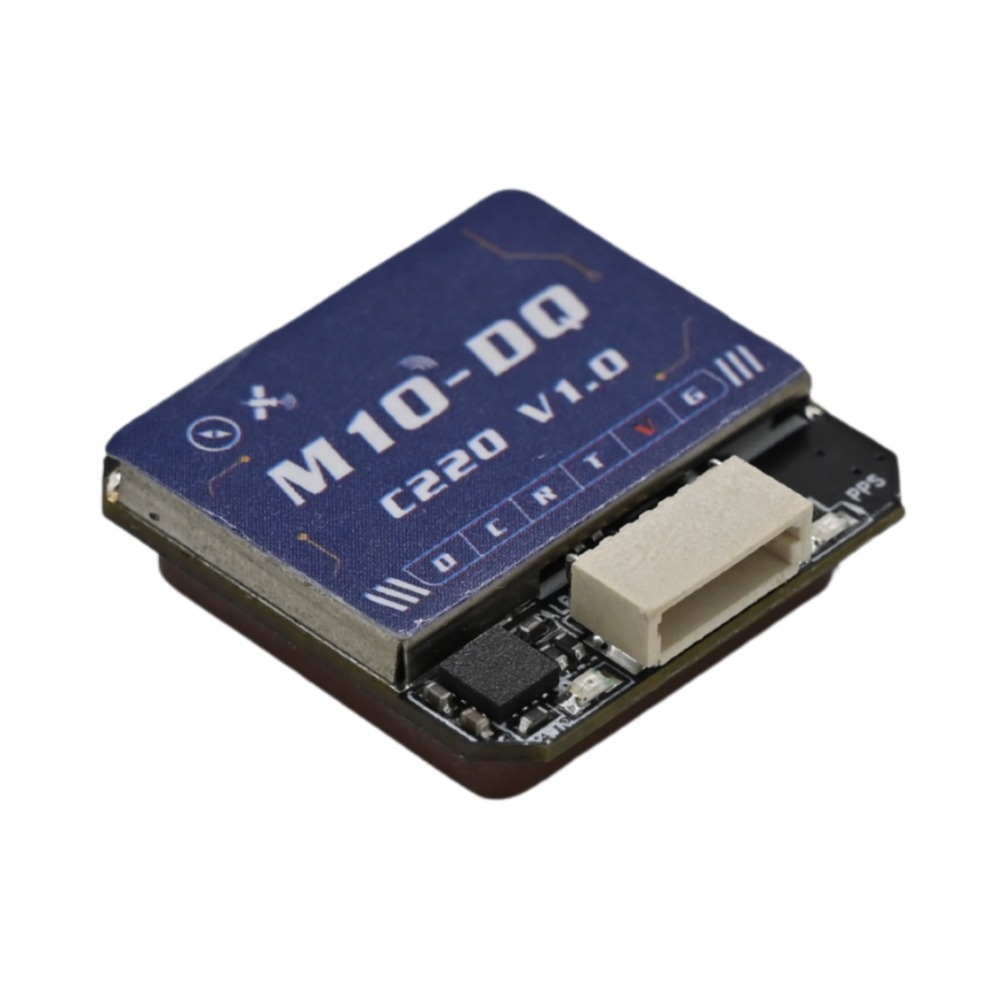

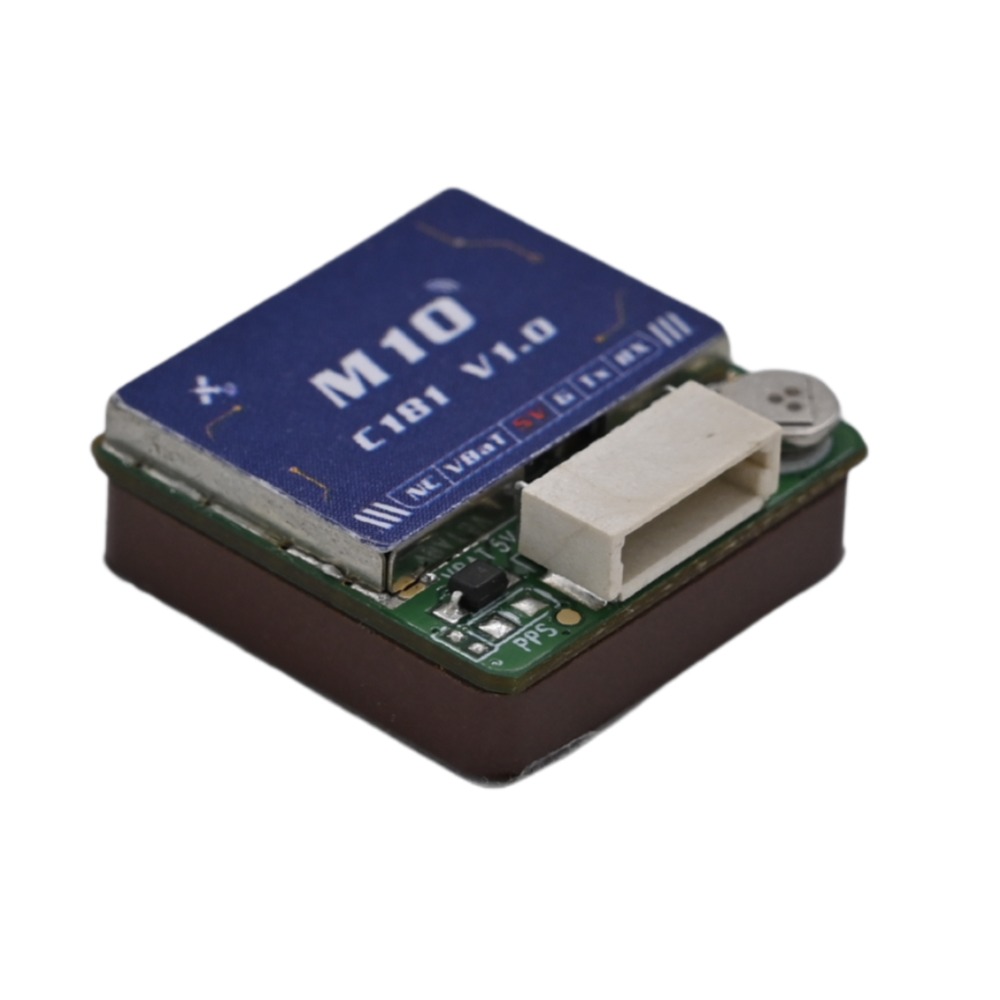

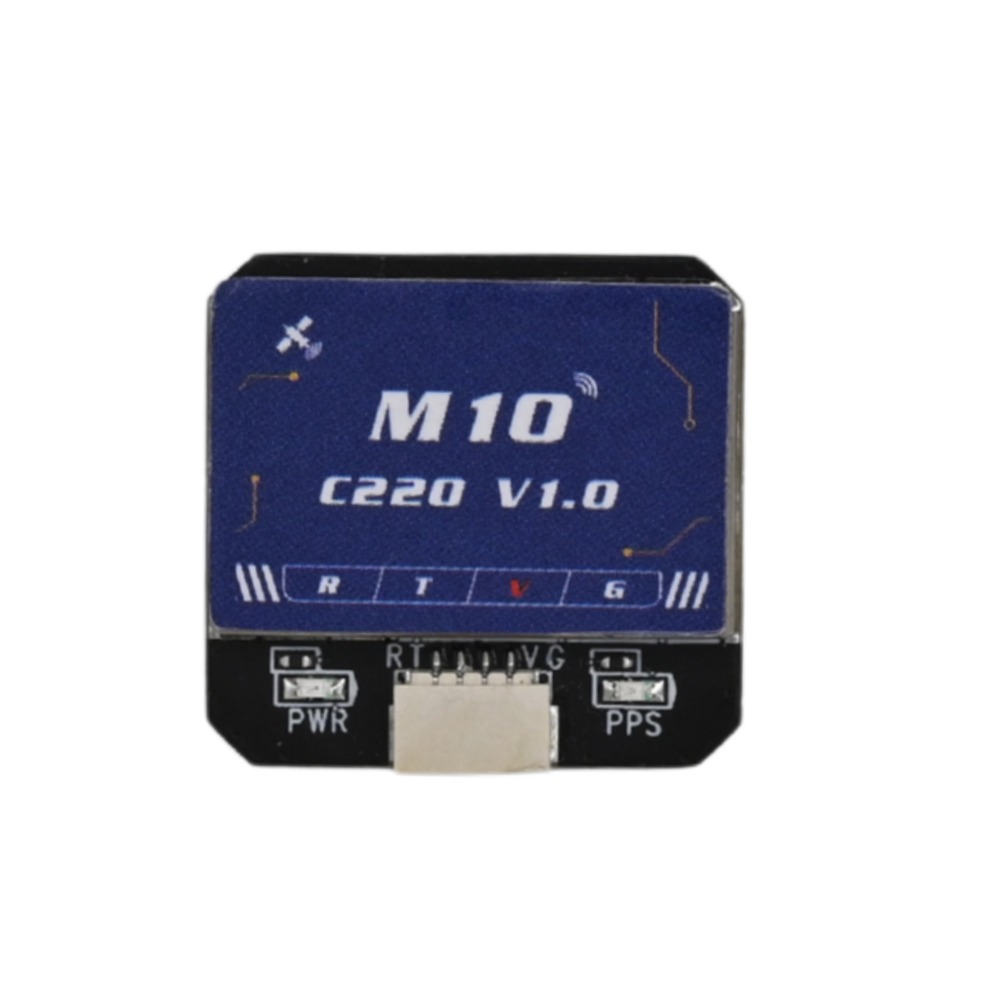

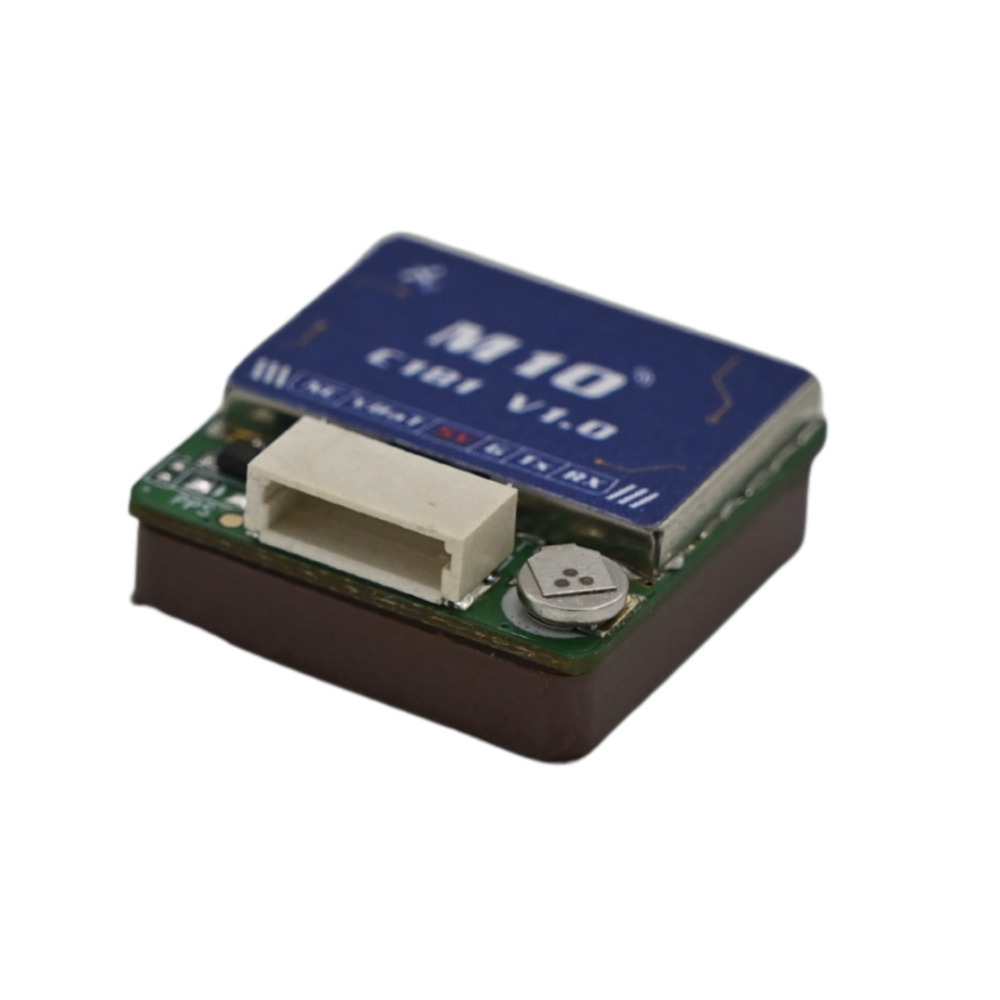

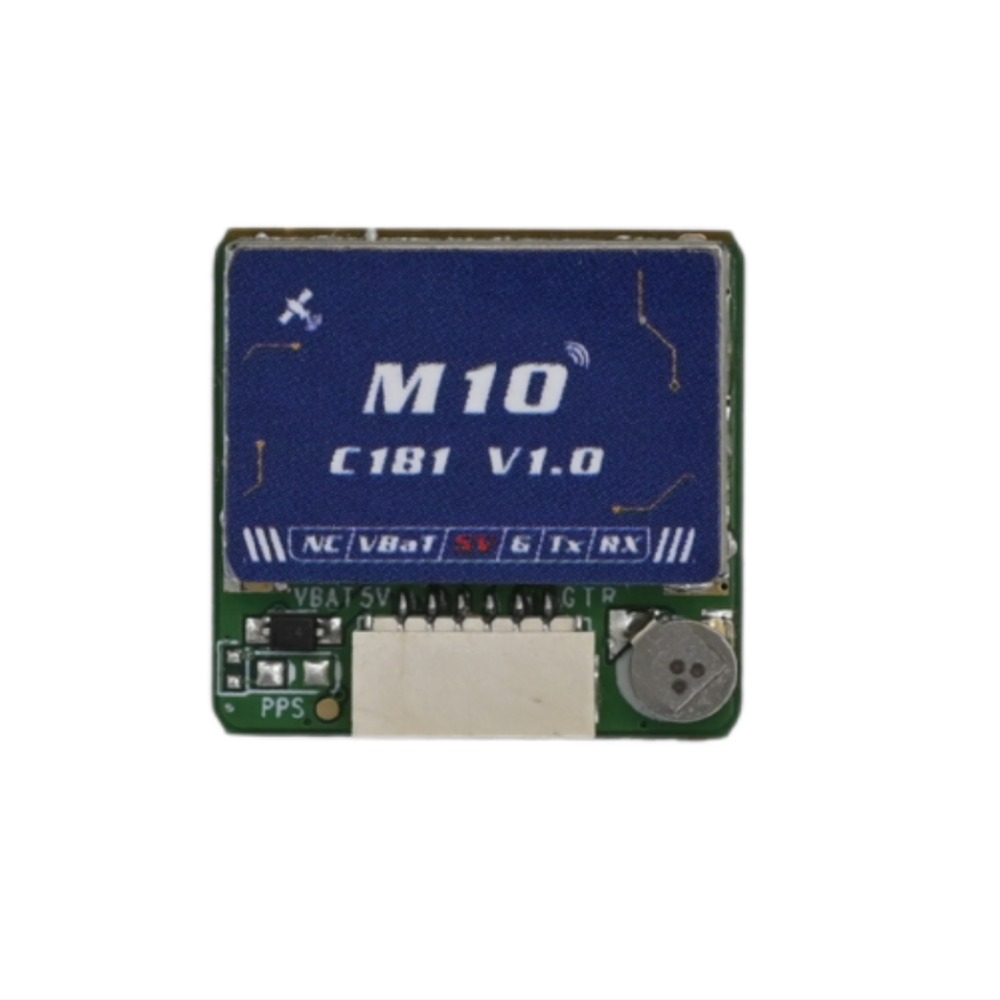

HPXGRC M10 GPS Module

Hello all FPV enthusiasts, in order to improve customer experience, the HPXGRC team has fully upgraded the GPS series product line and now launches GPS series products based on M10 chip: ,HPXG-M10,HPXG-M10-DQ.


HPXG-M10 series GPS positioning module has the features of small size, fast positioning, stable connection, and convenient use. It supports GPS + BDS + Galileo + QZSS + SBAS joint positioning, the highest Up to 32 satellites. Built-in Flash chip and farad capacitor can save configuration parameters and fast hot start. Small volume ceramic antenna provides good receiving ability. Integrated QMC5883L magnetometer and DPS310 barometer (only HPXG-M10-DQ) can provide accurate azimuth pointing and sensitive altitude change data. It can meet the needs of most FPV drones, multi-rotors, fixed-wing and other model products.

Specifications

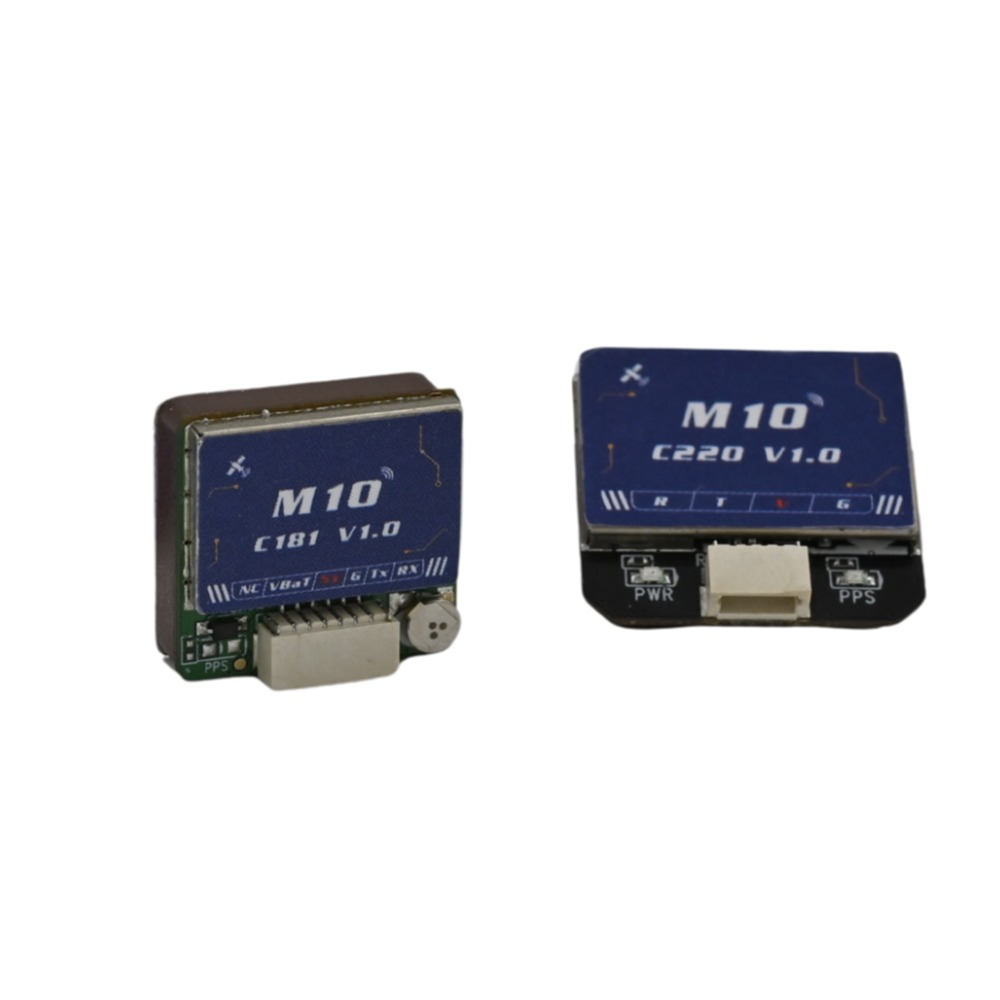

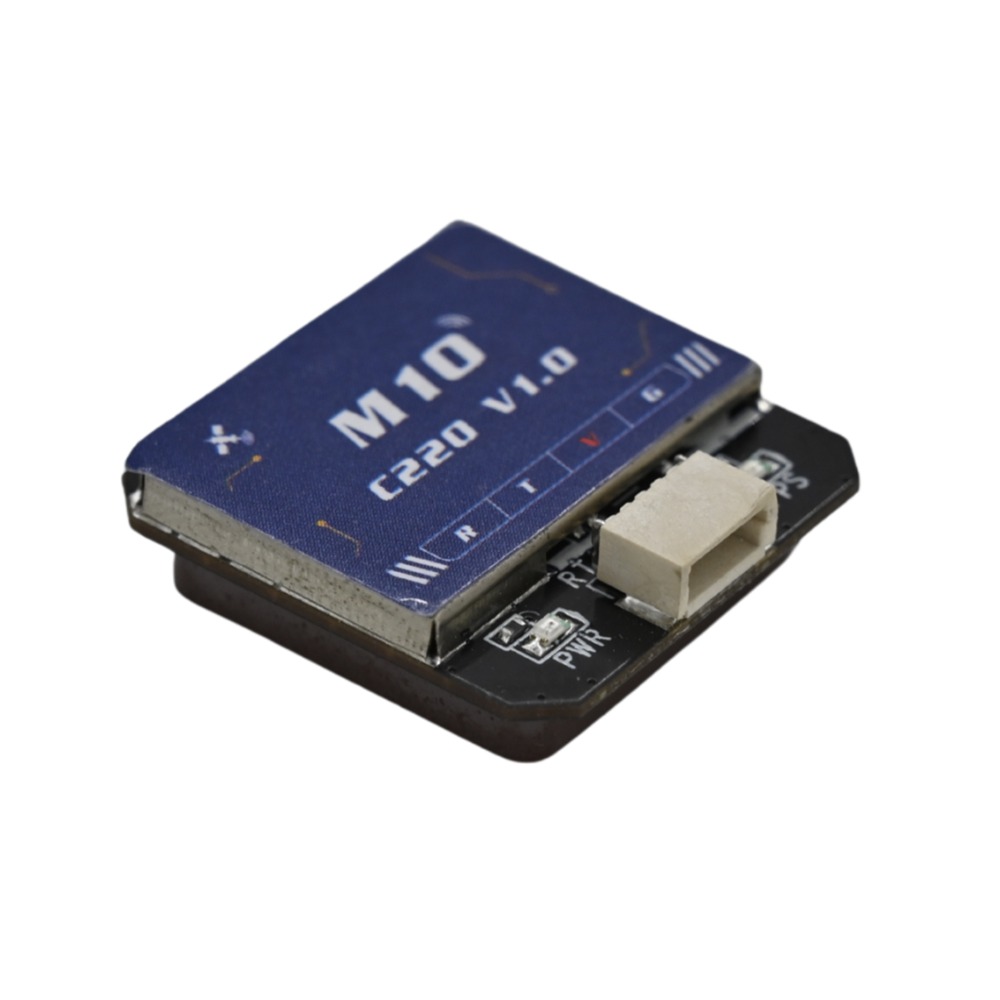

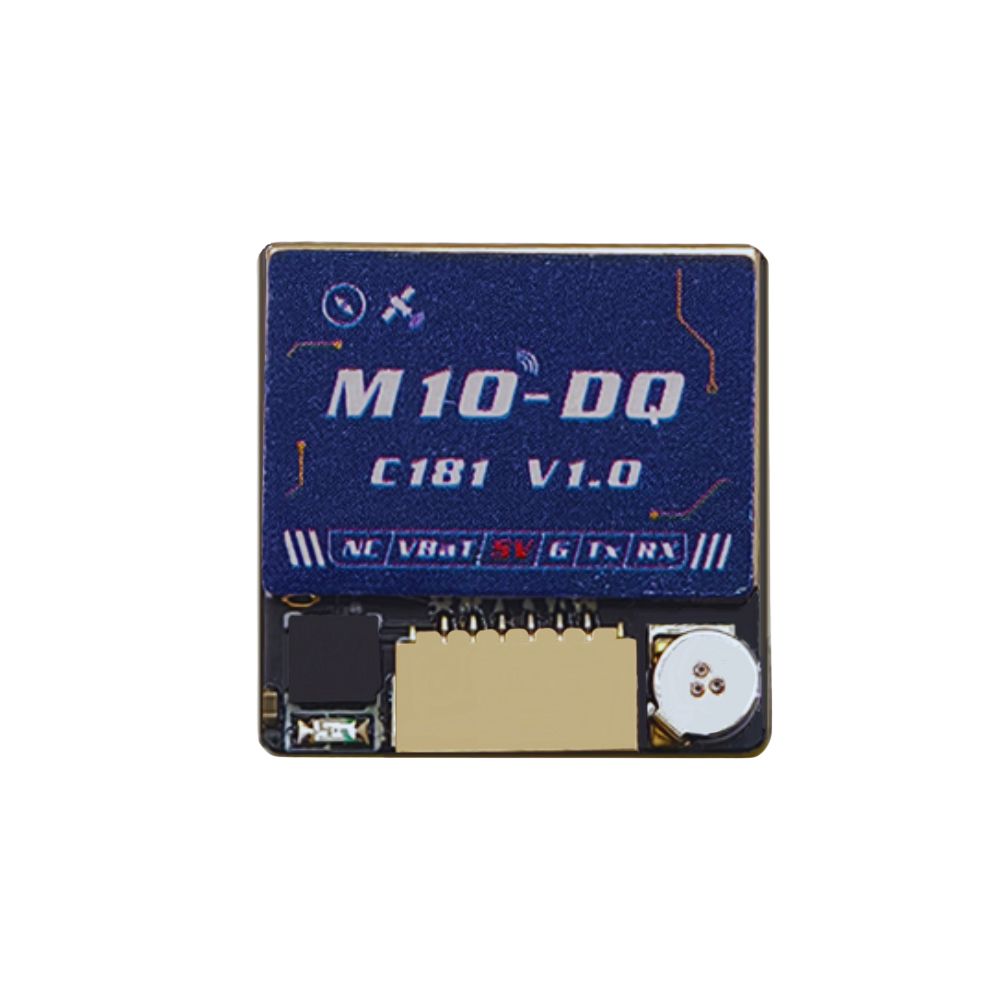

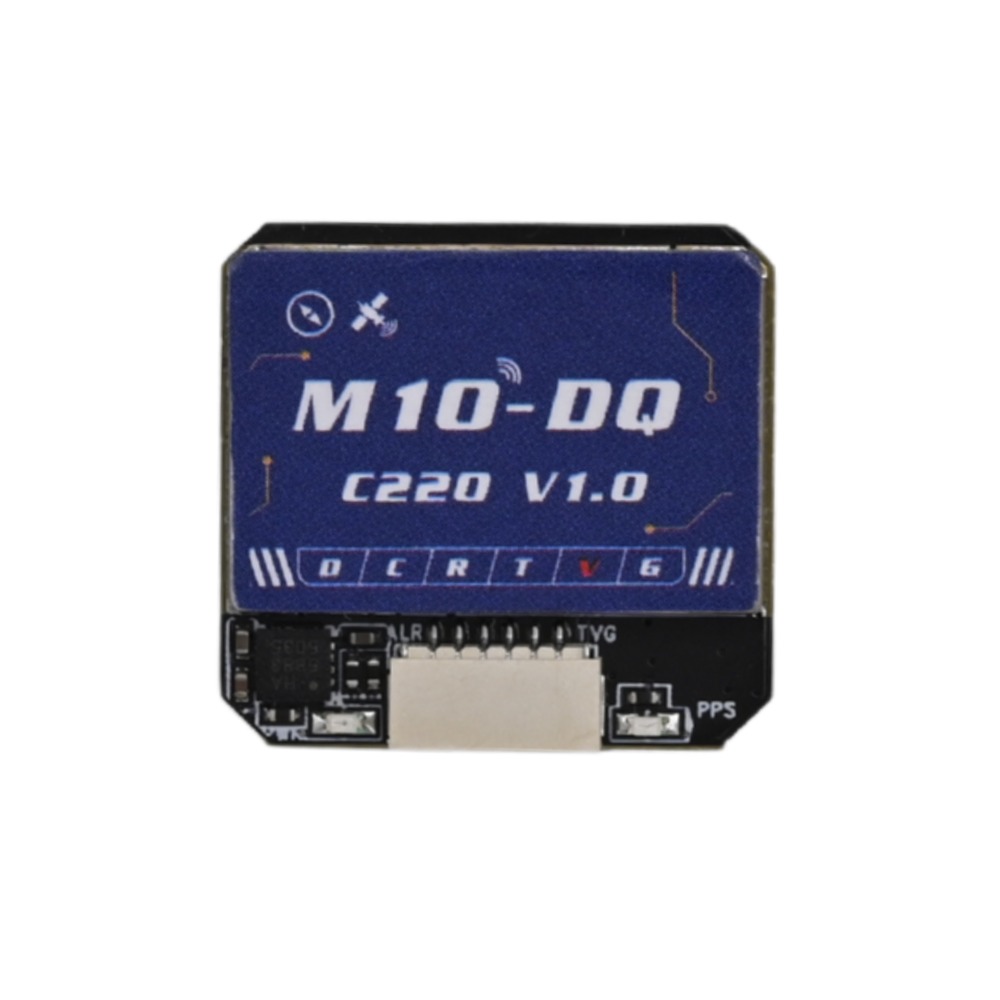

Model: HPXG M10-C220  V1.0 / HPXG M10-C181 V1.0 / HPXG M10-DQ C220  V1.0 /HPXG M10-DQ C181  V1.0

GPS chip: u-blox M10050

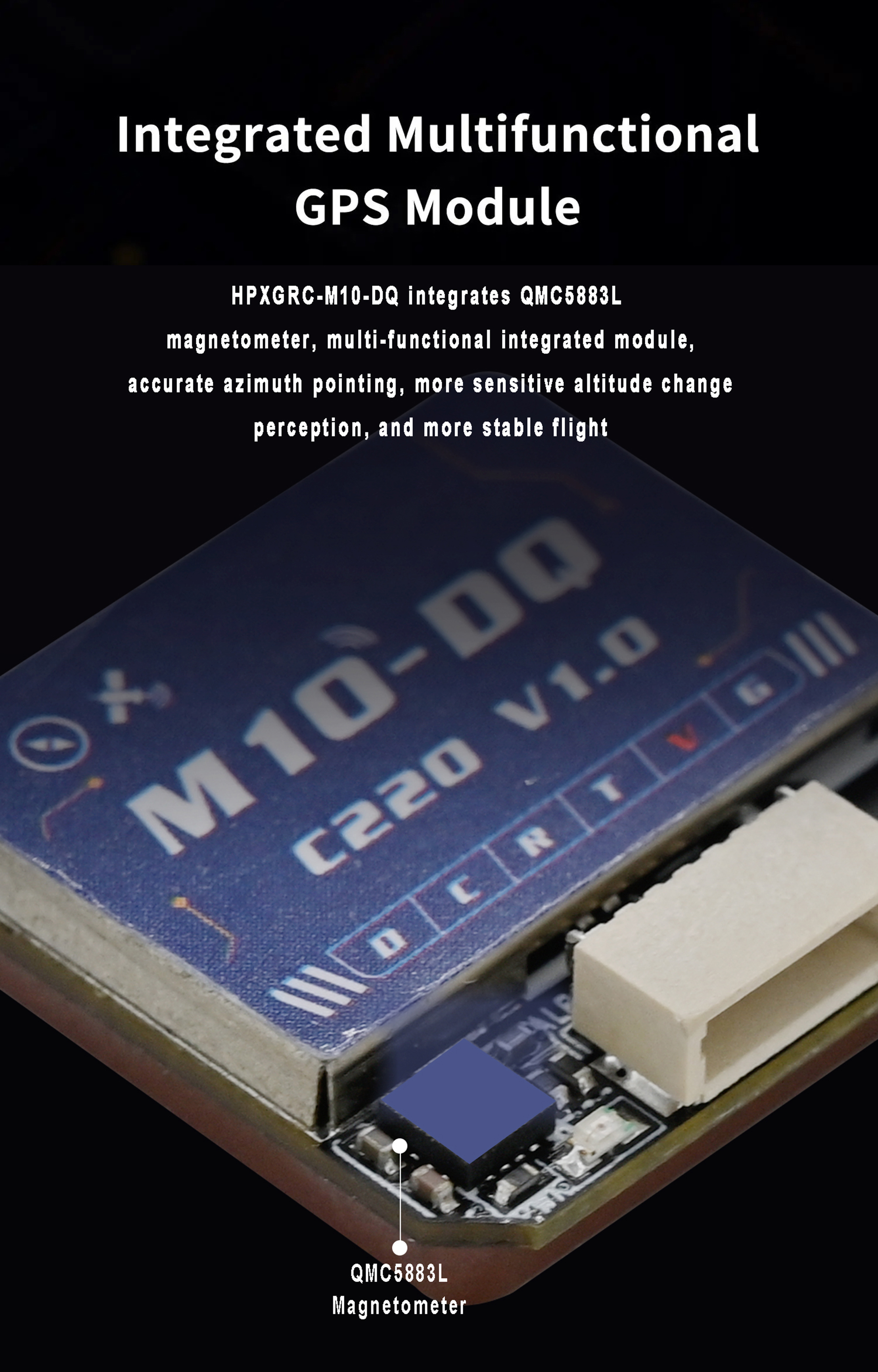

Magnetometer:HPXG-M10: No / HPXG-M10-DQ:QMC5883L

Input voltage: 3.3V-5V

Receiving frequency: GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,QZSS L1

Operating mode: GPS+BDS+LALILEO+QZSS+SBAS joint positioning

Channel: 72ch

Navigation satellites: Up to 32 pieces

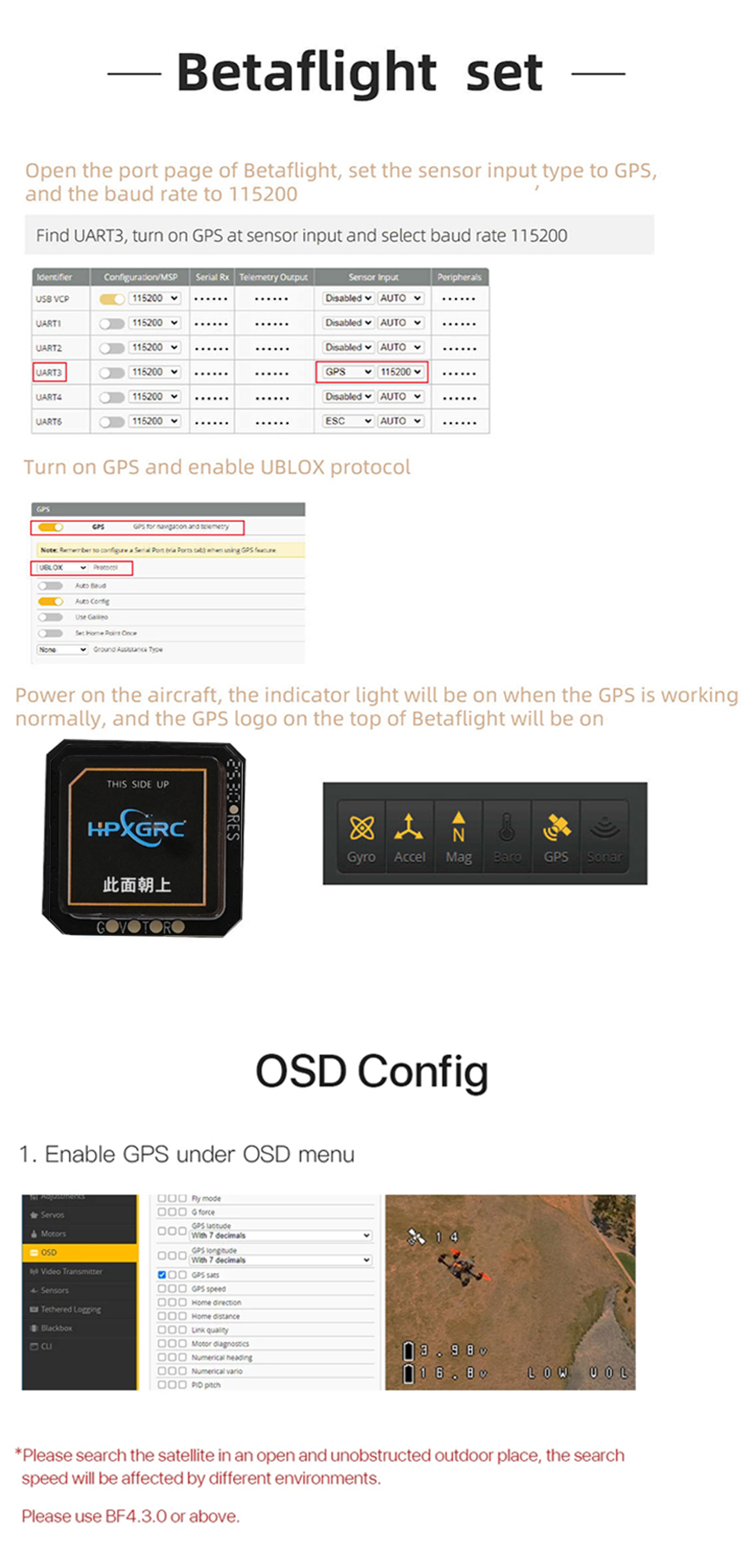

Baud rate: 115200bps

Output protocol: NMEA UBX (dual protocol)

Output Frequency: 10Hz

Speed Accuracy: 0.05 m/s

Horizontal positioning accuracy: 2D ACC1.5m(Weather)

Timing accuracy: 30 ns

Receiver sensitivity: Trace-162dBm, Capture-160dBm

Dynamic characteristics: Max Height: 50000m, Max Speed: 500m/s

Maximum acceleration: 4G

Battery :Bilid-in

Operating temperature: -40℃-+85℃

Storage temperature: -40℃-+105℃

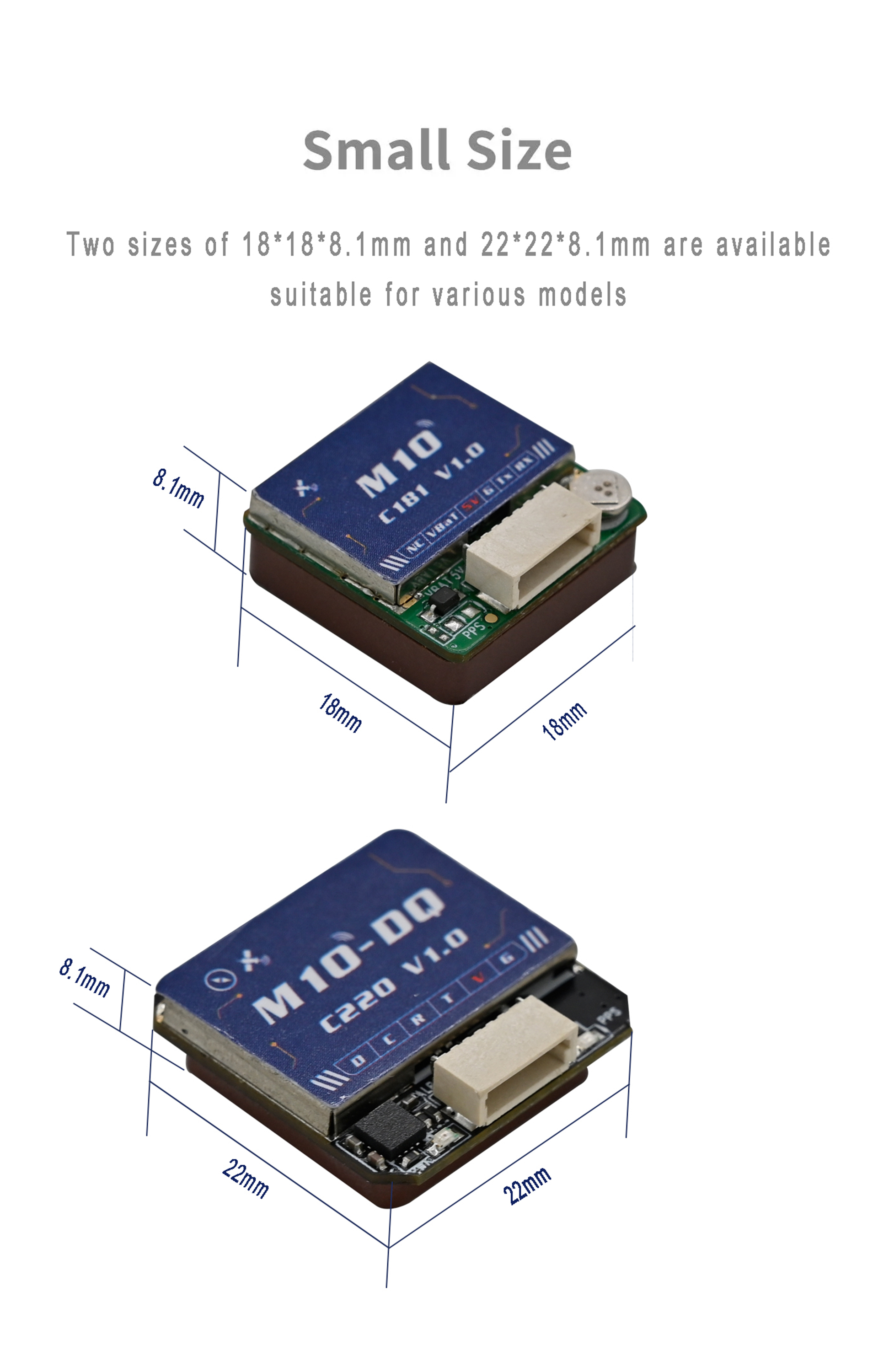

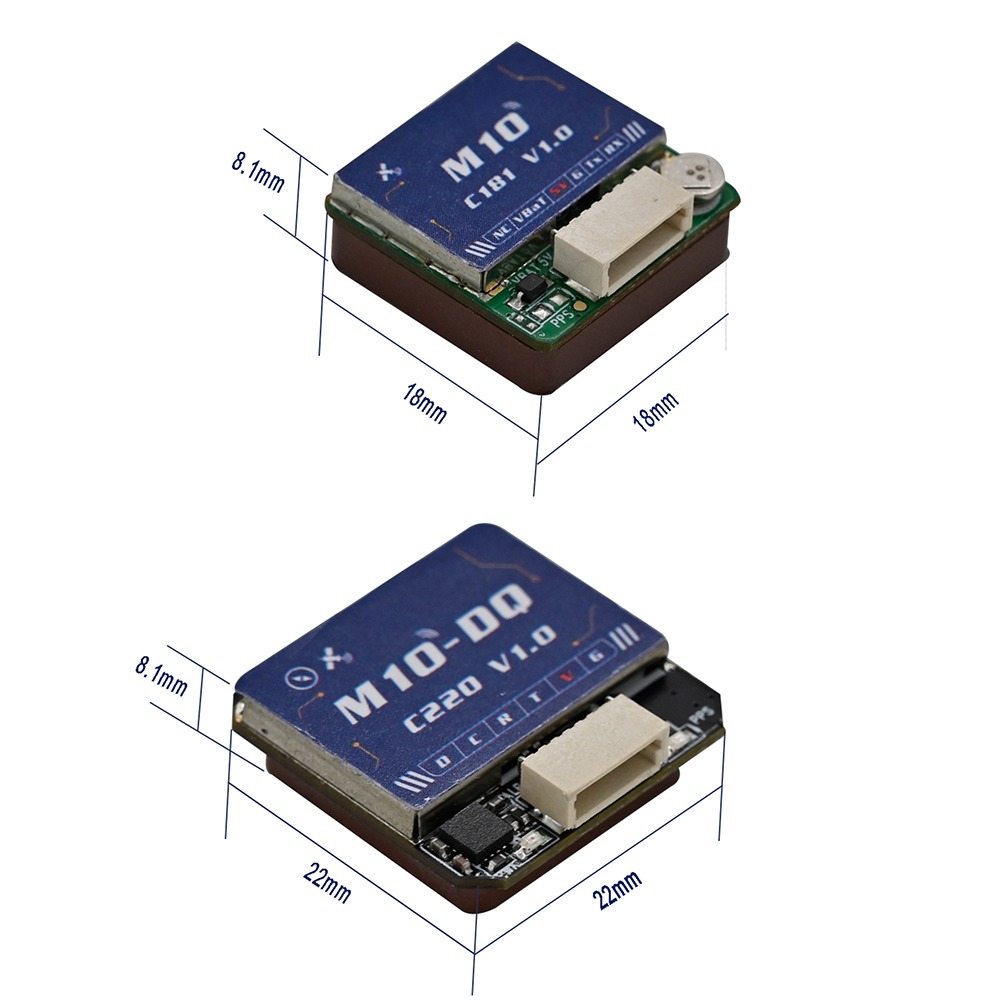

Dimensions：HPXG-M10 C181/HPXG-M10 DQ C181 :18MM*18MM*8.1MM  / HPXG-M10 C220/HPXG-M10DQ C220: 22*22M*8.1MM

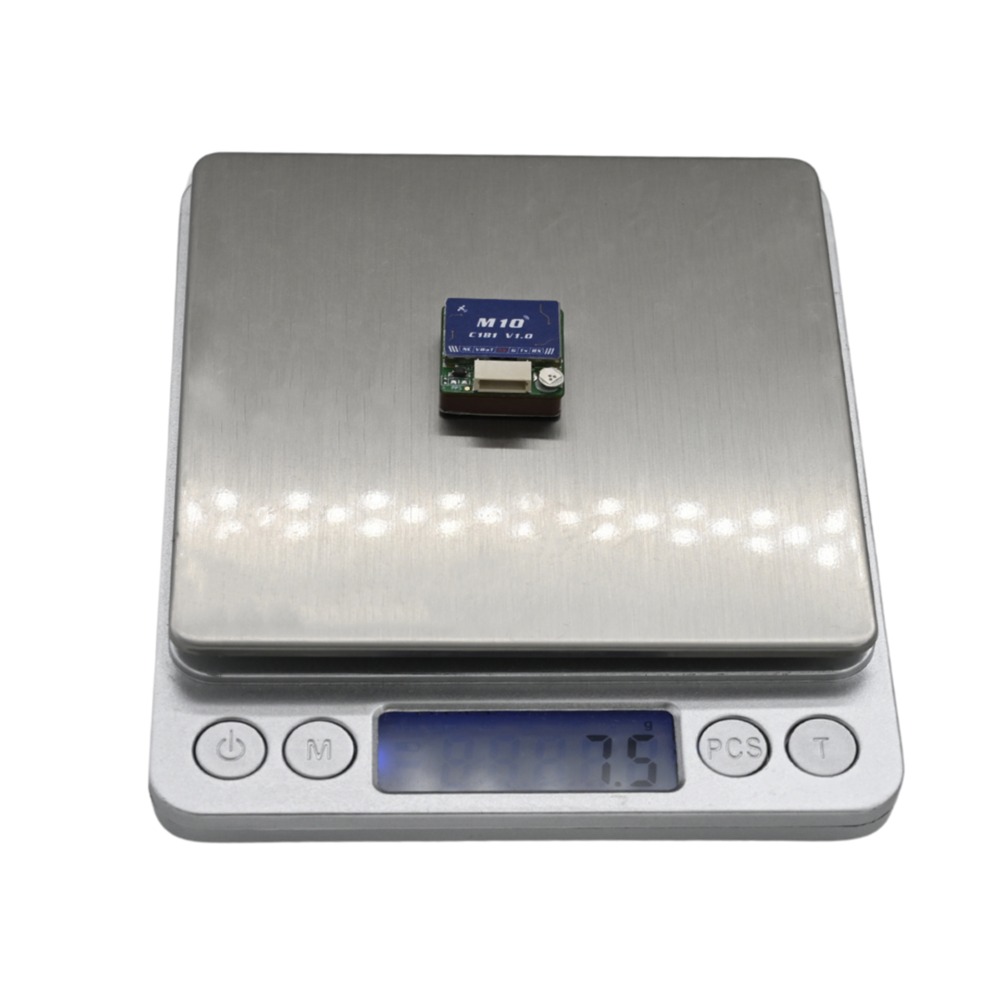

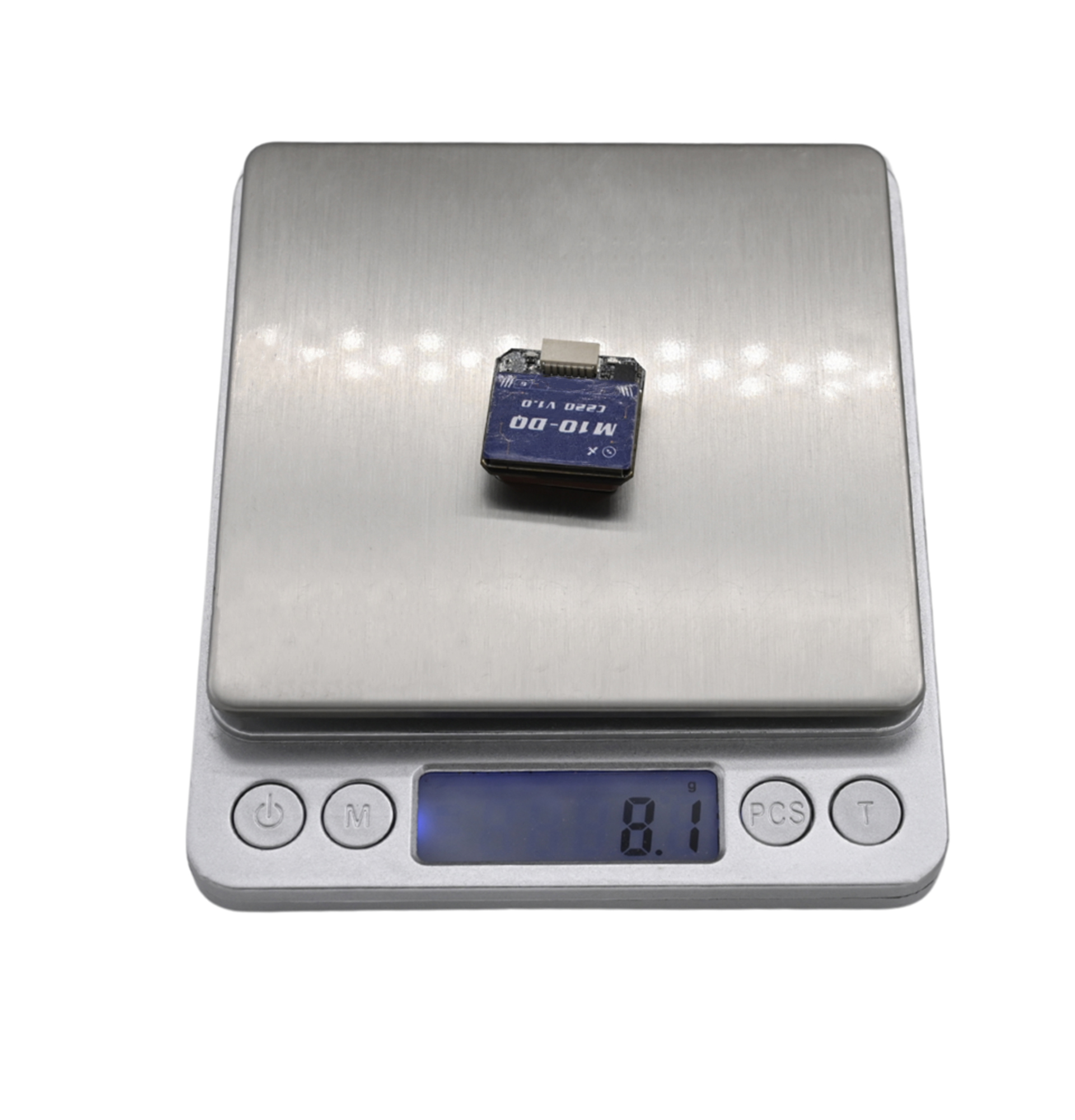

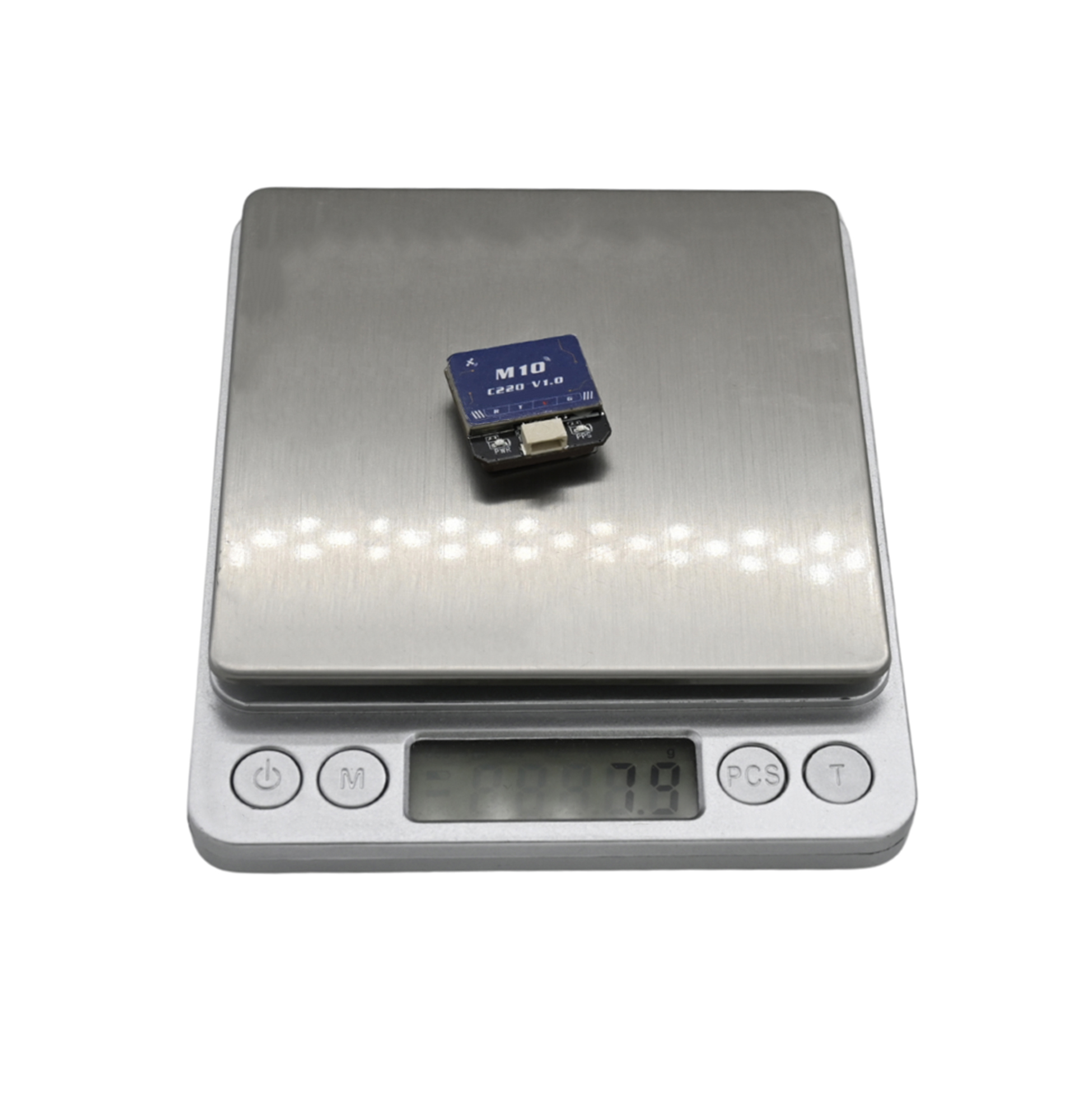

Weight: HPXG-M10 C181:7.5g / HPXG-M10 DQ C181:8g /HPXG-M10 C220:7.9g /HPXG-M10DQ C220 8.1g

Feature

1.M10 series chip

2.Fast positioning speed

3.GPS+BDS+Galileo+QZSS+SBAS joint positioning

4.Up to 32 satellites

5.Stable connection quality

6.Unique appearance design

7.Small size and light weight

8.Built-in Flash chip and Farad capacitor

9.Onboard indicator light, easy to use

10.Integrated magnetometer+barometer,integrated module (HPXG-M10-DQ)

Includes

1 x GPS module

1 x Terminal wire

1 x Heat shrink tubing
