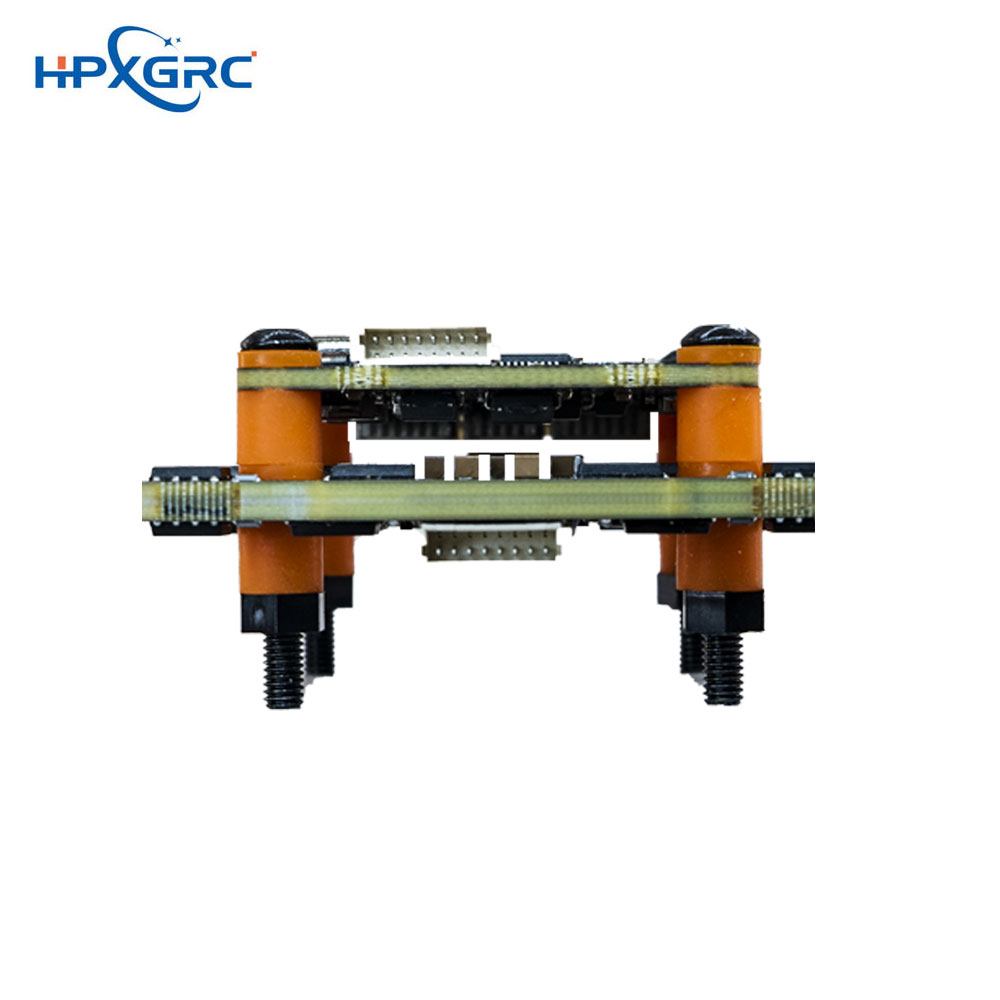

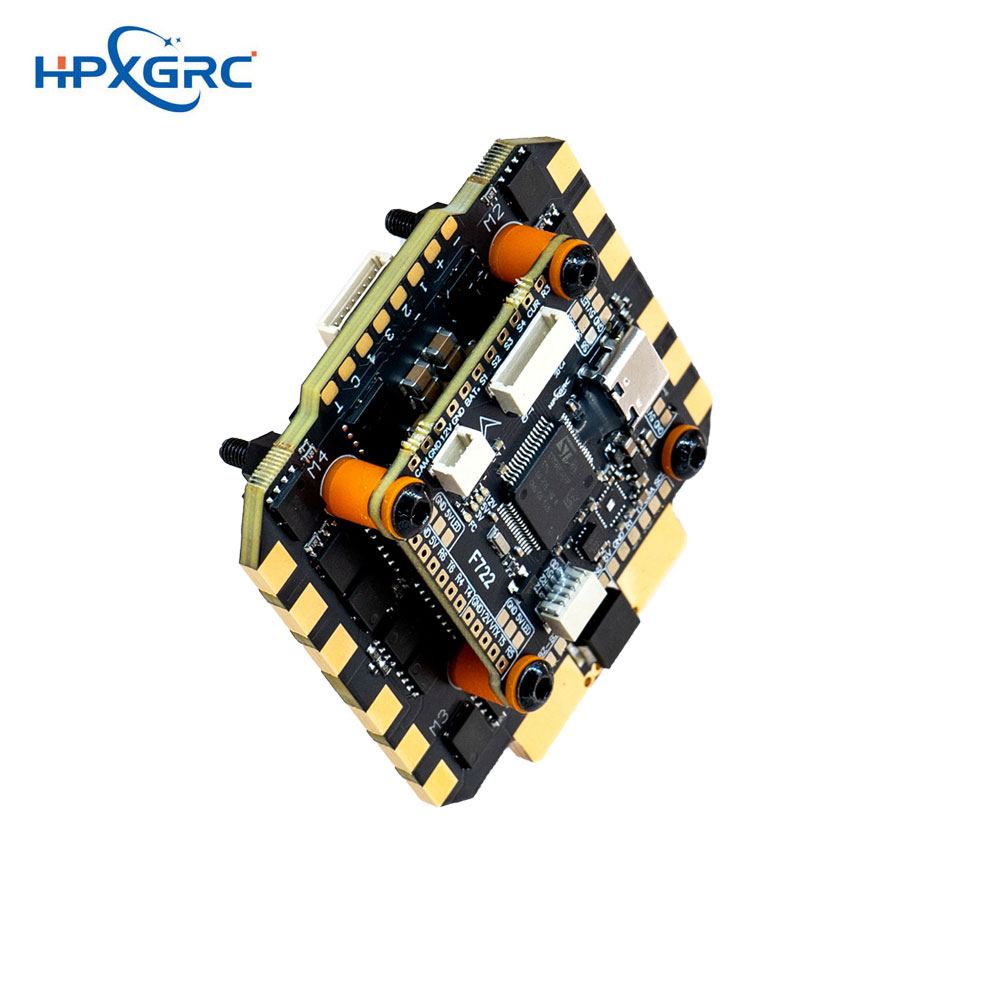

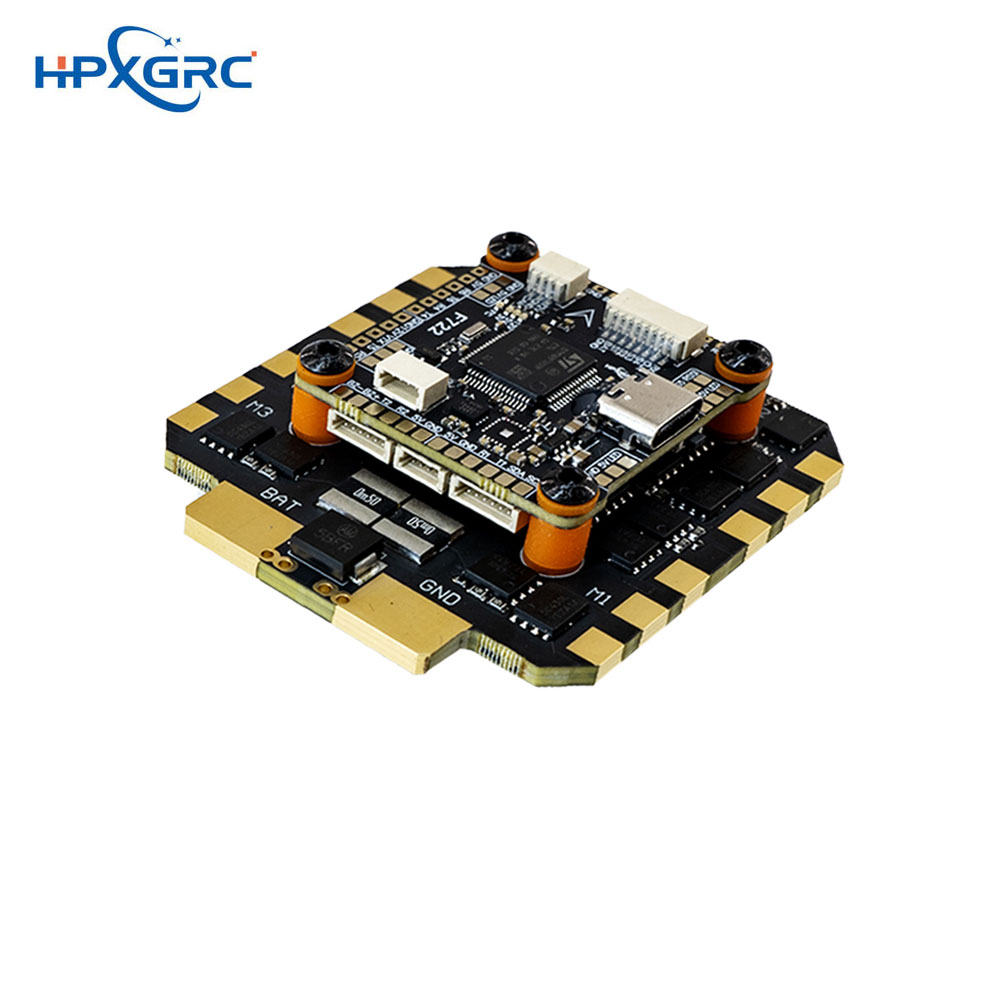

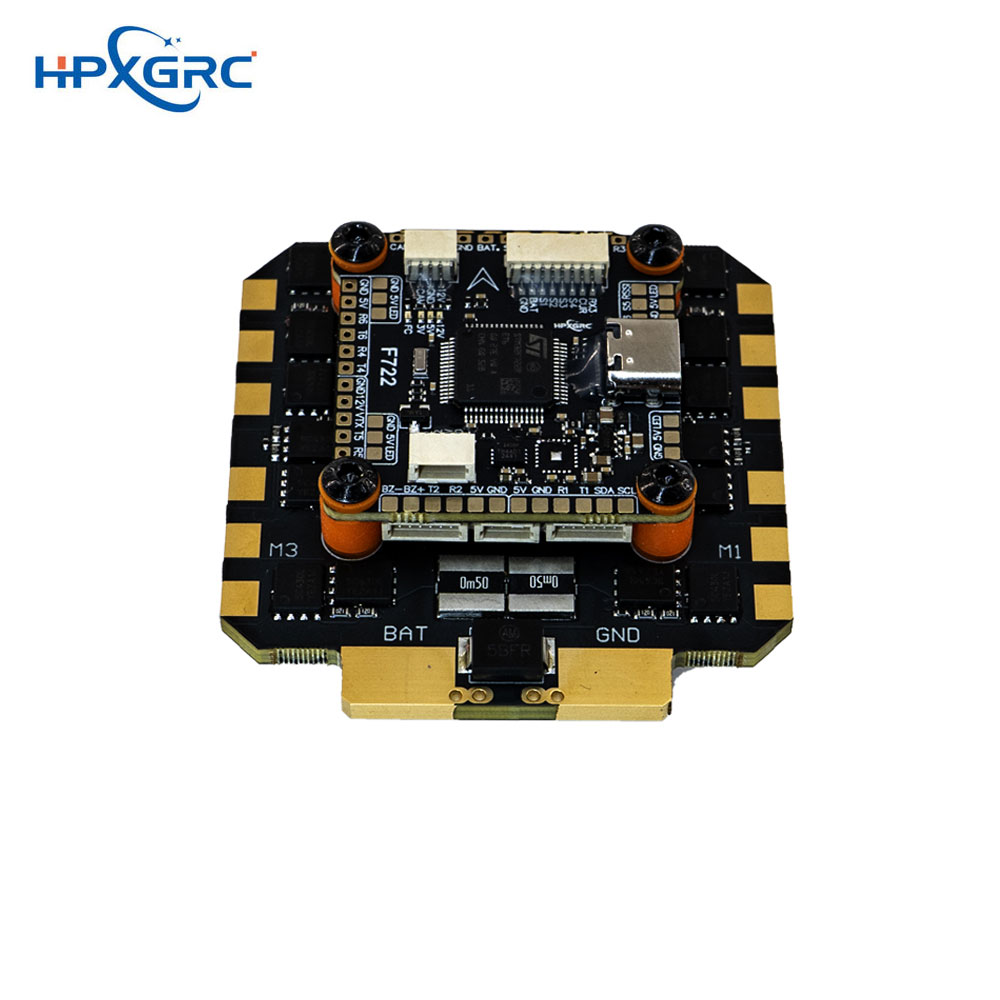

HPXGRC F722 BL32 80A 100A Stack

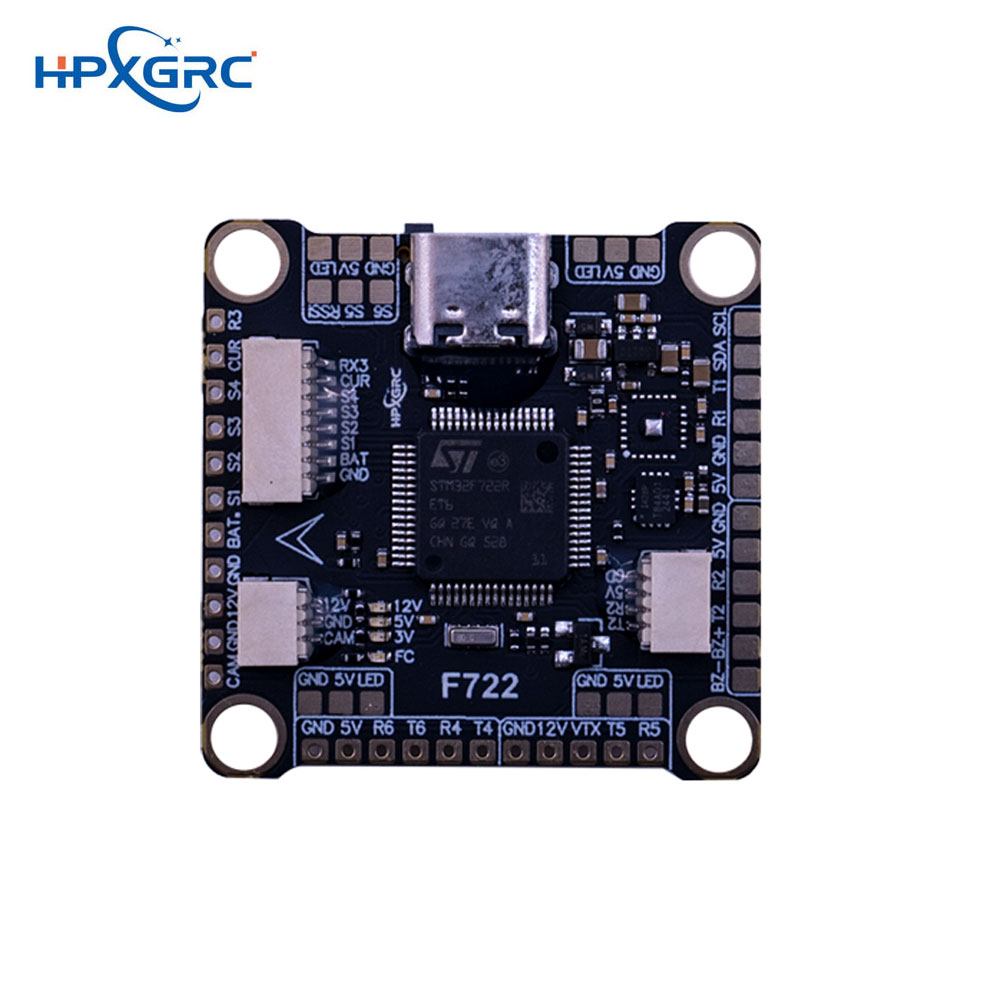

HPXGRC F722 Flight Controller

Flight Control Firmware: BETAFLIGHT/INAV

Firmware Name: DAKEFPVF722X8

Main Control Chip: STM32F722RET6

Barometer: SPL06-001

Gyroscope: ICM42688P

OSD Chip: AT7456E

USB Interface: Type-C

Black Box : 16MB

Digital Sky Terminal: Supports DJI/Vista

Motor Output: 8CH

Direct Plug Without Soldering Port: Receiver 4P / Analog camera 3P / Analog video transmission 4P / Digital video transmission 6P / Brushless ESC 12P

LED Light Strip: Supports X4

Weight: 8g

Buzzer: Supported

Dimensions: 36mm x 36mm

Receiver Protocol: ELRS/CRSF/S.BUS/Frsky/Futabafysky/TBs Crossfre/DSMX

Installation Hole Position: 30.5*30.5mm

General Serial Port: 5CH

Output Power: 3.3V/1A, 5V/2.5A, 12V/3A RSSGN

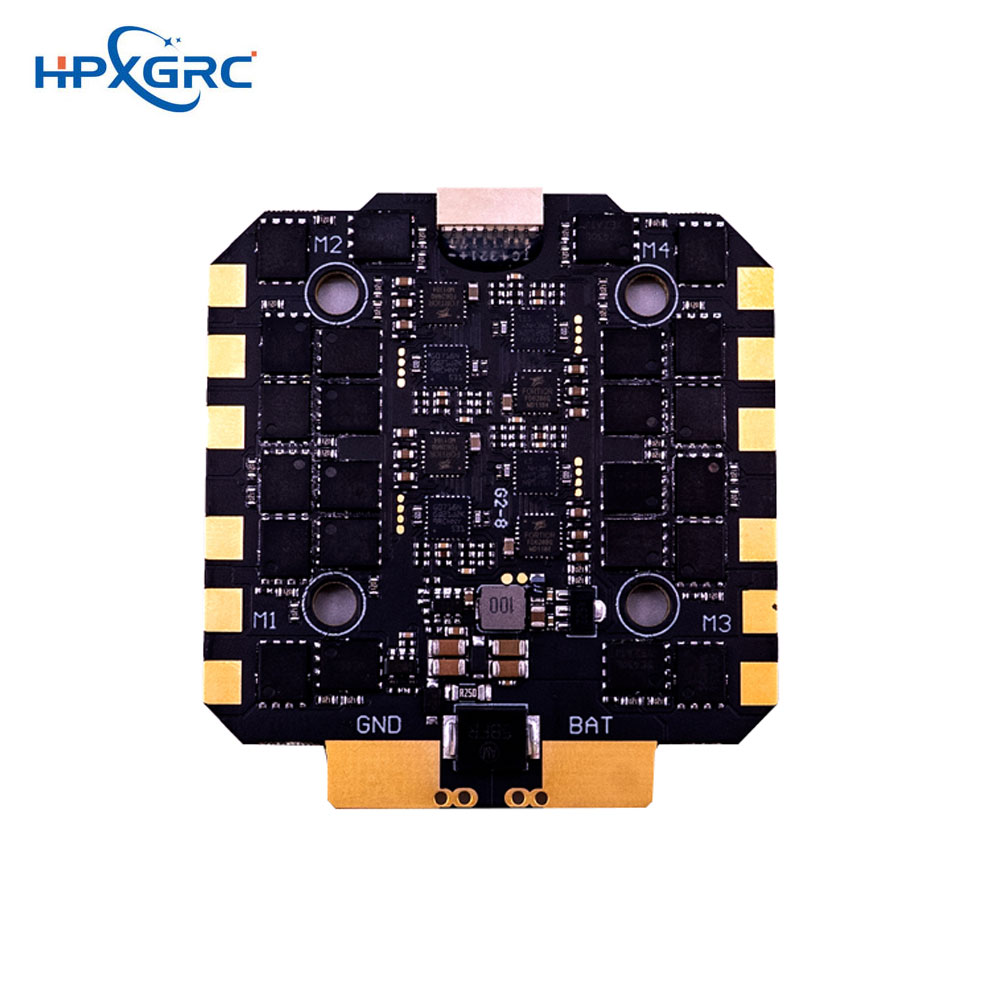

HPXGRC BLHeli-32 8S 80A ESC

ESC firmware：BLHeli-32

Firmware Version：BLHeli-32.9

MCU：STM32G071G8U6N

MOS Transistor : ON5C430NL

Continuous Maximum Current : 80A X4

Peak Current : 85A X4-10S

TVS : Have

Electrolytic Capacitor : 50V 4700uF Low ESR Capacitor x1

Motor Protocol : Dshot300/Dshot600/PWM/Bi-directional Dshot

Battery Input : 3-8S

Ammeter : Support / Ammeter ratio 120

Power Output : VBAT

Dimensions : 56mm*59mm*7mm

Mounting Hole Position : 30.5mmx*30.5/M4

Weight : 30g

Operating Temperature : 20℃~+85C

Storage Temperature : 20°CC~+70°CC

Working Humidify : 20~95%

HPXGRC BLHeli-32 8S 100A ESC

ESC firmware：BLHeli-32

Firmware Version：BLHeli-32.9

MCU：STM32G071G8U6N

MOS Transistor : ON5C430NL

Continuous Maximum Current : 100A X4

Peak Current : 105A X4-10S

TVS : Have

Electrolytic Capacitor : 50V 4700uF Low ESR Capacitor x1

Motor Protocol : Dshot300/Dshot600/PWM/Bi-directional Dshot

Battery Input : 3-8S

Ammeter : Support / Ammeter ratio 120

Power Output : VBAT

Dimensions : 56mm*59mm*7mm

Mounting Hole Position : 30.5mmx*30.5/M4

Weight : 30g

Operating Temperature : 20℃~+85C

Storage Temperature : 20°CC~+70°CC

Working Humidify : 20~95%

HPXGRC BLHeli-32 8S 100A ESC

ESC firmware：BLHeli-32

Firmware Version：BLHeli-32.9

MCU：STM32G071G8U6N

MOS Transistor : ON5C430NL

Continuous Maximum Current : 100A X4

Peak Current : 105A X4-10S

TVS : Have

Electrolytic Capacitor : 50V 4700uF Low ESR Capacitor x1

Motor Protocol : Dshot300/Dshot600/PWM/Bi-directional Dshot

Battery Input : 3-8S

Ammeter : Support / Ammeter ratio 120

Power Output : VBAT

Dimensions : 56mm*59mm*7mm

Mounting Hole Position : 30.5mmx*30.5/M4

Weight : 30g

Operating Temperature : 20℃~+85C

Storage Temperature : 20°CC~+70°CC

Working Humidify : 20~95%
