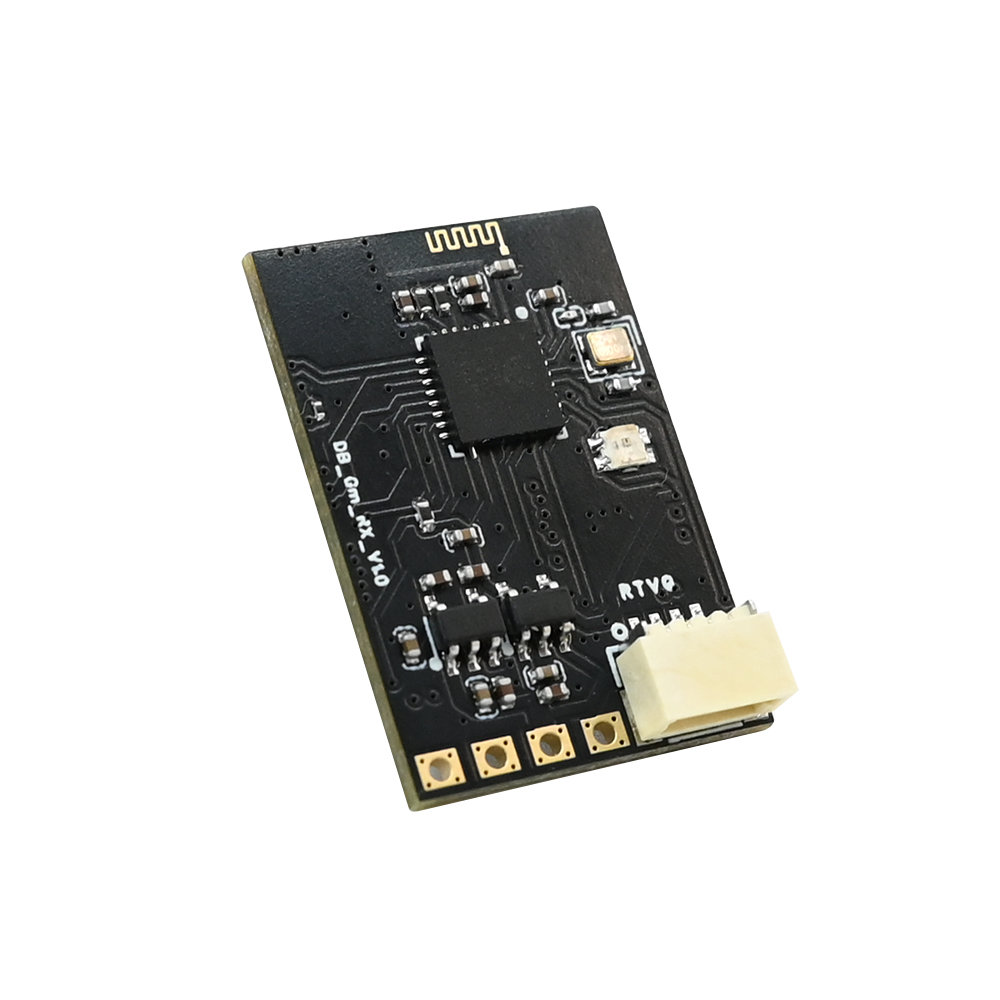

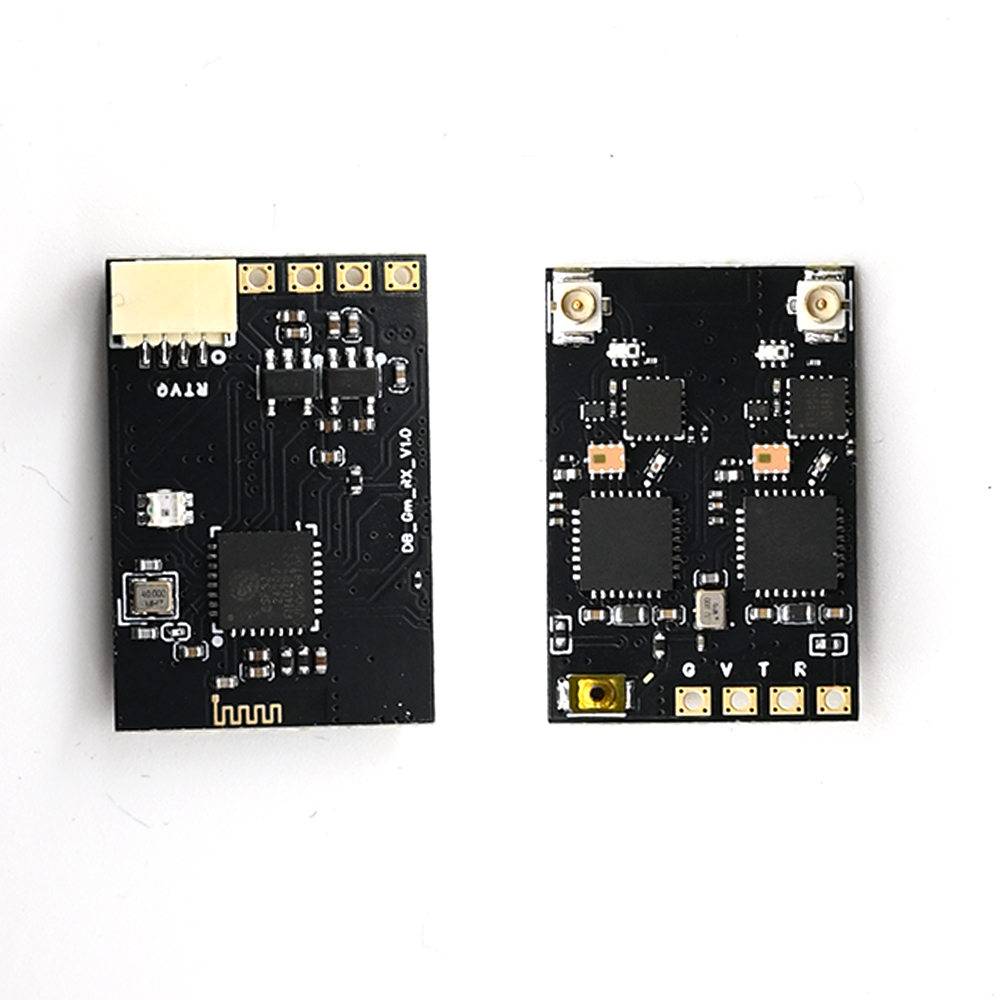

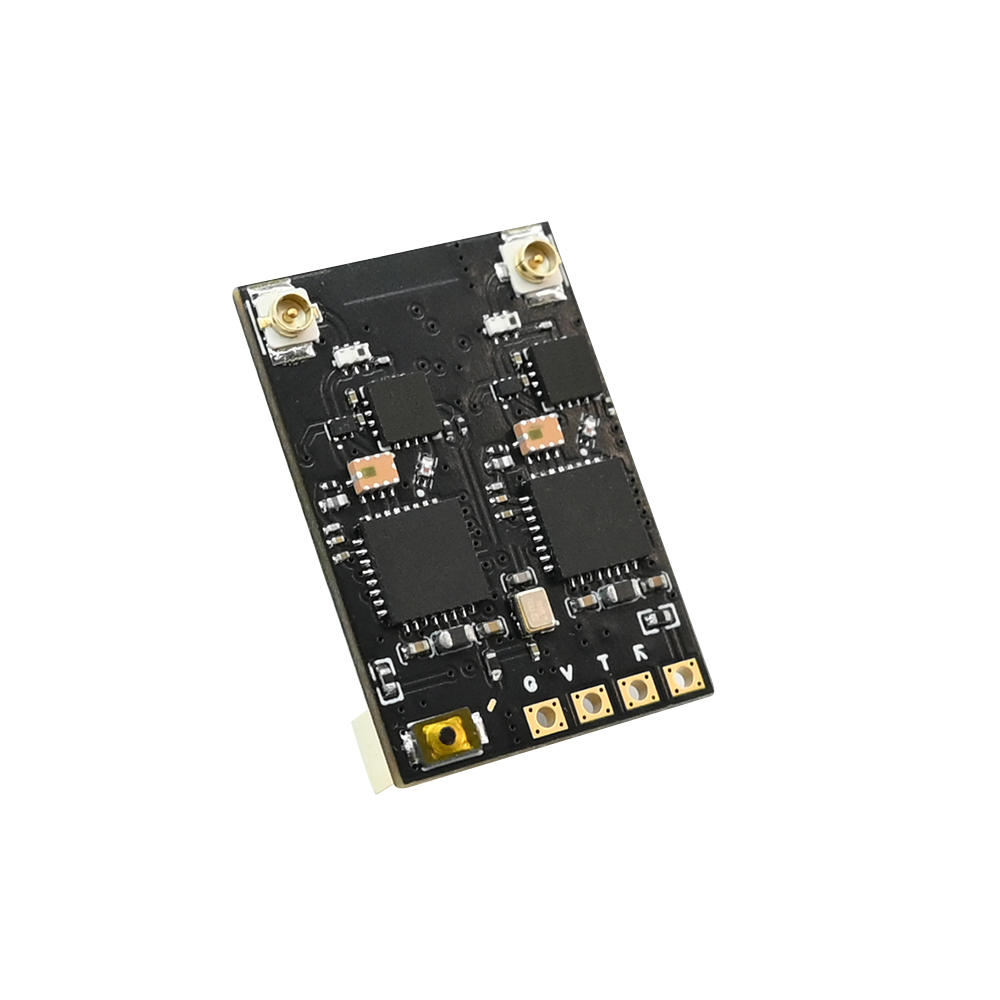

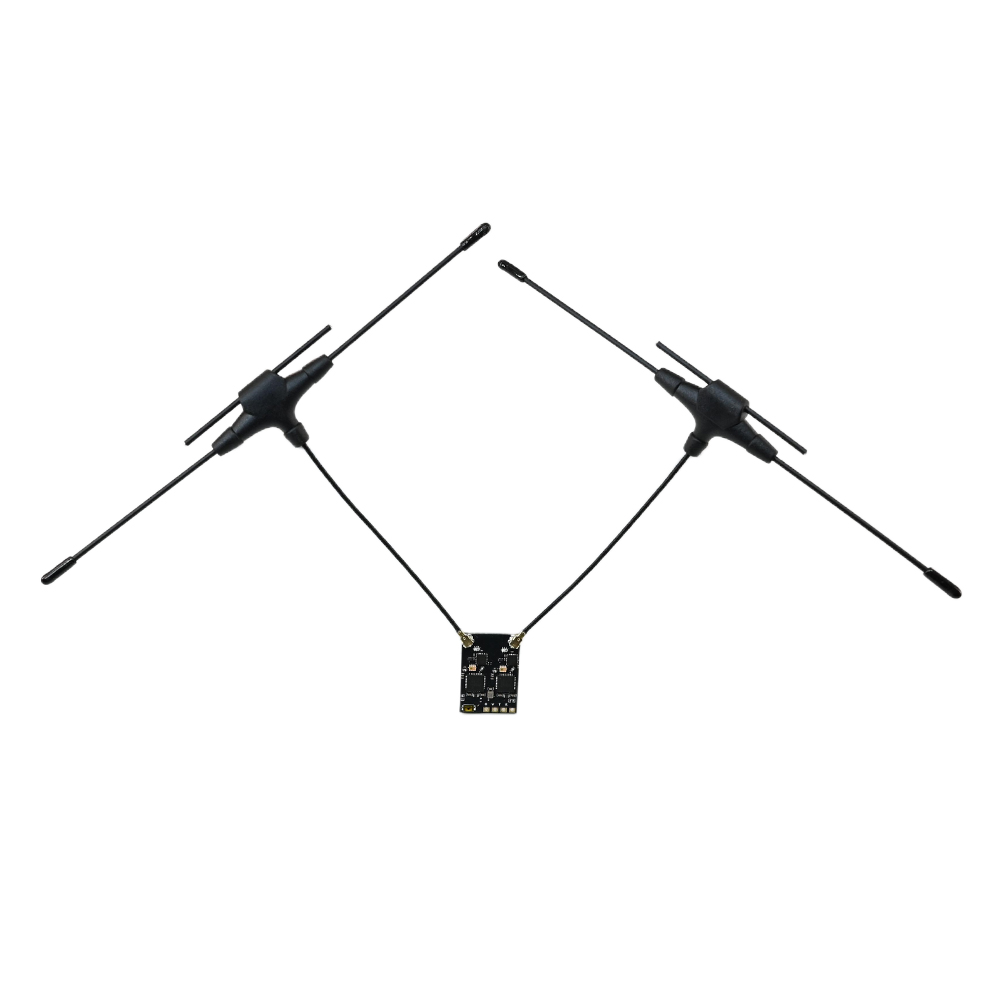

HPXGRC Super X dual ELRS Receiver

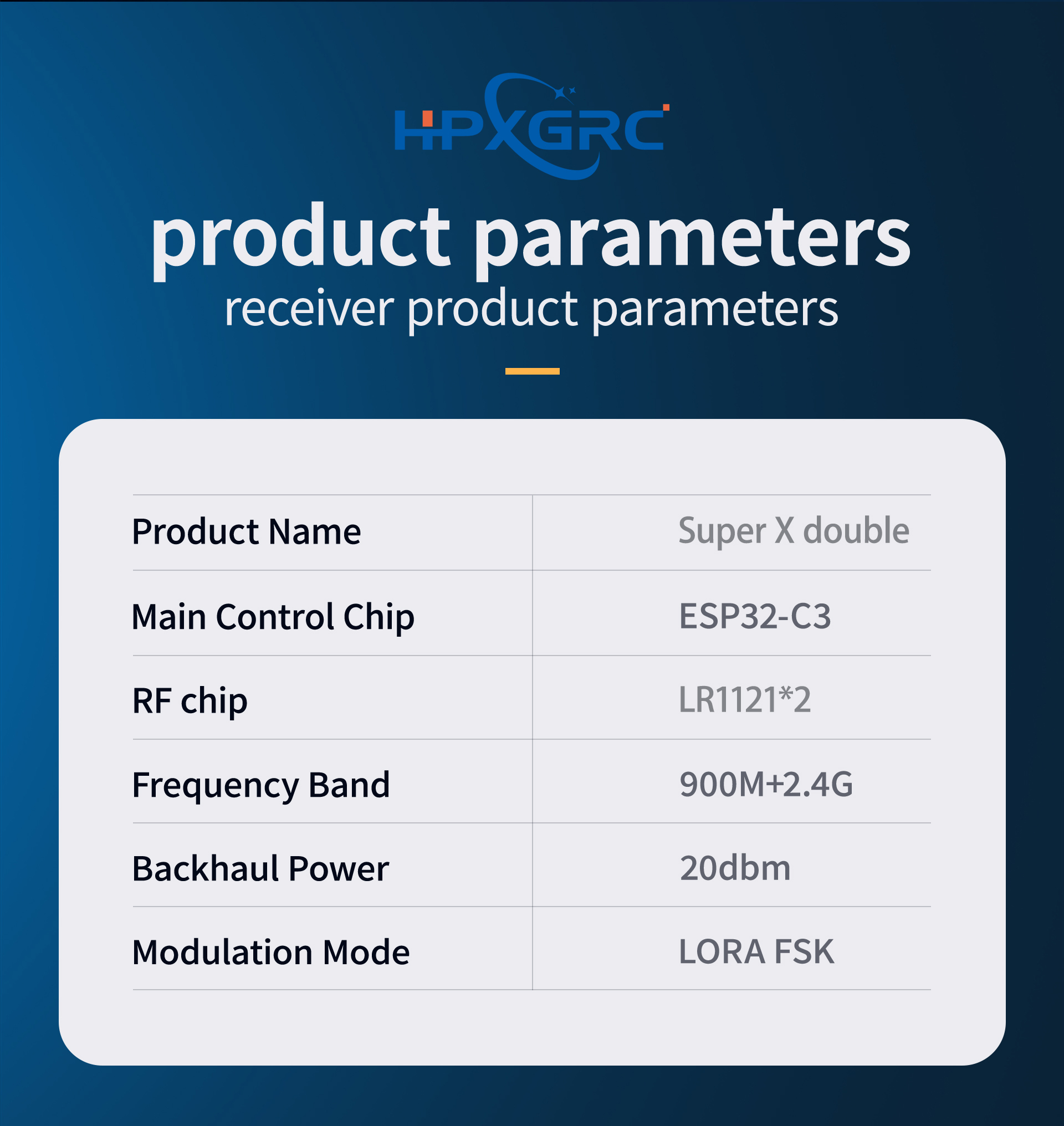

Product Specifications
Product Name:Super X double

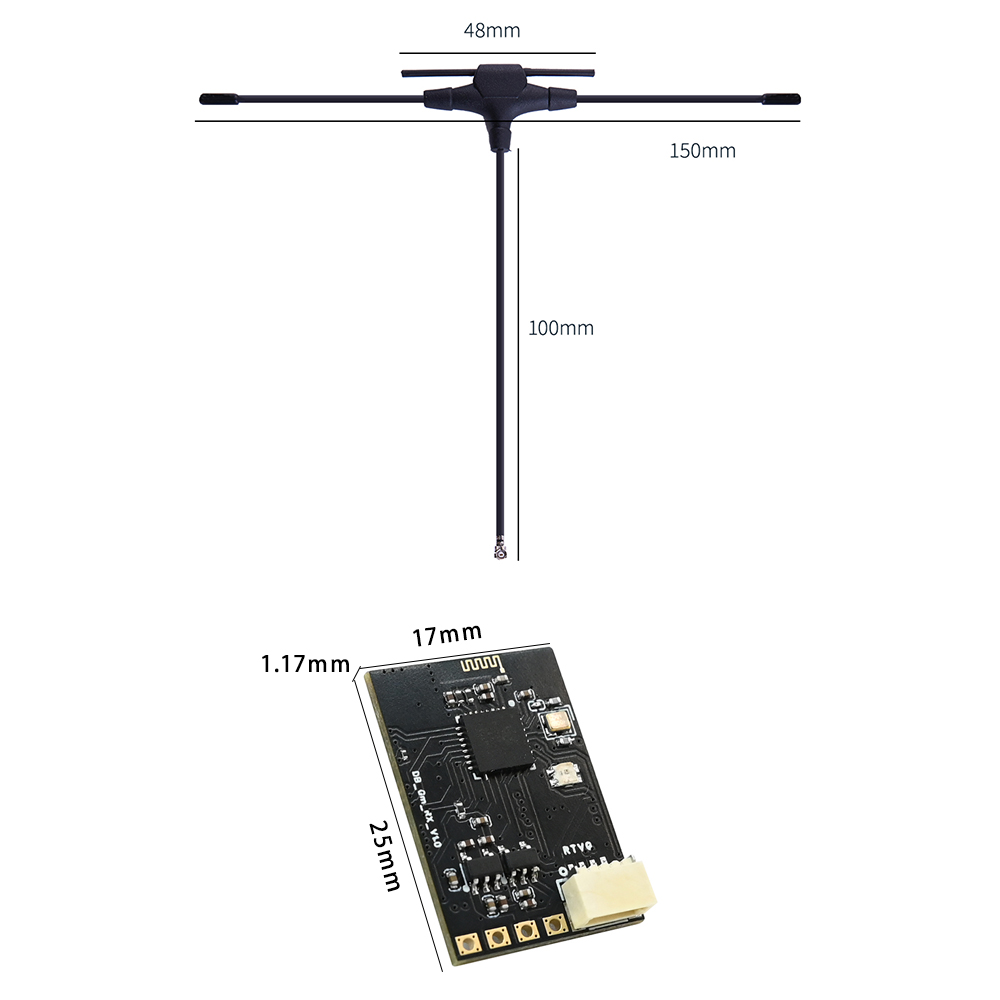

Size: 17mm * 25mm * 1.17mm

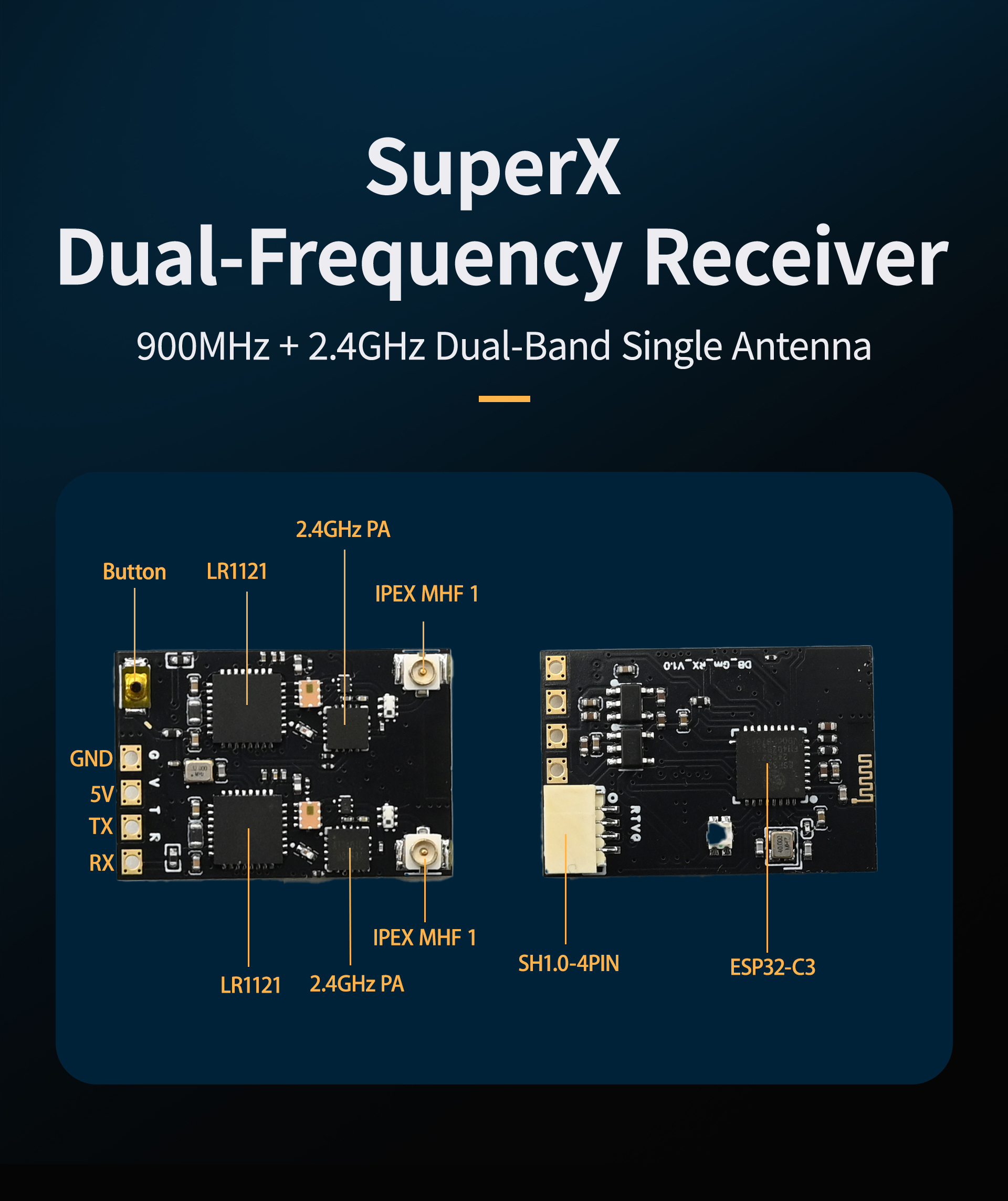

Main Control Chip:ESP32-C3
RF chip:LR1121*2

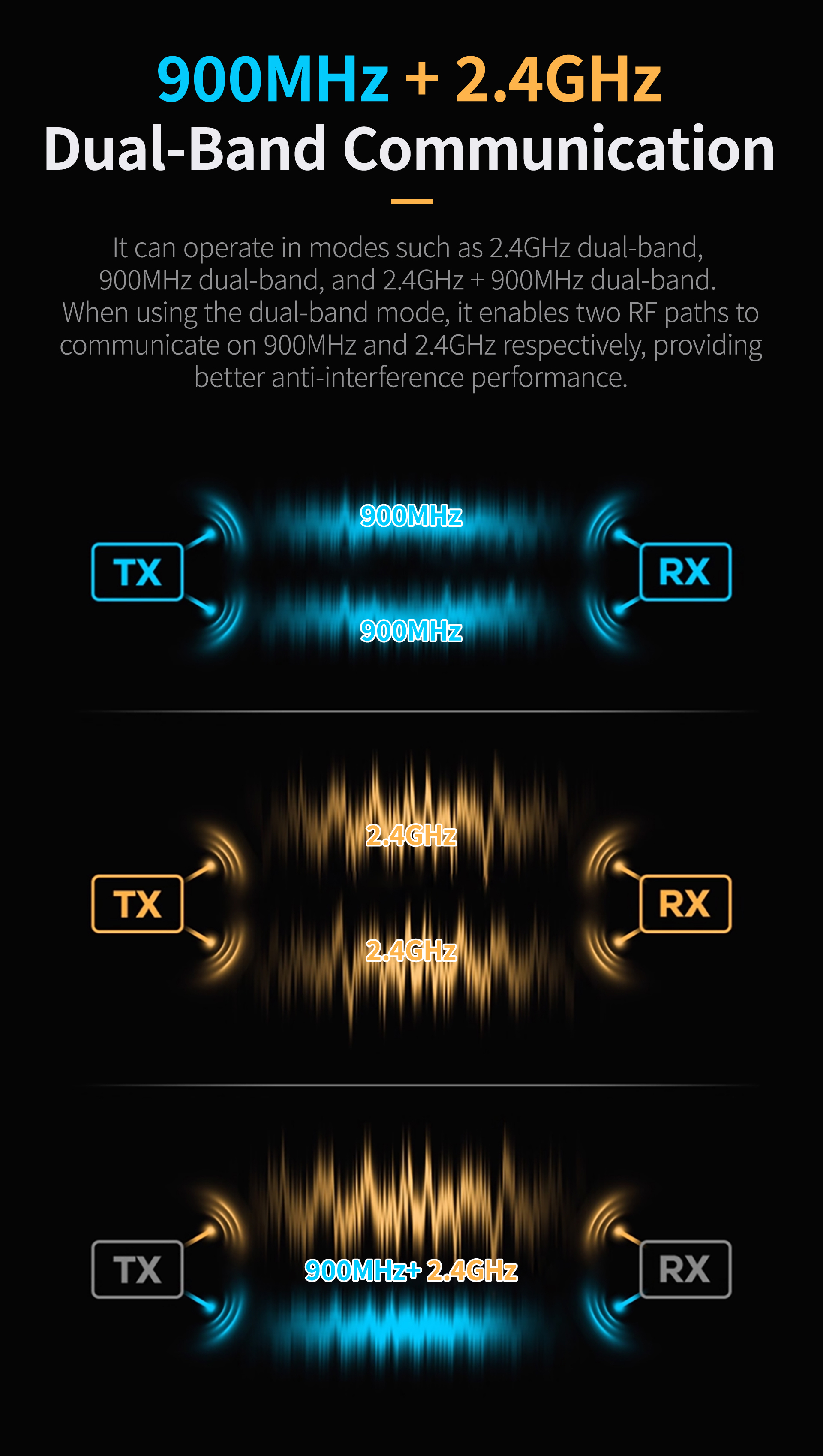

Frequency Band:900M+2.4G
Backhaul Power:20dbm
Modulation Mode:LORA FSK
Crystal oscillator: temperature compensated crystal oscillator

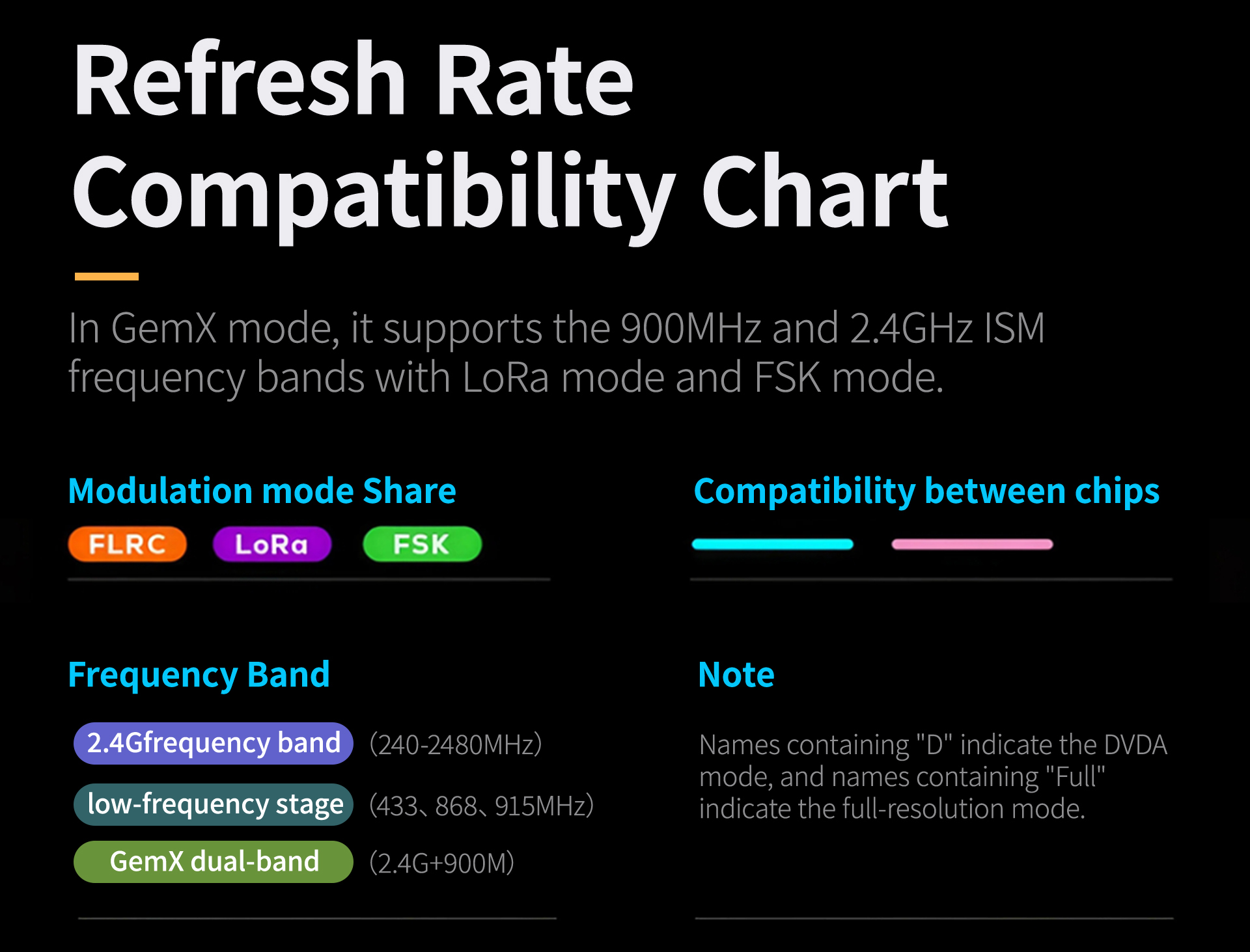

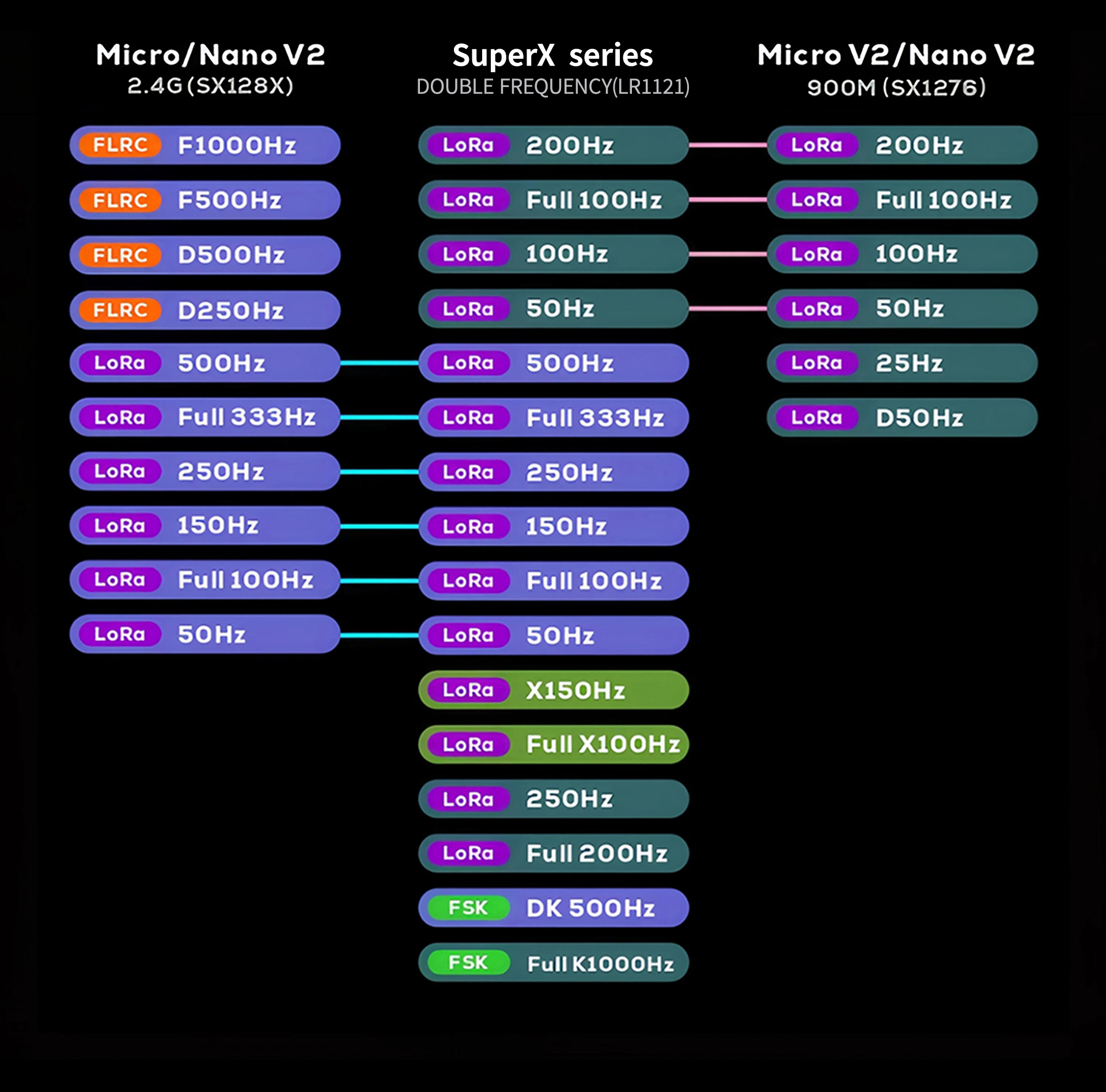

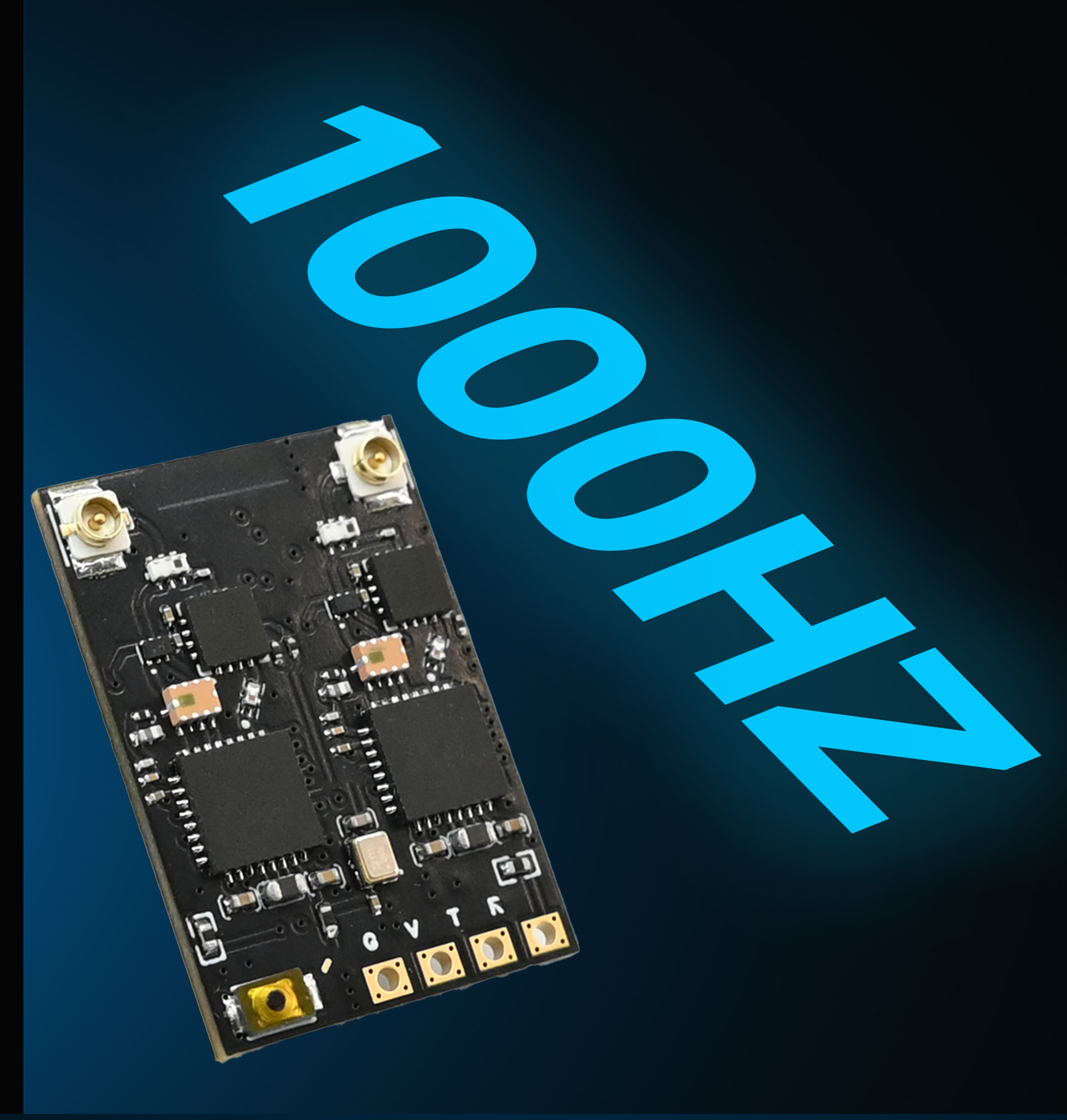

Refresh rate: 25Hz-1000Hz
Working voltage: 5V
Antenna interface: IPEX1
Firmware: Alz Dual Band RX V2
Return power: 100mW

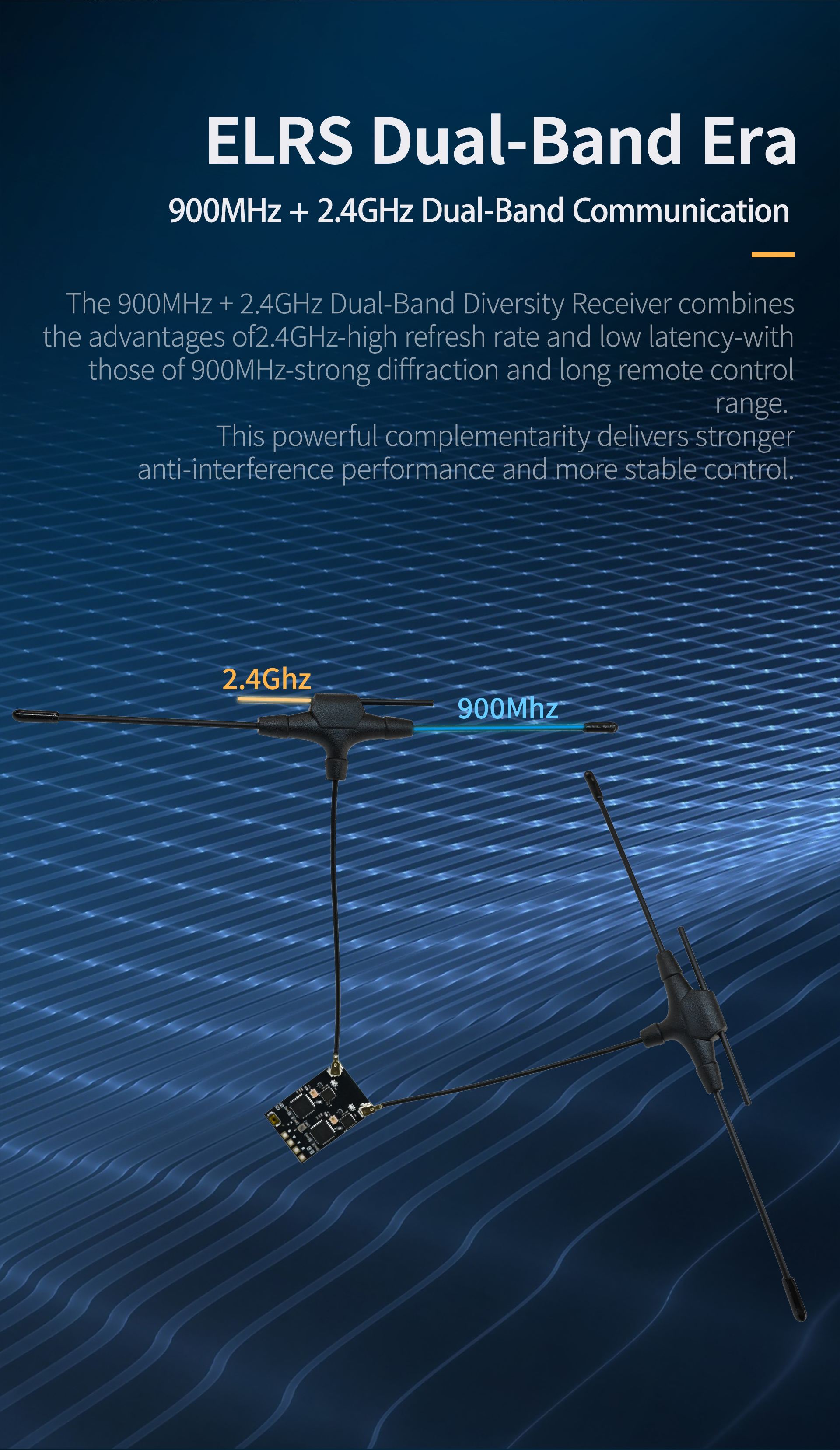

Working frequency band: 915MHz Gemini, 2.4GHz

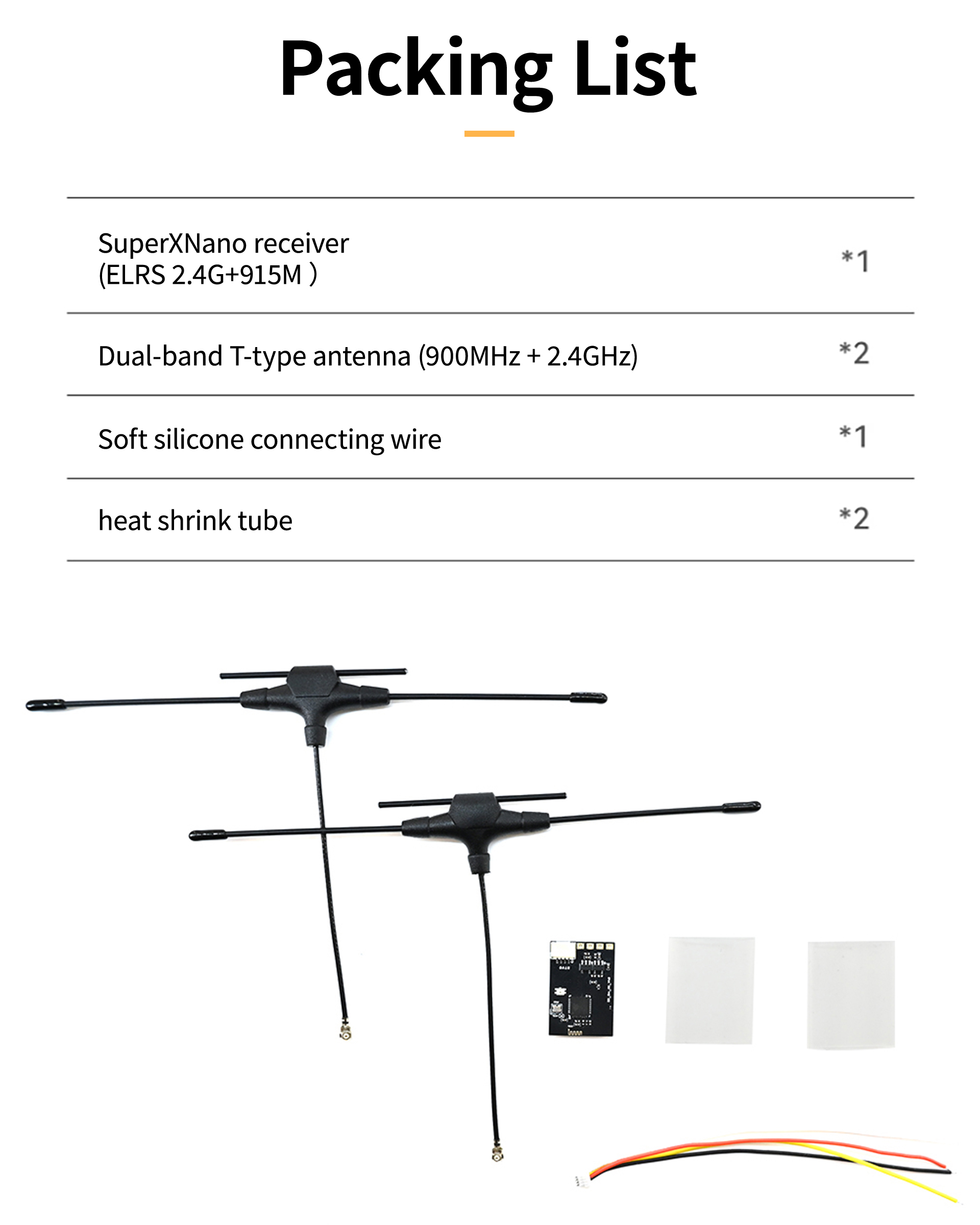

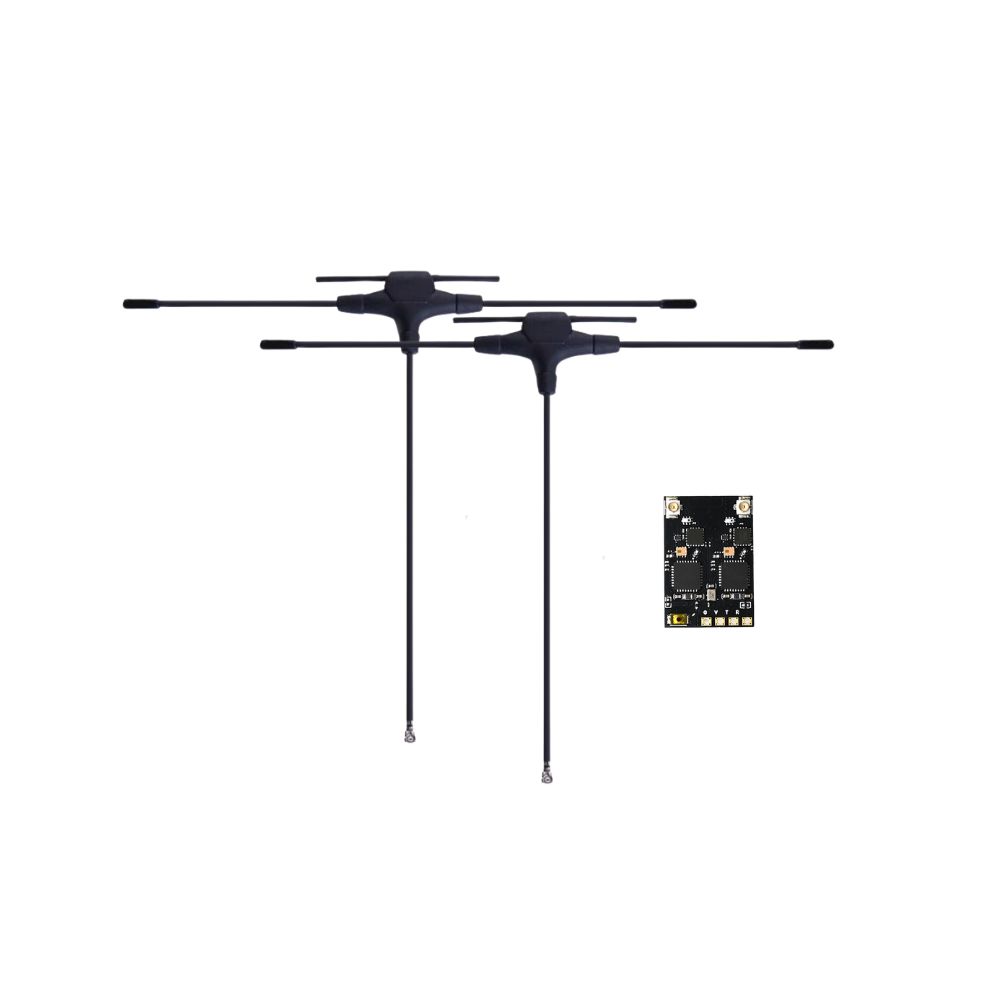

Packing List
1x HPXGRC Receiver
2x 915M/2.4G IPEX1 antenna
2x Heat shrink sleeve
4x Welding line
