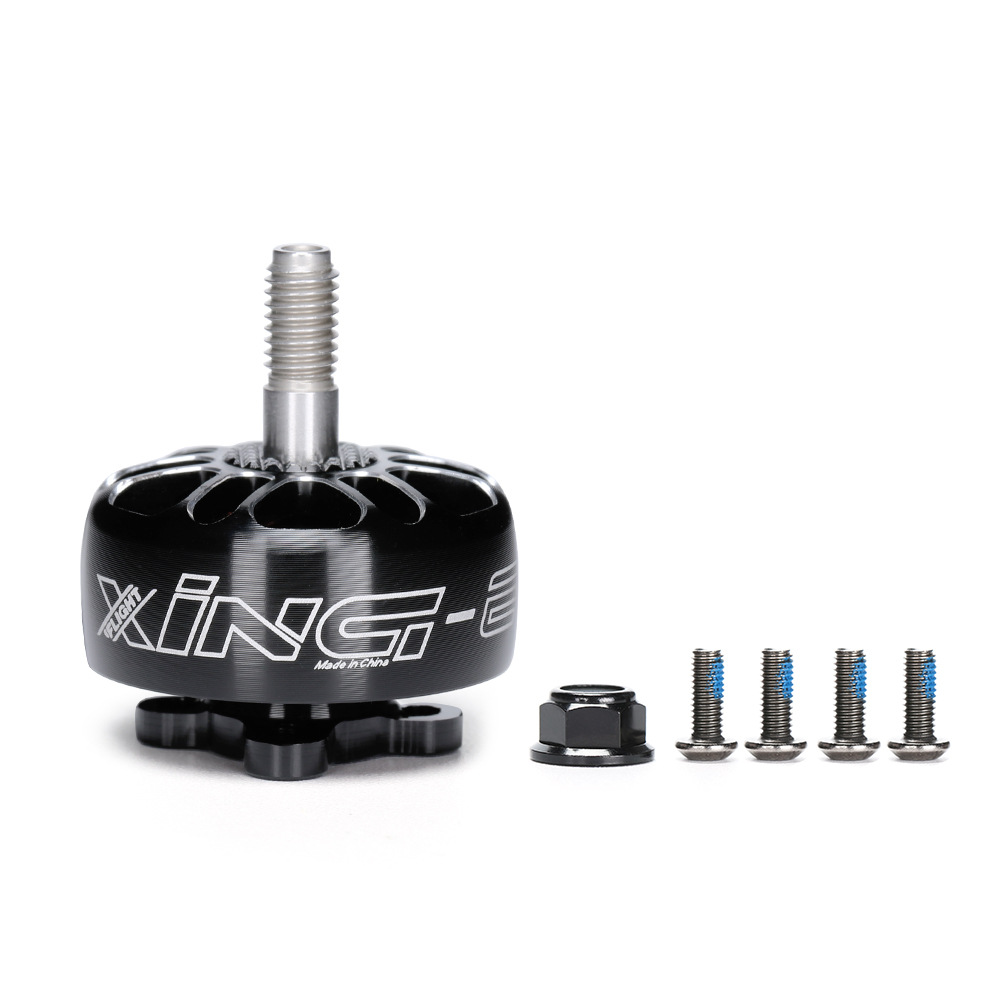

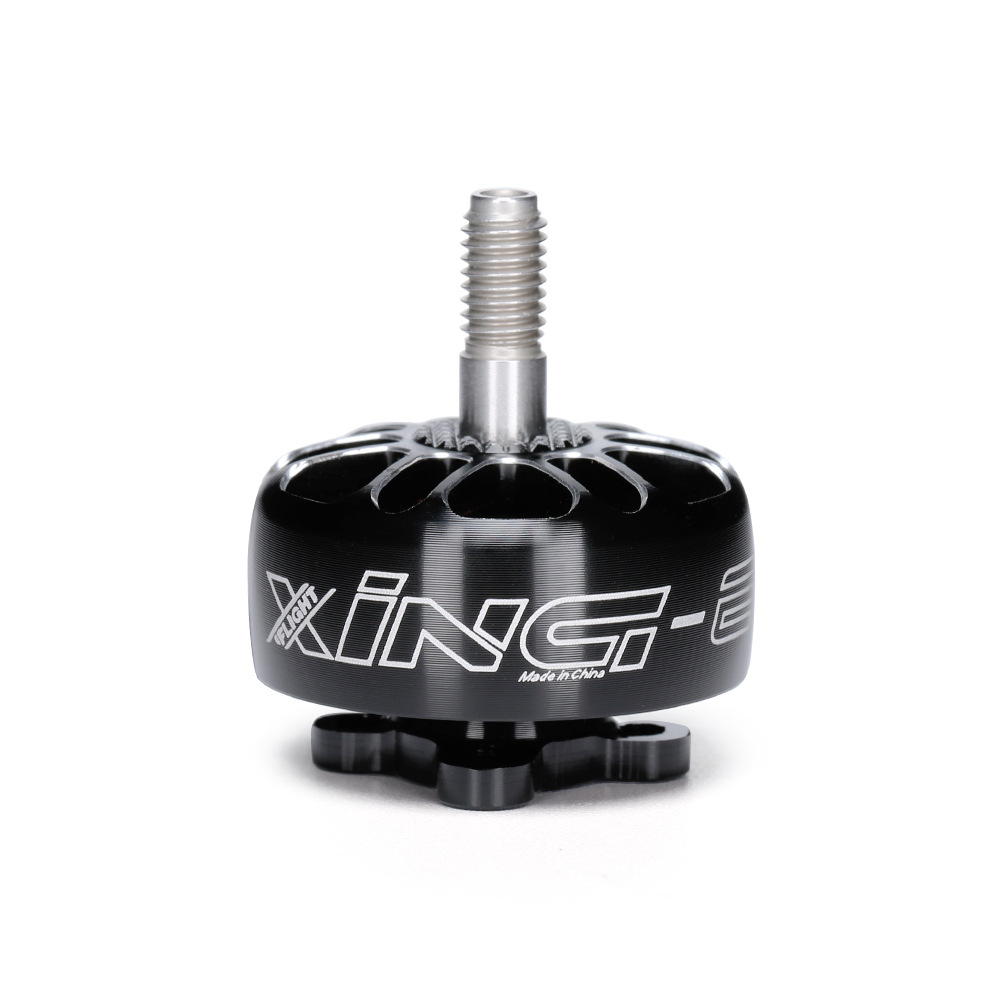

This 2207 sized motor features a High-strength 4mm steel hollow shaft, Single strand windings for performance, M3 shaft screw, and larger 9x4x4mm NSK bearings.
Features:
High-strength 4mm Steel shaft
N52H High-temperature magnets, NSK bearings
16x16mm hole pattern
Single strand copper winding
Hex bolt shaft set screw

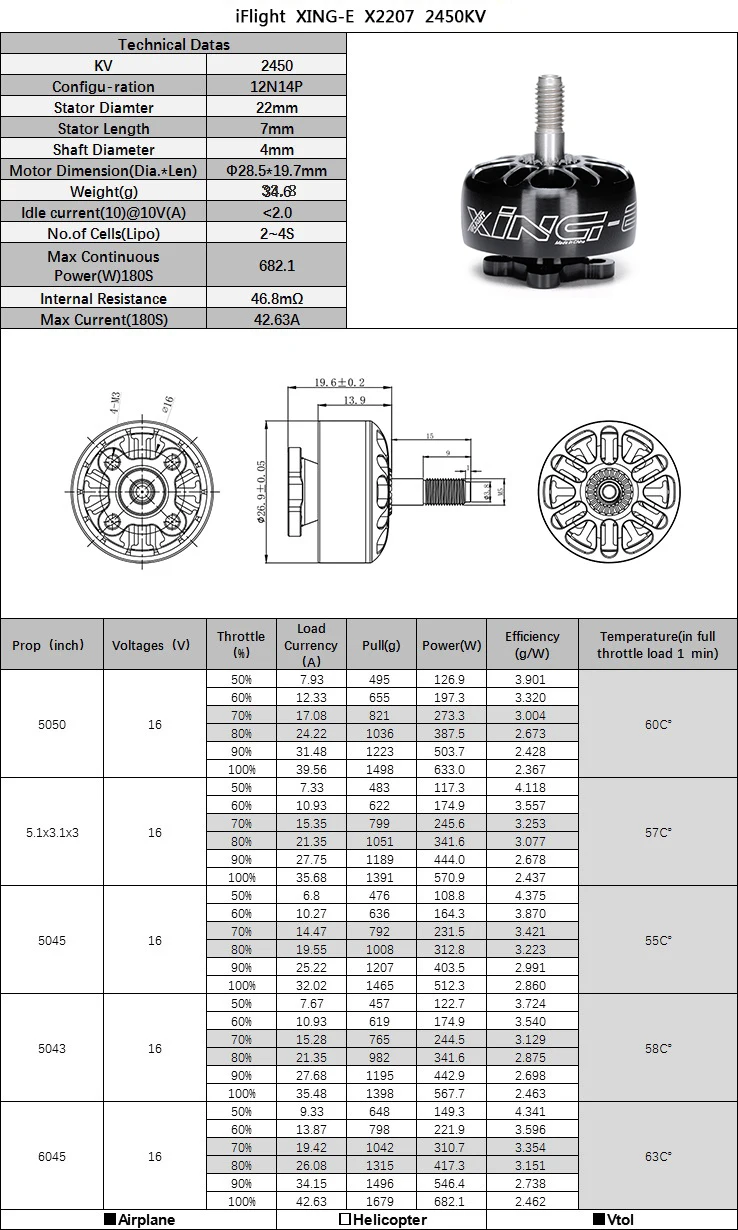

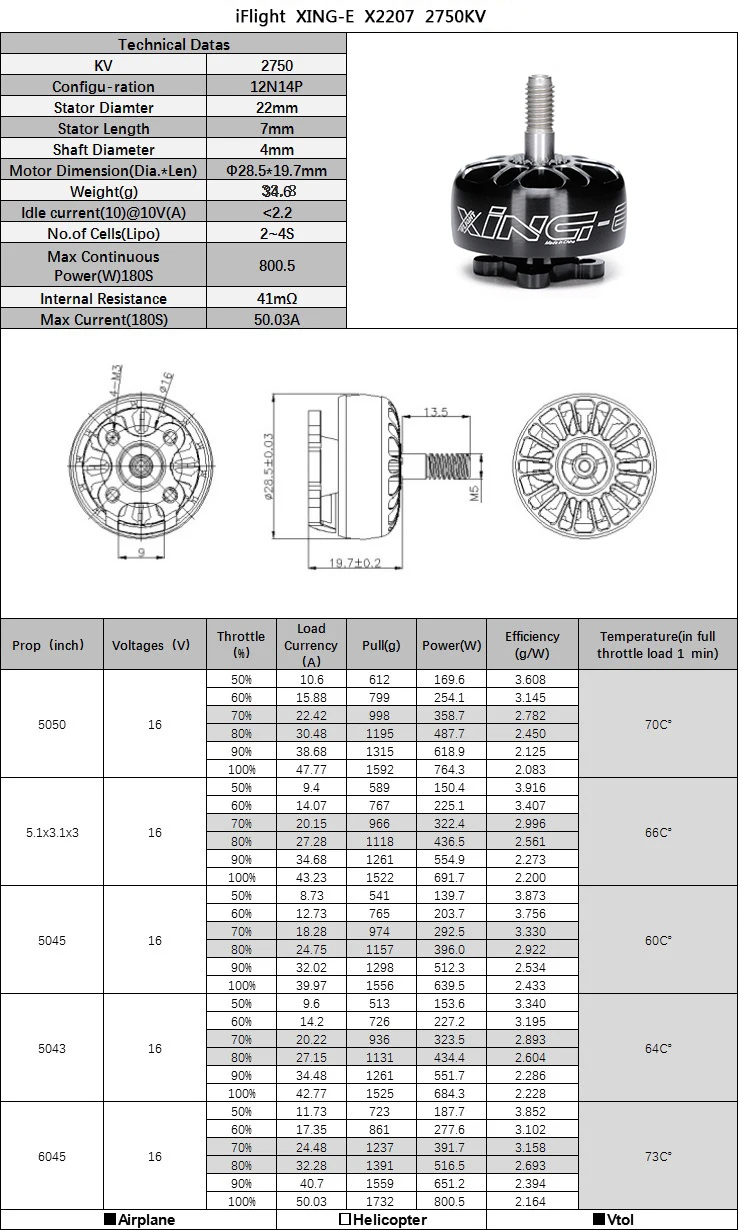

Specifications
Configuration: 12N14P
Stator Diameter: 24mm
Magnets: N52SH Curved
Bearing Size: 9x4x4
Shaft Diameter: 4mm / Steel
Base Mounting Pattern: 16x16mm M3 Thread
Motor Dimension: 28.5x19.7mm

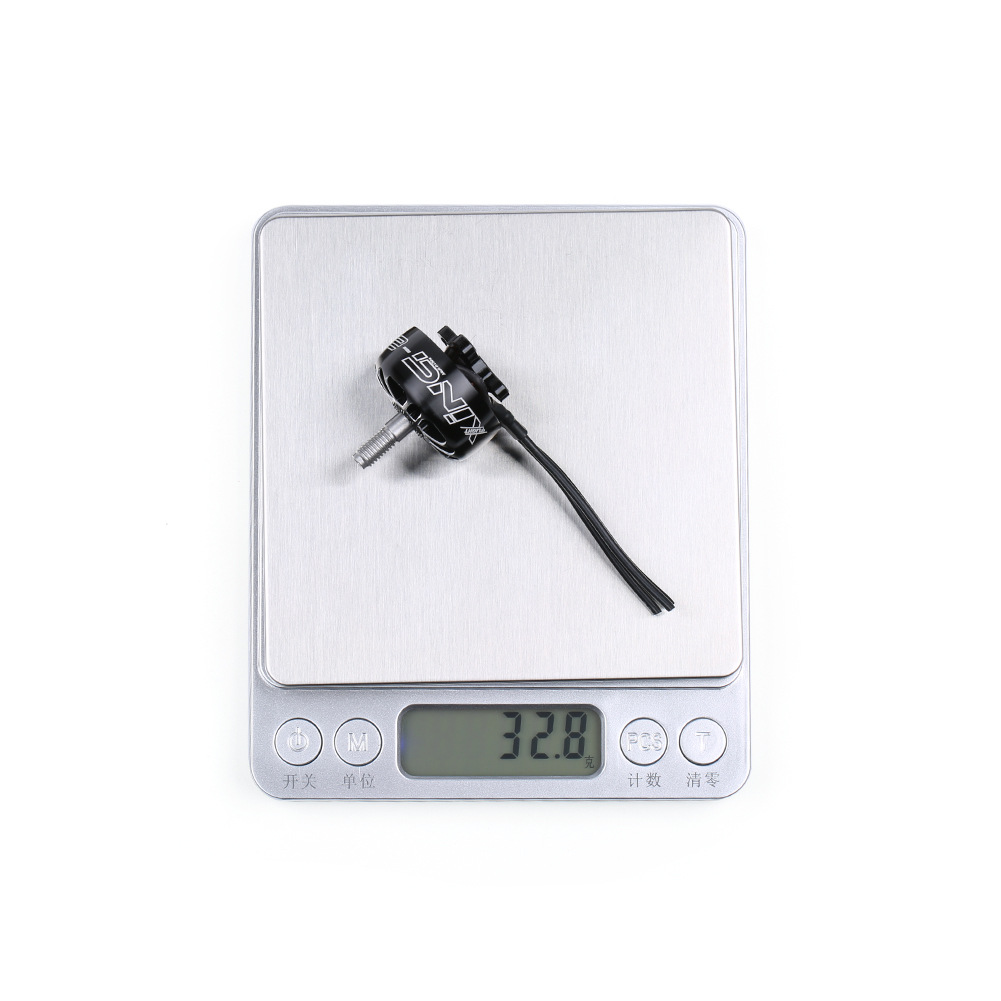

Weight: 33.8g (150mm wires)
Idle Current @12.6v (Io): 1.2 A
Cells (LiPo): 2-6S
Max Burst Current <10s: 35.22A
Max Power (W) 60s: 845W
Internal Resistance (Rm): 81.5mΩ
Motor Wire Length: 150mm / 20AWG
Package included:
1pcs XING-E 2207 motor
