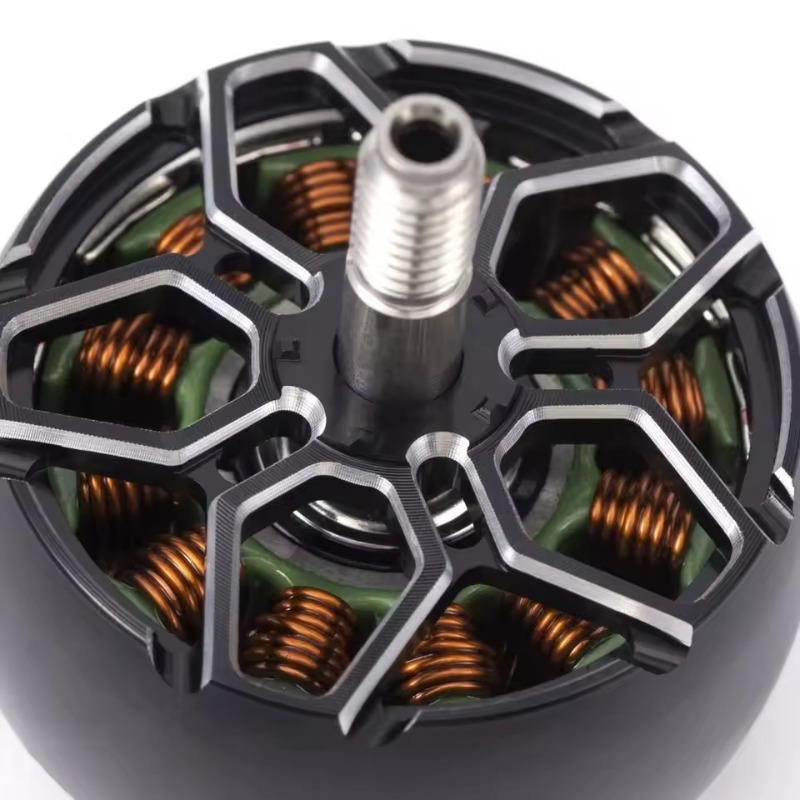

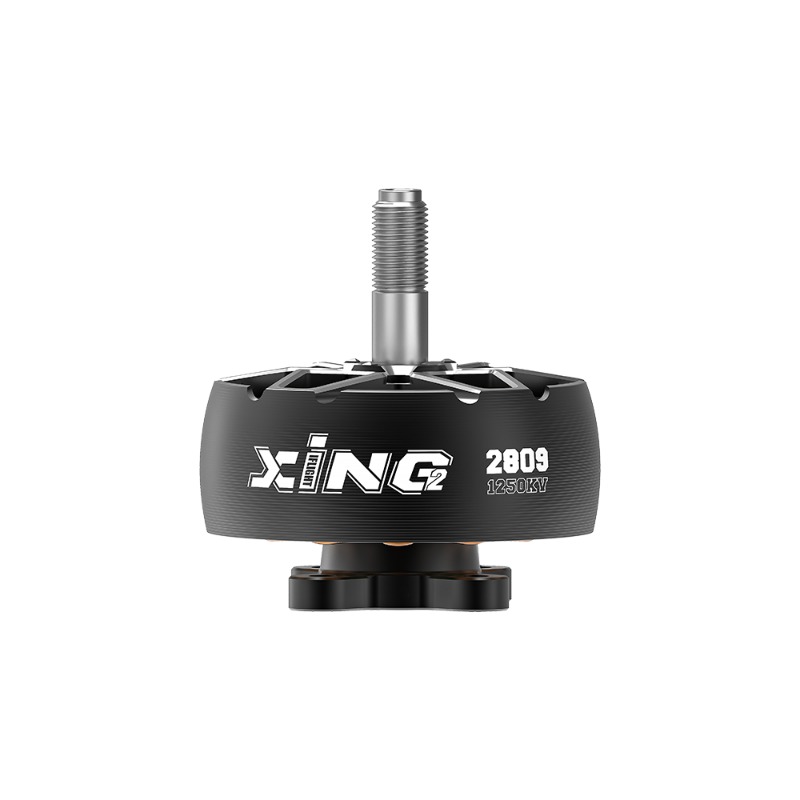

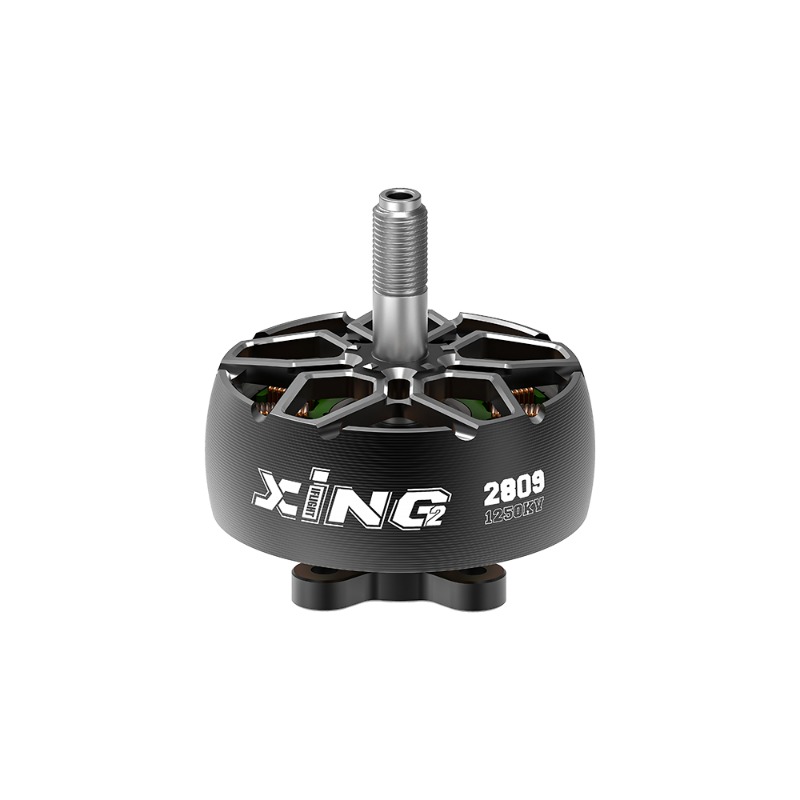

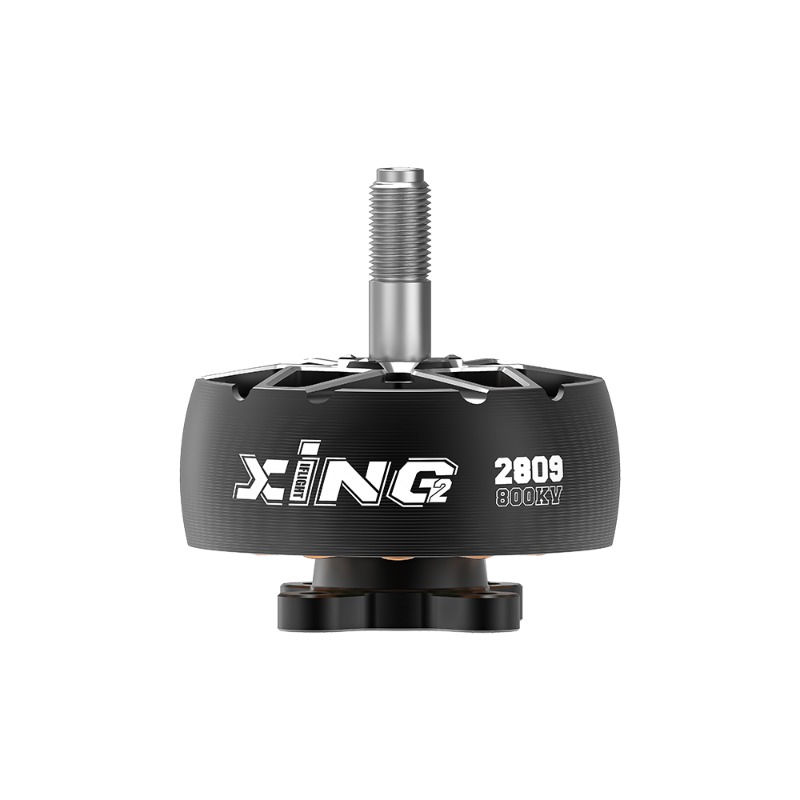

The iFlight XING2 2809 Cinelifter Brushless Motor delivers powerful, smooth, and reliable performance for heavy FPV builds. Featuring a 5mm titanium alloy shaft, durable 7075 aluminum bell, NSK bearings, and N52H curved arc magnets, it provides excellent durability, fast response, and high efficiency for demanding flight applications.
Model: XING2 2809 Motor
KV: 800KV/1250KV/1600KV

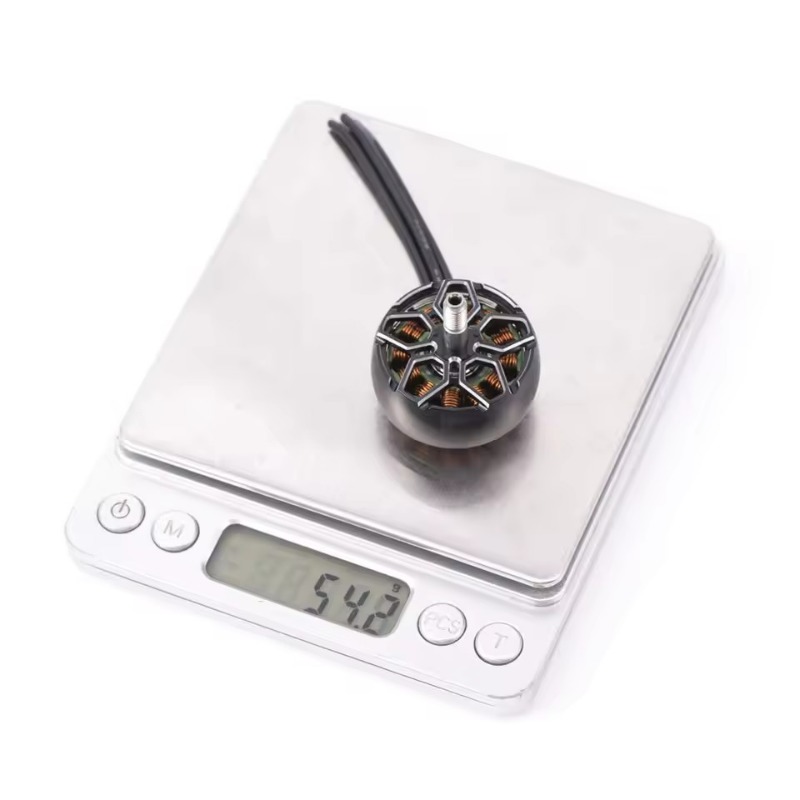

Weight(including wire): 61.4g/ 60.7g/59.9g
Dimension: φ35.33*21.7mm
Interphase Resistance: 127mΩ/65.46mΩ/47mΩ
Input Volts: 24V
Peak Current: 25.63A/50A/62.24A
Max Watt: 610.3W/1145W/1456.4W
Mounting Holes: 19*19 φ3mm
Rotor Specifications: Unibell
Shaft Diameter: 5mm
Shaft Protruding Length: 15mm
Lead: 260mm/18AWG
Magnet: N52H Curved
Configuration: 12N14P

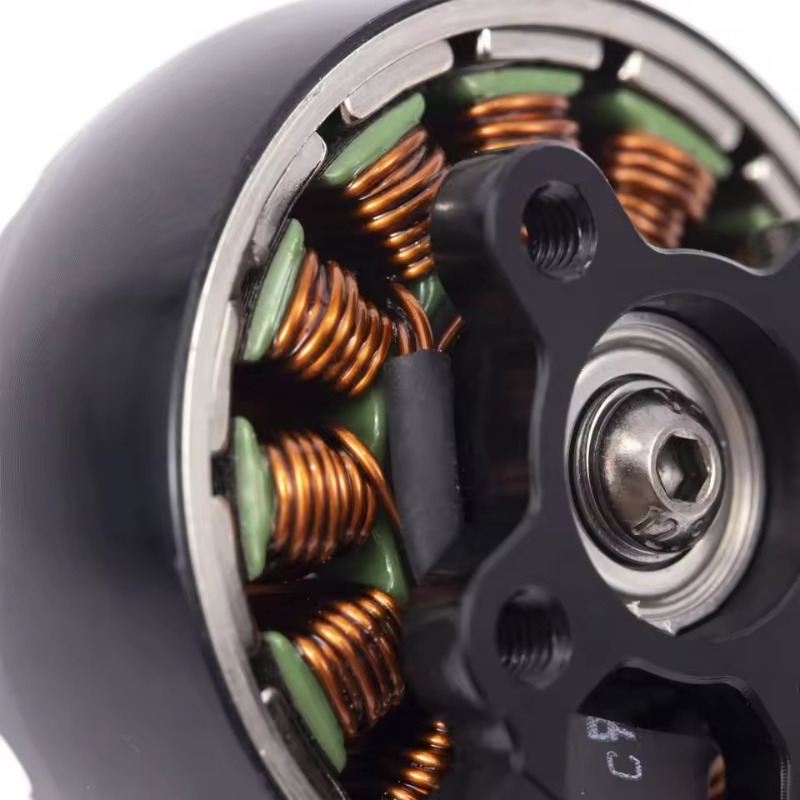

Bearing Type: NSK
Bearing Specification: φ11*φ5*5
Winding: Single Strand copper winding
1x XING2 2809 Brushless Motor
4x M3x10 screws
1x M5 Flange Nut

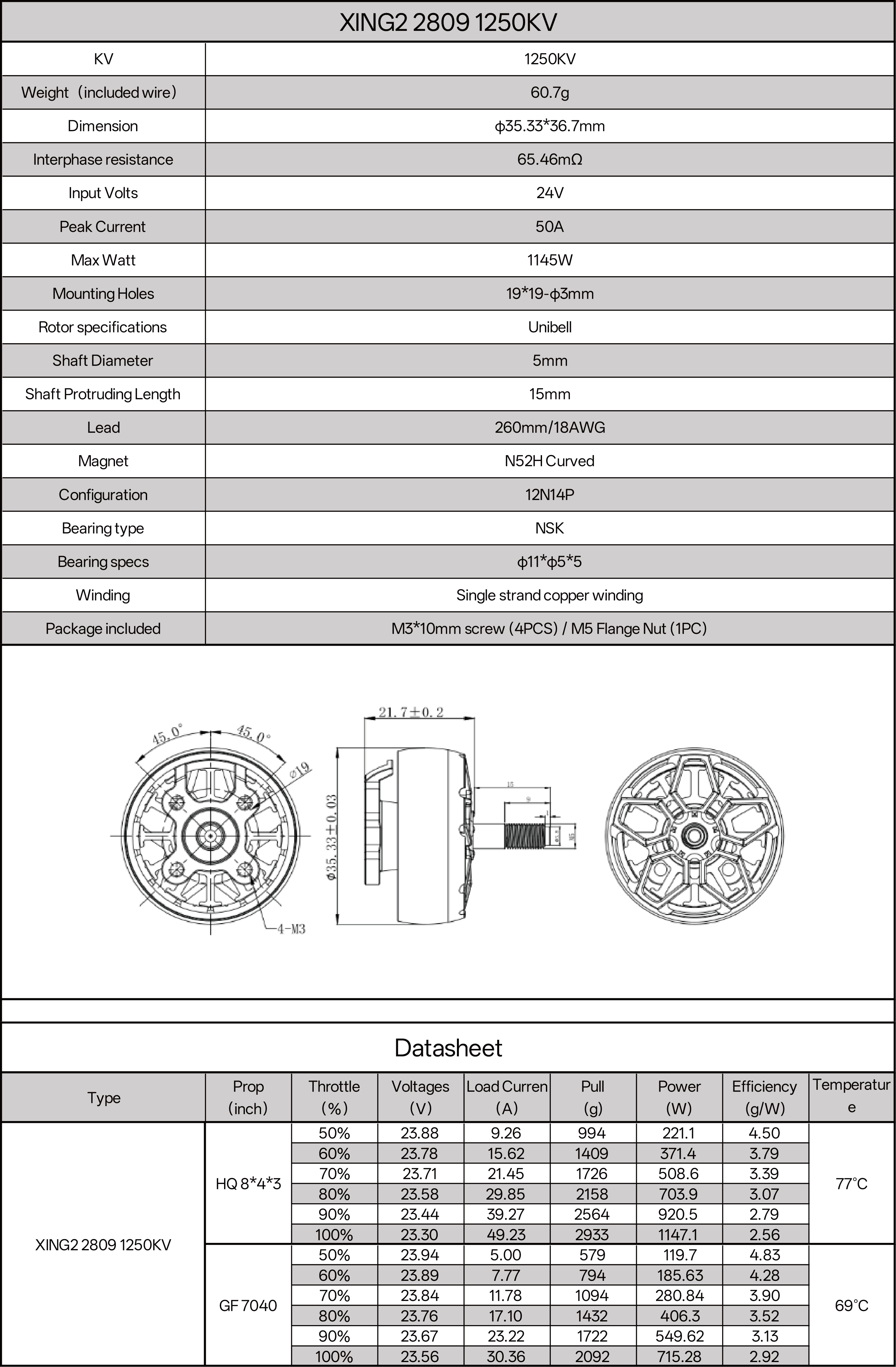

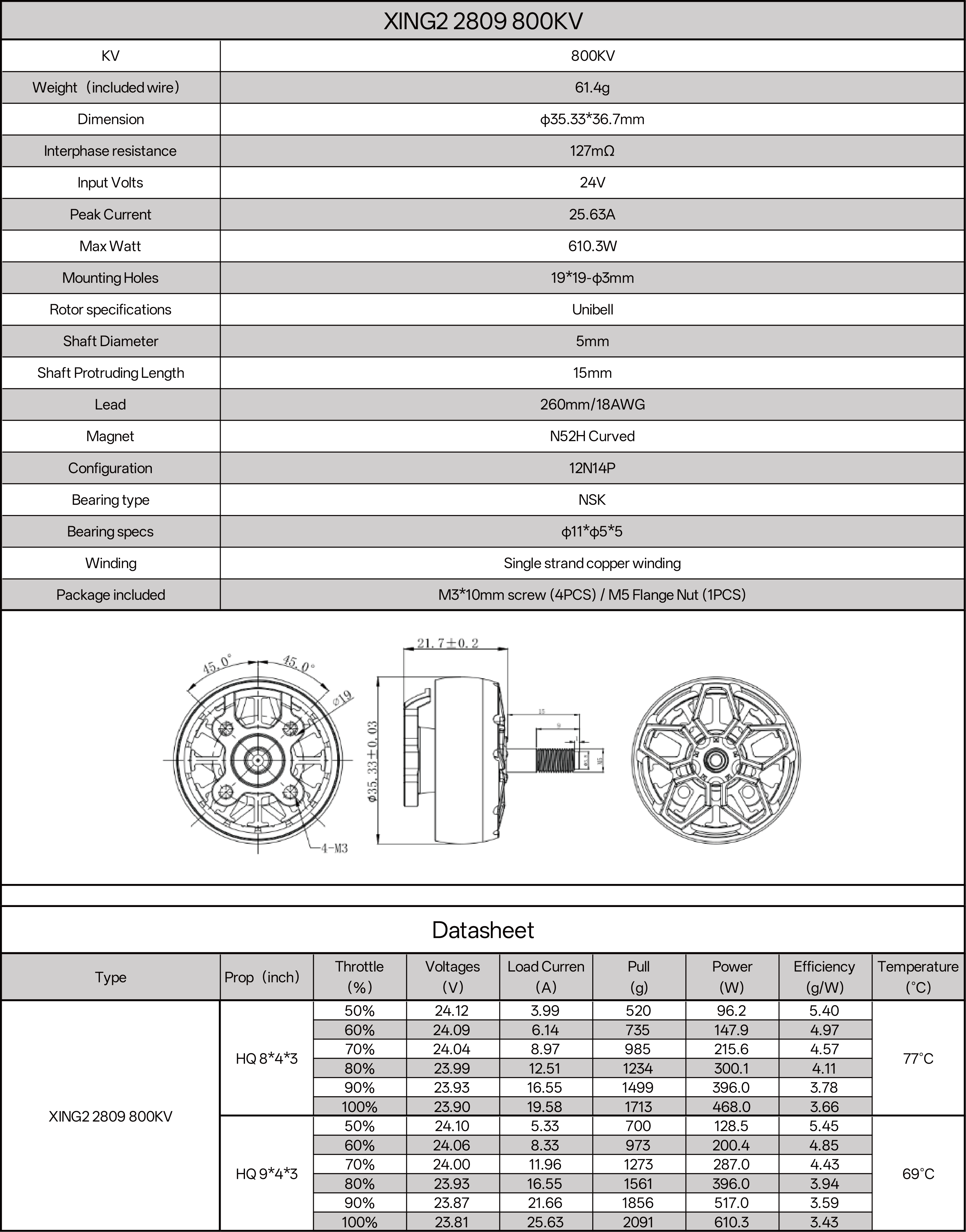

Test Report
