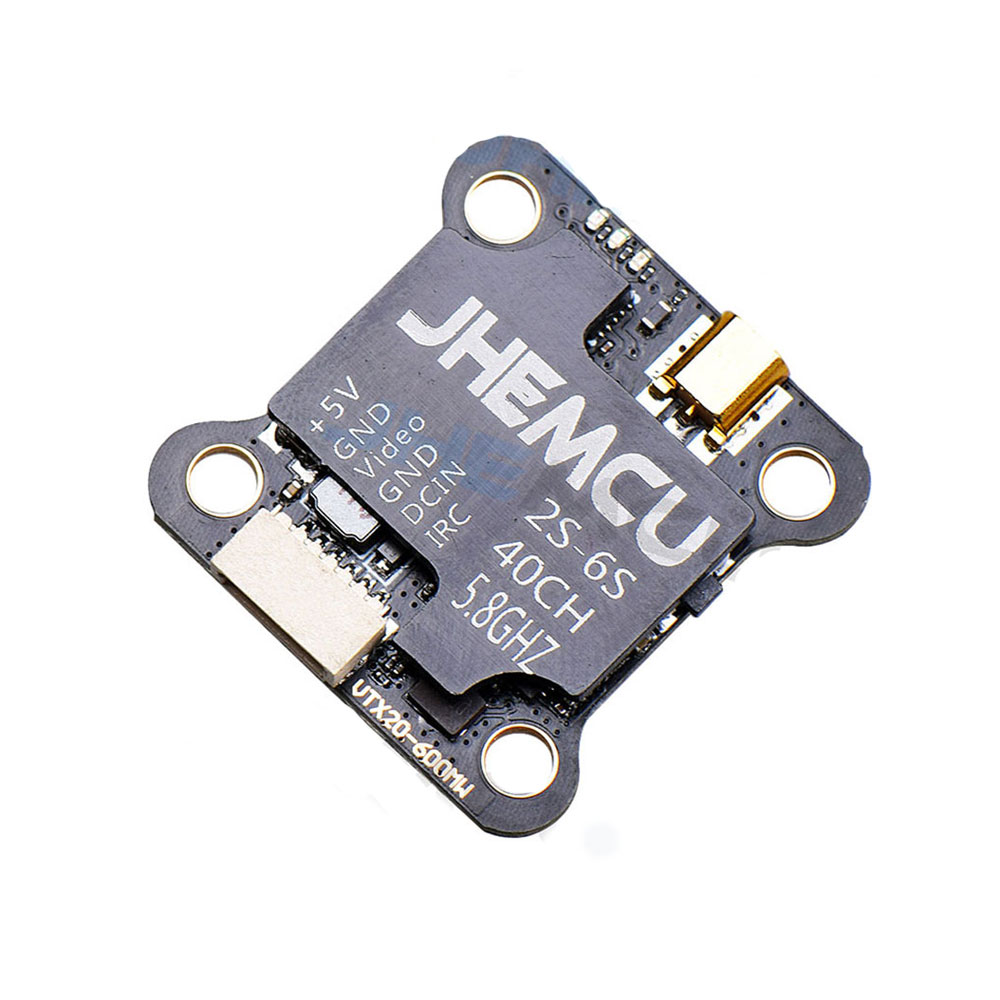

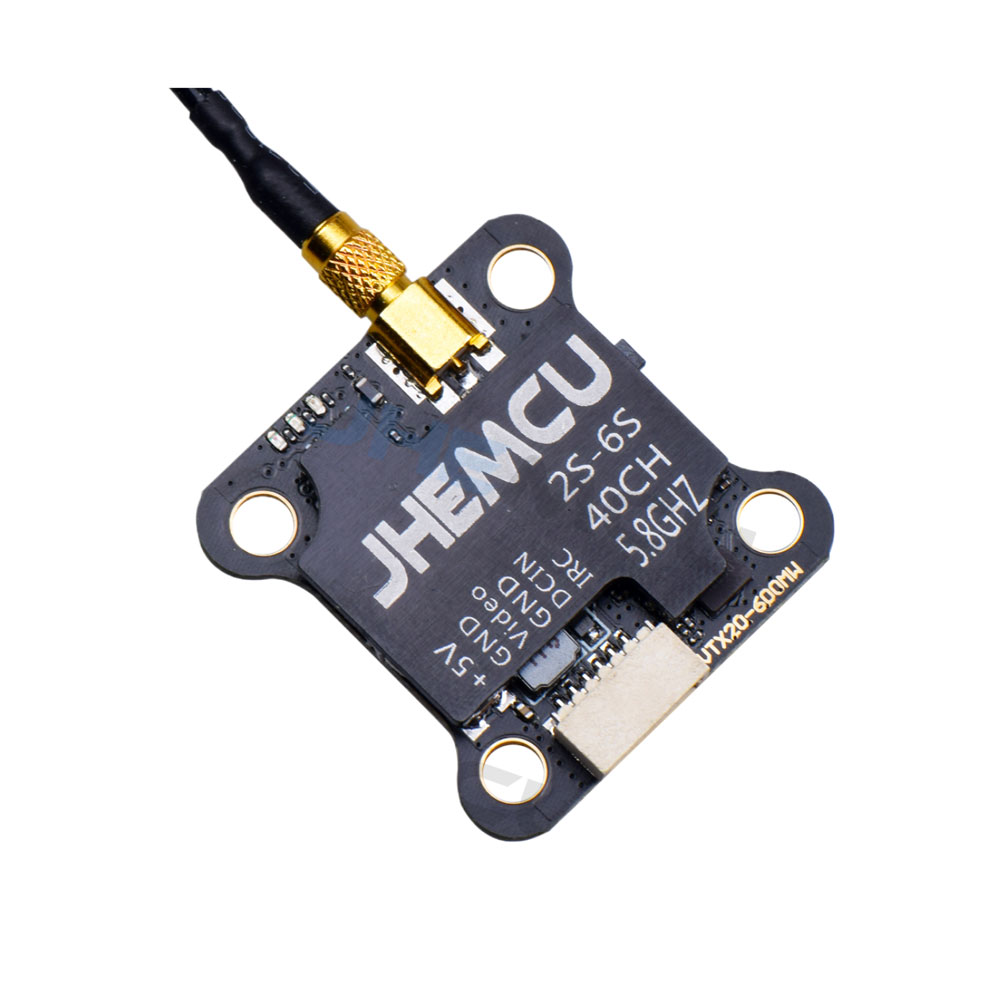

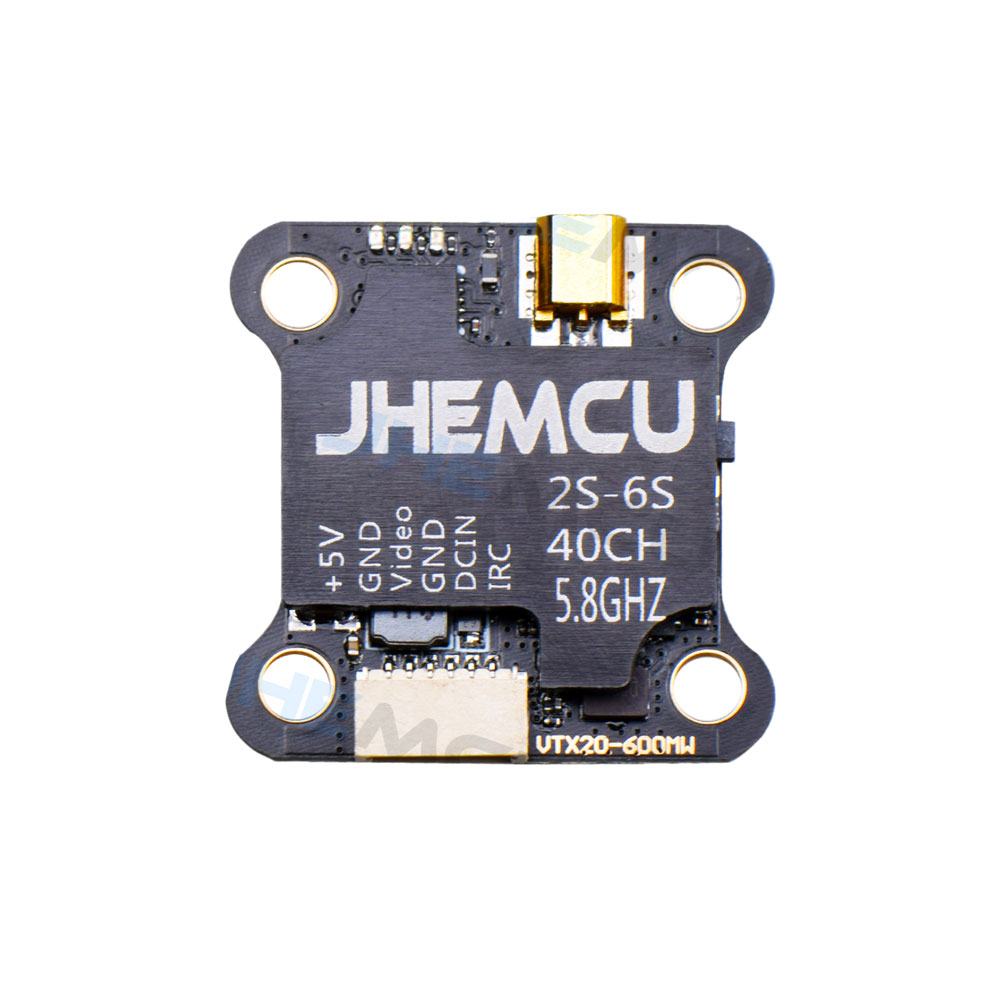

JHEMCU VTX20-600 5.8G 40CH FPV Transmitter PitMode 25mW 100mW 200mW 400mW 600mW 7-26V Adjustable VTX

Description:

Model: VTX20-600

Input voltage: 7-26V

Output voltage and current: 5V 1A

Number of channels: 40CH

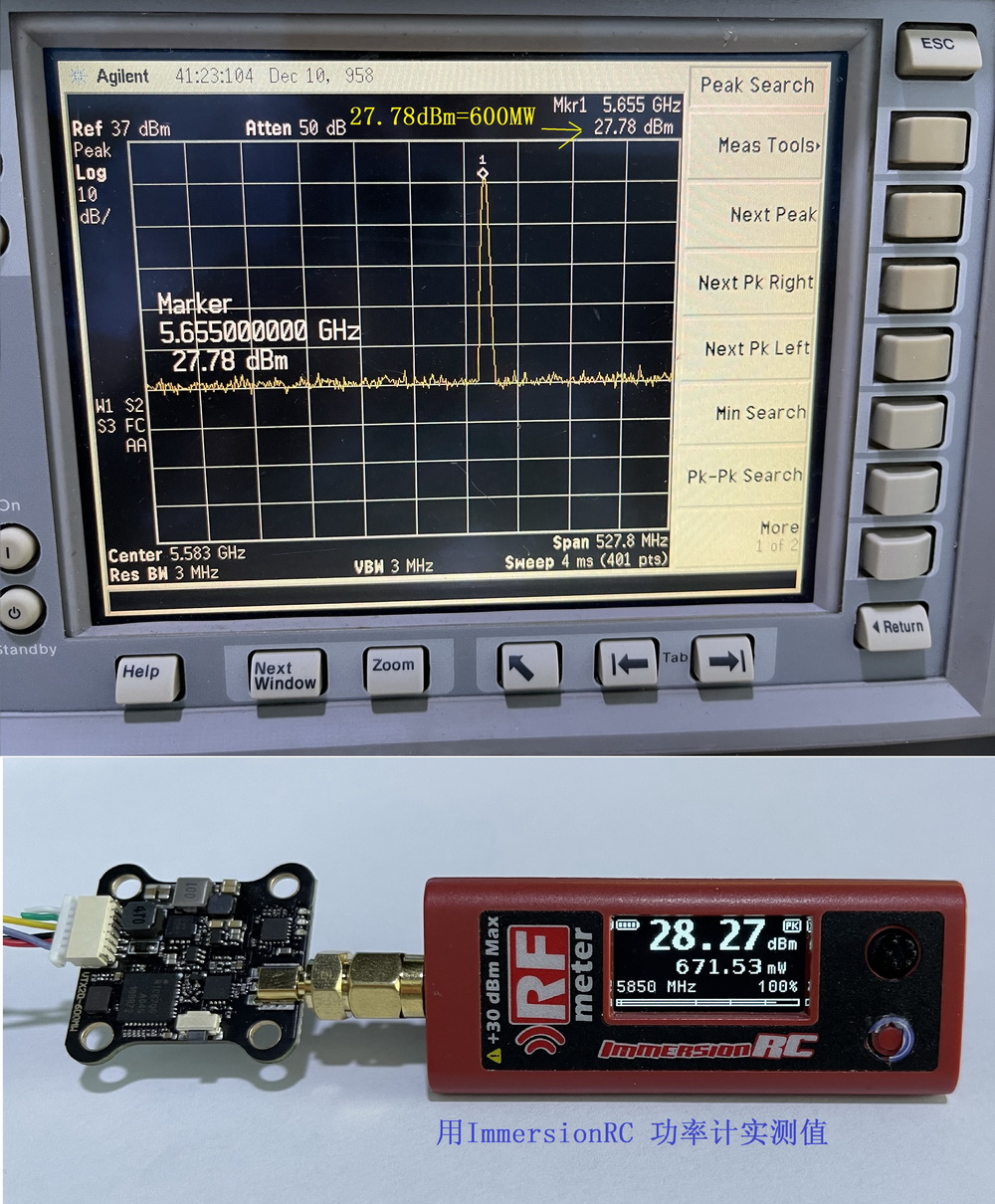

Transmitting power: PIT/25/100/200/400/600mW

Interface: MMCX

Control protocol: VTX IRC Tram

Dimensions: 27x27mm

Installation hole distance: 20x20mm

Installation aperture: 3mm

Weight: 3g

Instructions:

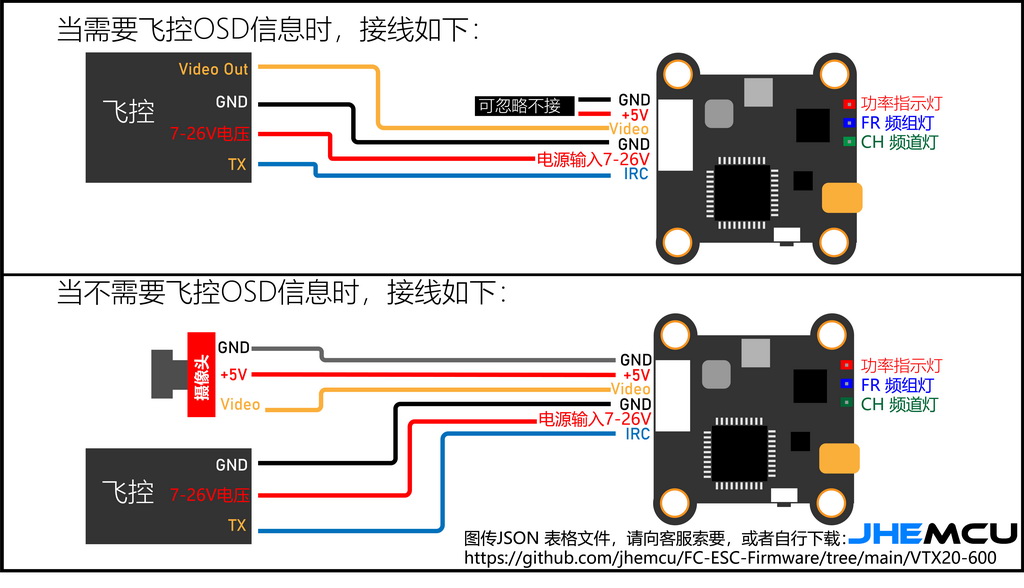

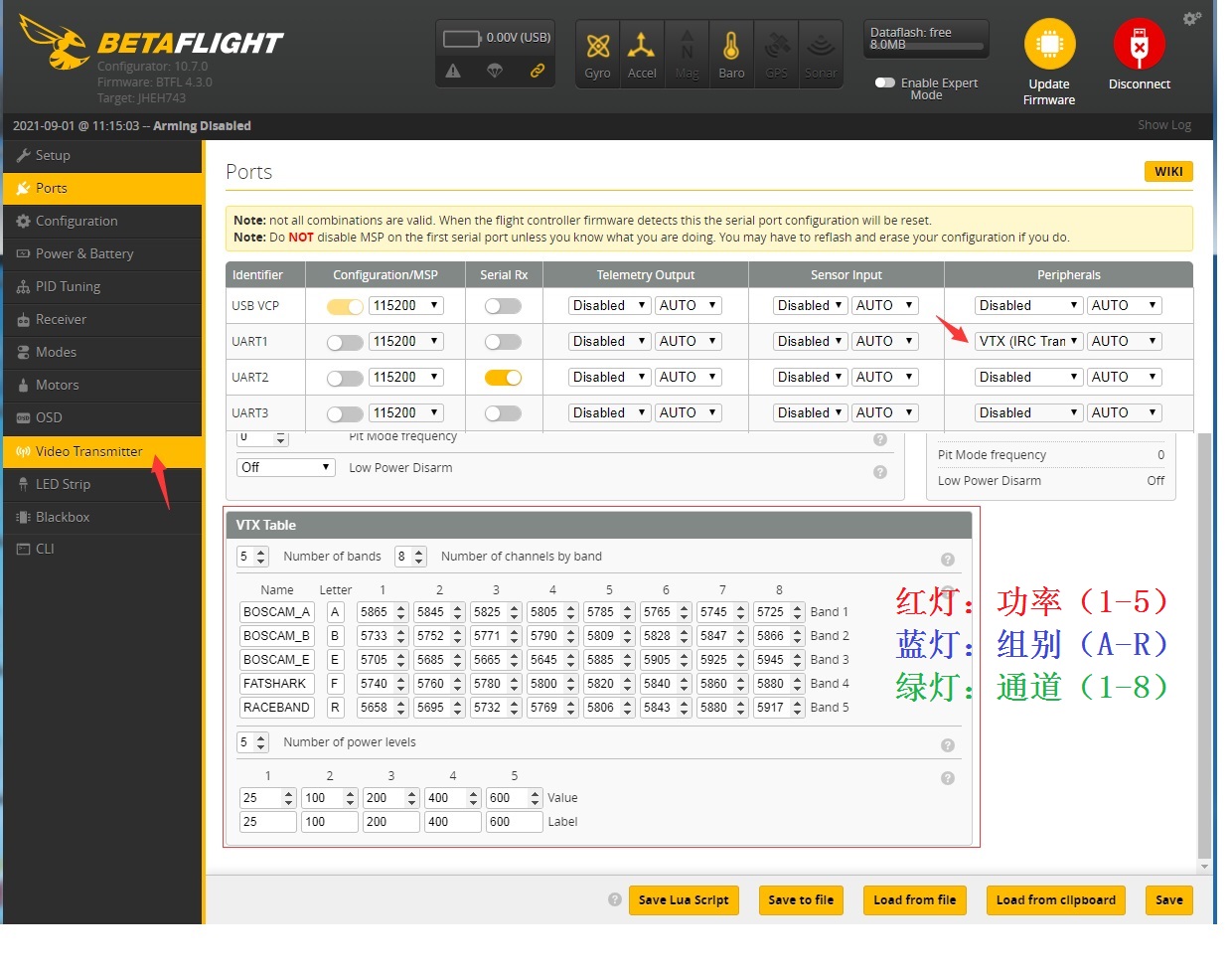

The image transmission supports the IRC Tram protocol to adjust the channel and power of the image transmission through the OSD and remote control, and also supports the switch of the power and channel through the button of the image transmission.

Short press; select CH1-8 cyclically, and the number of times the green light flashes represents the number of CHs.

Long press for 3 seconds; after long press for 3 seconds, the blue light will light up, continue to press and hold to cycle to select the frequency band FR A-B-E-F-R. Corresponding to the blue light flashes 1, 2, 3, 4, 5 times.

Long press for 6 seconds; after long press for 6 seconds, the red light will light up, continue to press and hold, cycle to select the power 25-100-200-400-600mW, corresponding to the red light flashes 1 time, 2 times, 3 times, 4 times, 5 times .

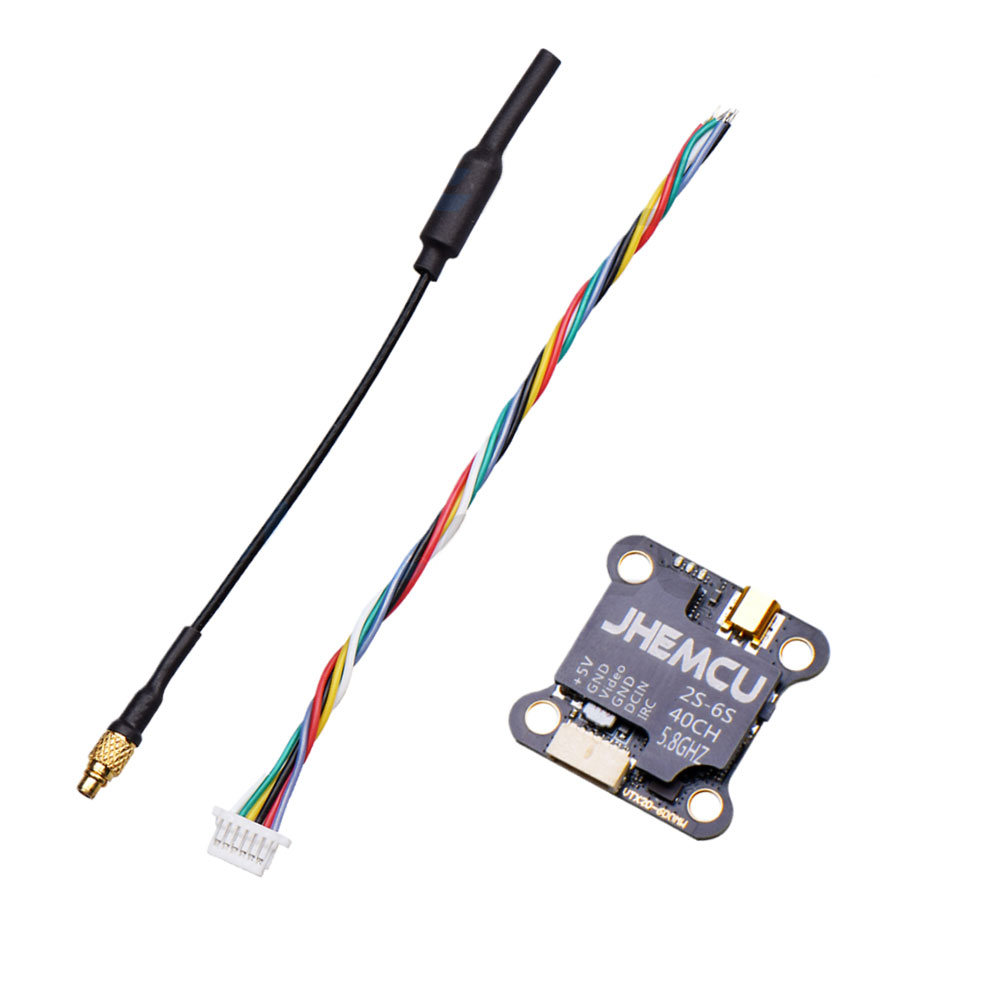

Package Included: Optional

1x VTX20-600 VTX

1x Antenna

1x Cable wire
