About this product
Specifications
5.5V to 36V Operating Input Range

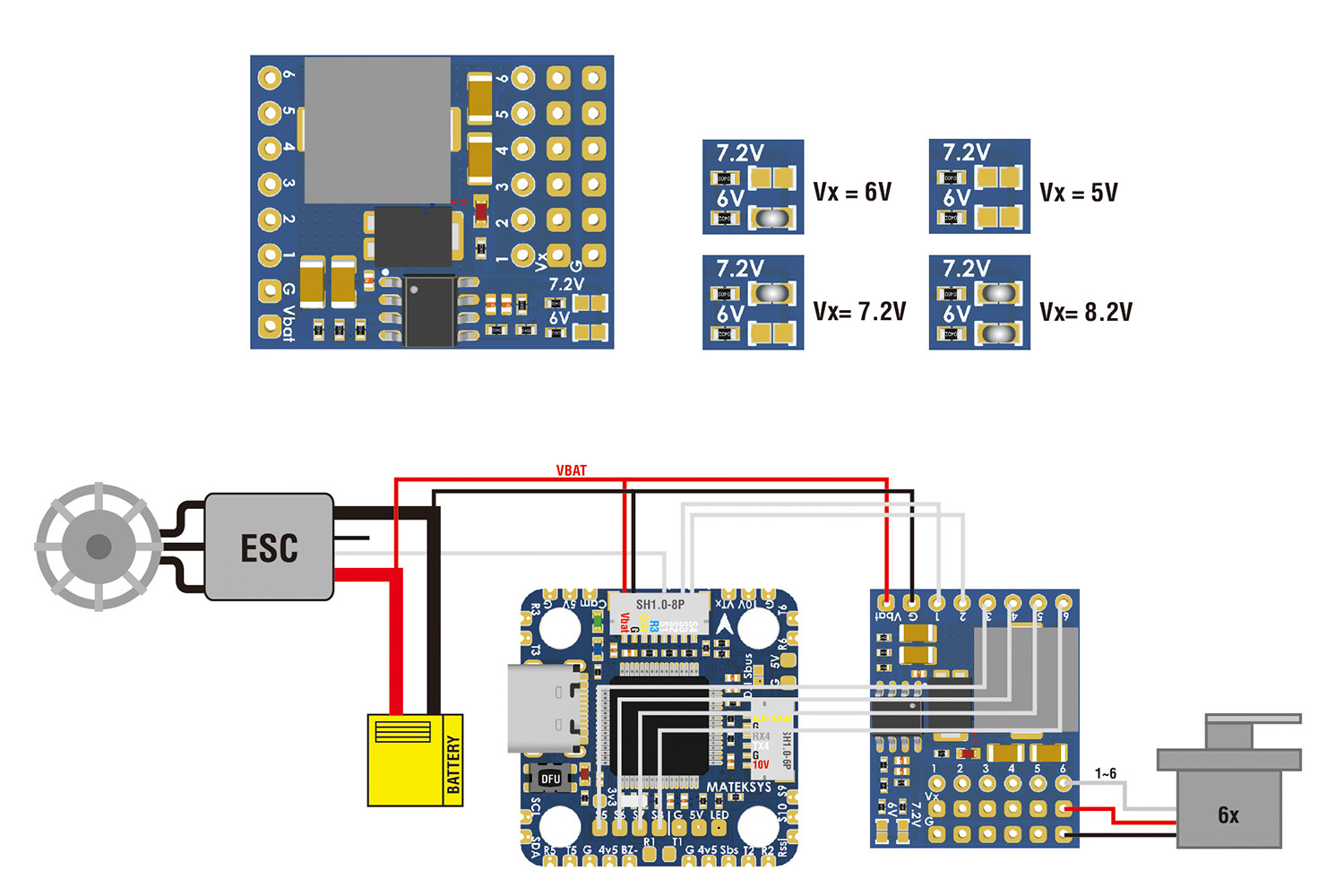

Vx for servos, 5V, 6V, 7.2V, 8.2V Adj. Default is 5V.
4A Continuous load current, 7A Burst
Maximum Duty Cycle: 100%, when input voltage< setting value, Regulator output voltage = Input voltage
Output Short-circuit tolerant (3 seconds)
No protection for reversed input polarity
Pins distance: 2.54mm
Size & Weight: 26 x 21 x 5mm, 4g
Packing: 1x SVPDB-8S, Dupont 2.54mm pins
Applications
Flight controllers without dedicated BEC for servos

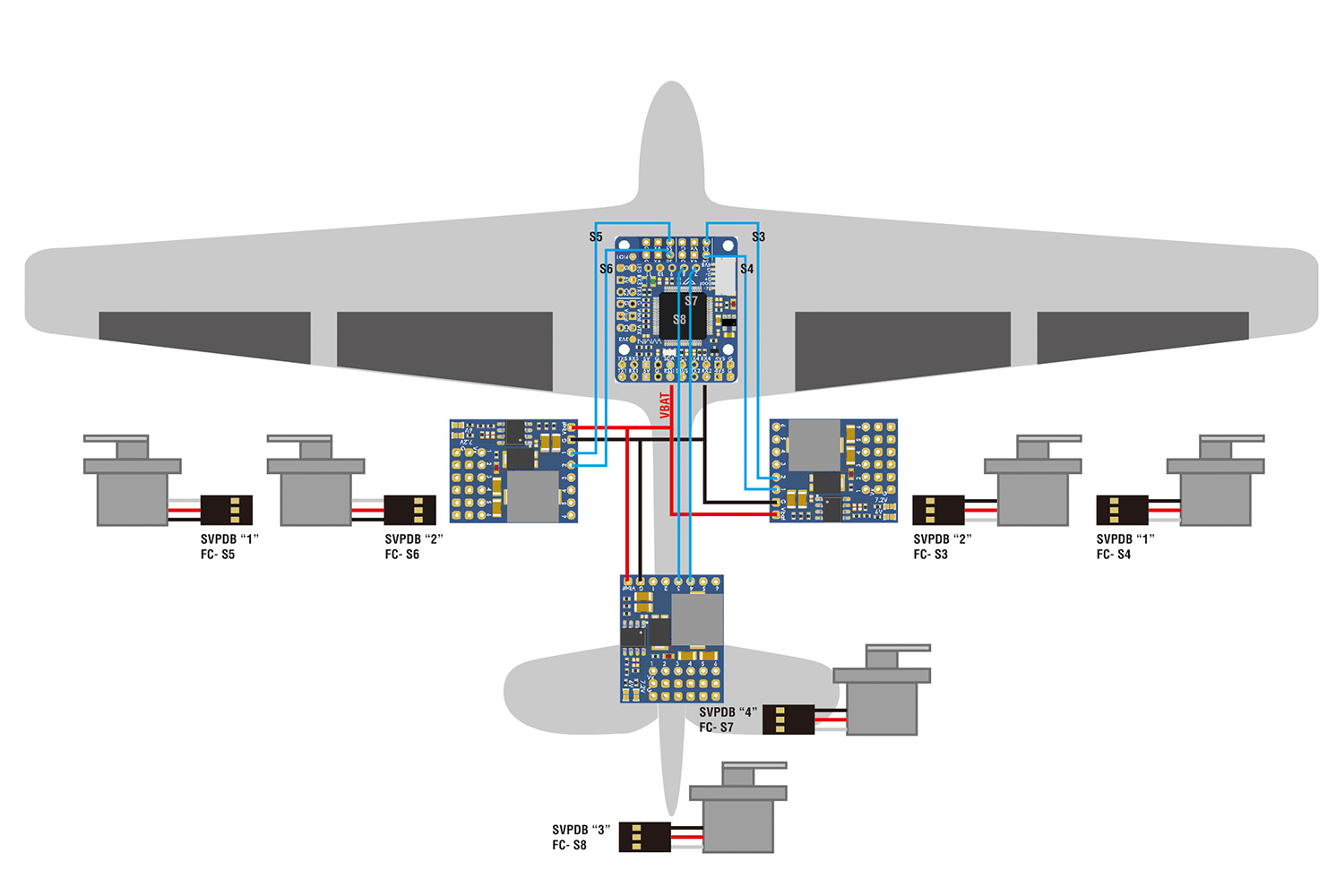

Reduces circuit loss and voltage drop on servo power wires for big scale RC Airplane
