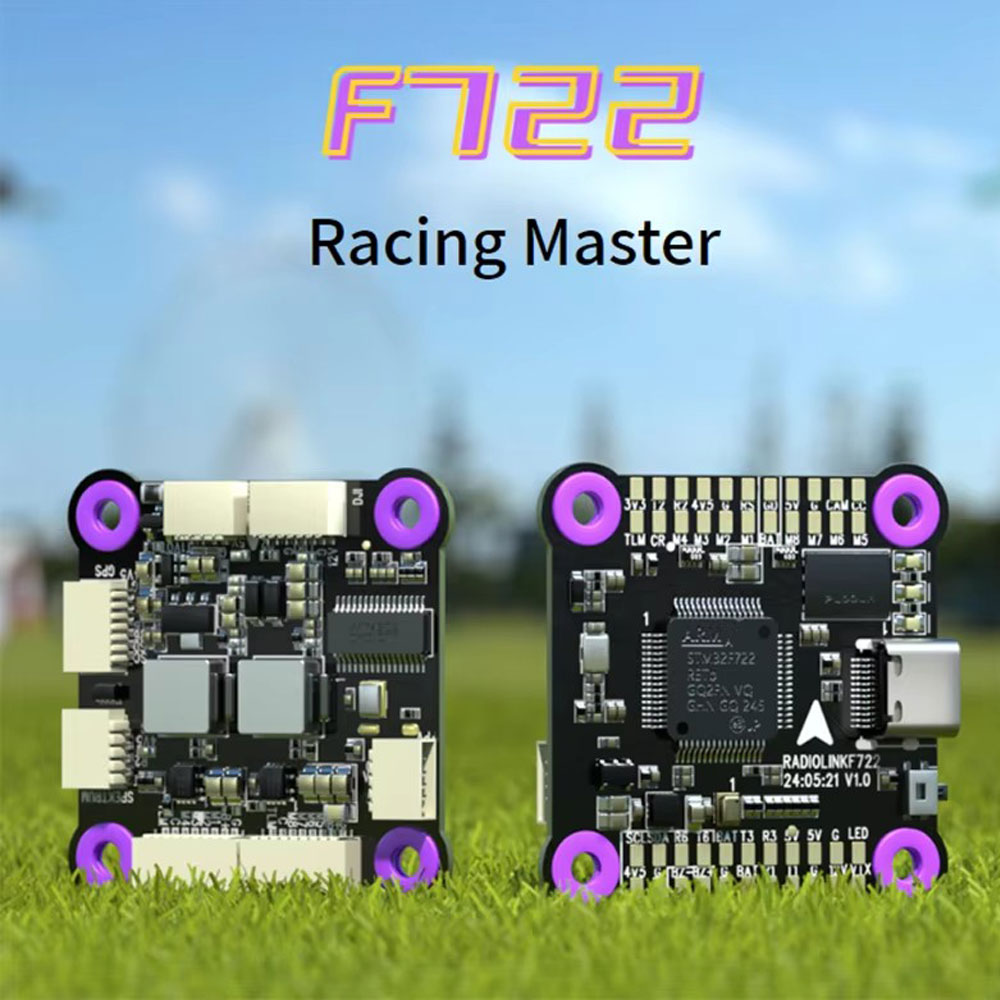

Radiolink F722 Racing Flight Controller Integrated OSD BEC Open-source Betaflight Multiple Image Transmission 3-6S

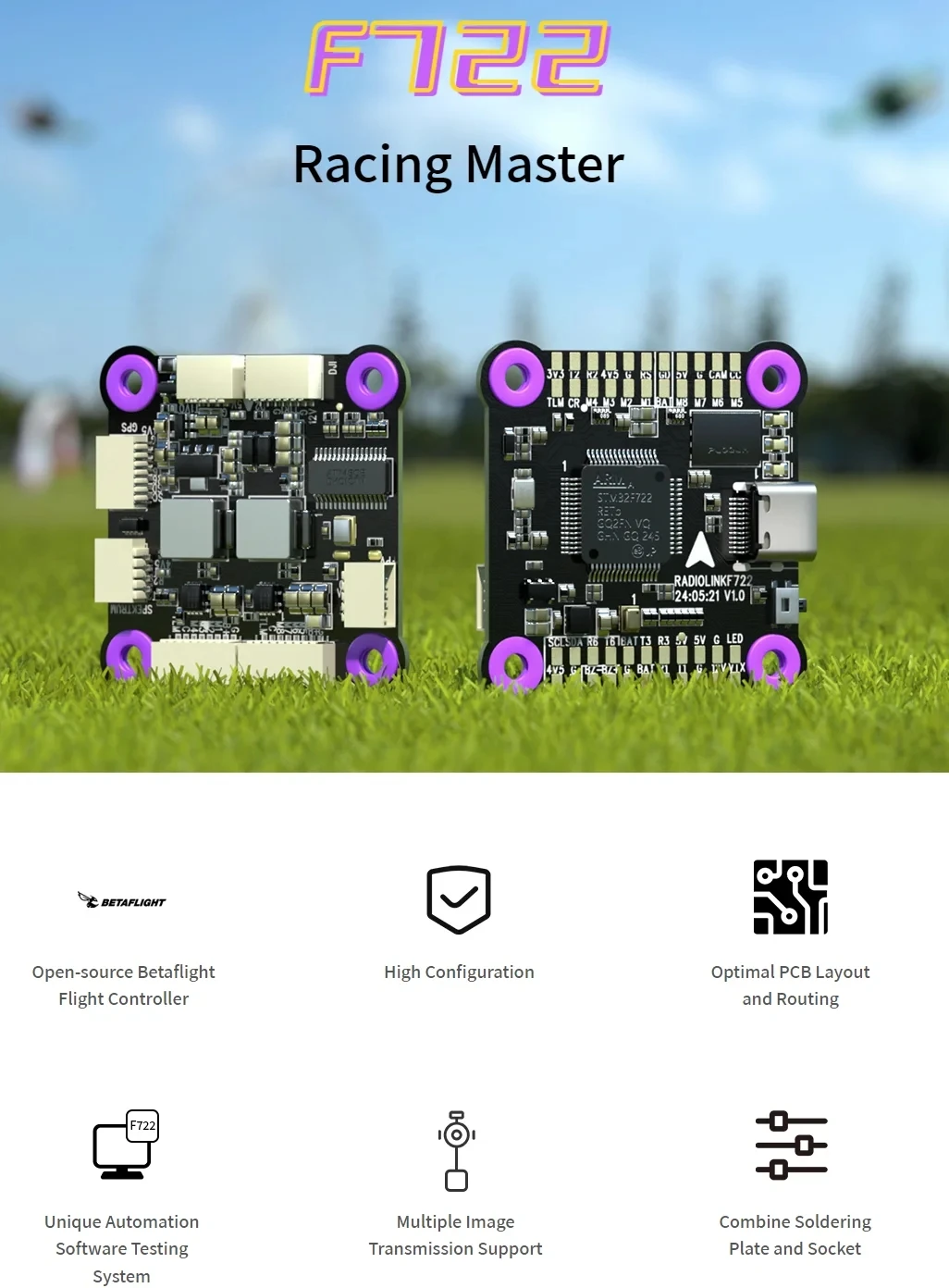

F722 Main Features:
OSD Module Integrated
BEC Integrated
Open-source Betaflight Flight Controller
Unique Automation Software Testing System
Multiple Image Transmission Support
Combine Soldering Plate and Socket
Optimal PCB Layout and Routing
ESC Telemetry Supported
Vibration Damping by Software
Redevelopment Supported
Automation Software Testing System
DJI/CADDX HD Digital Video Transmission Supported
All Interfaces can be Plug-in Directly

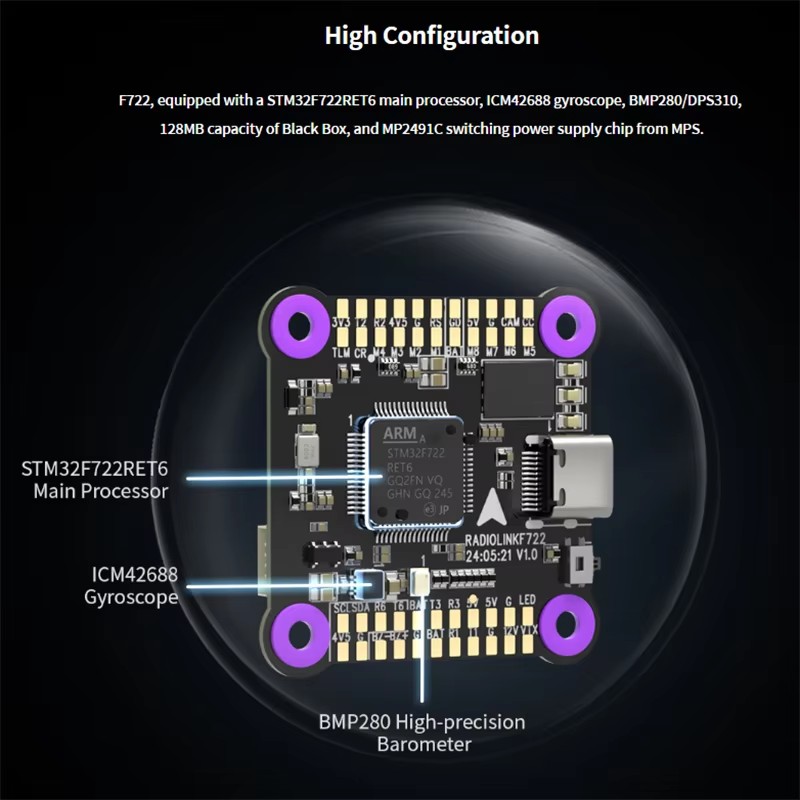

High Configuration: Equipped with a STM32F722RET6 main processor, ICM42688 gyroscope, BMP280/DPS310,
128MB capacity of Black Box, and MP2491C switching power supply chip from MPS
Optimal PCB layout and routing: With more than 10 years of experience in independent flight control design, repeated optimization of PCB layout and routing,
achieving a perfect combination of high current and low noise, ensuring sensor accuracy.
Unique Automation Software Testing System: With the independent research and development of multiple unique flight control systems, we have designed a full-featured automation software testing system from sensor to connection ports and interface.   The test efficiency and quality assurance are far superior to traditional manual tests, ensuring the quality of every function of every F722.

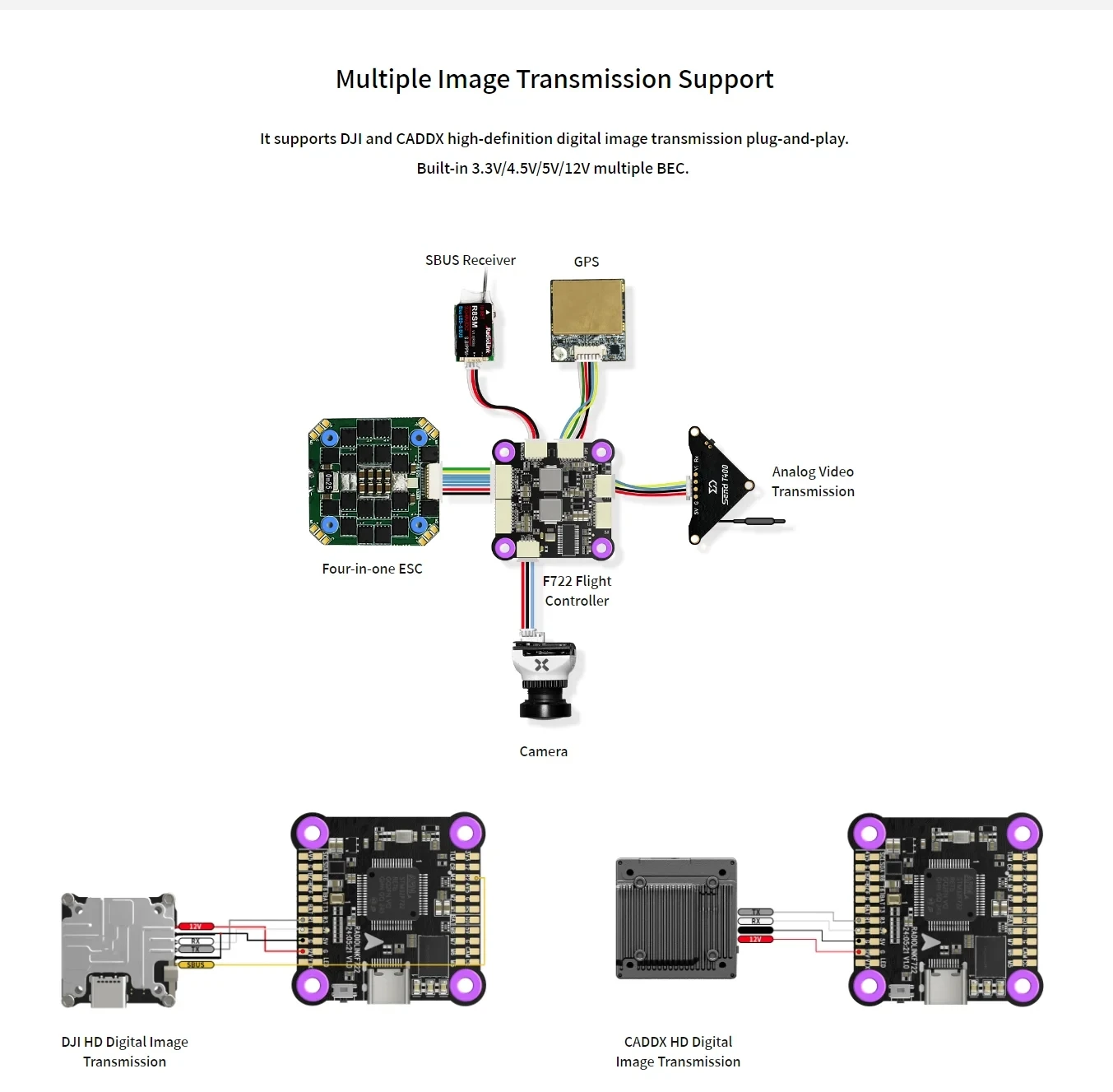

Multiple Image Transmission Support: It supports DJI and CADDX high-definition digital image transmission plug-and-play.
Built-in 3.3V/4.5V/5V/12V multiple BEC.

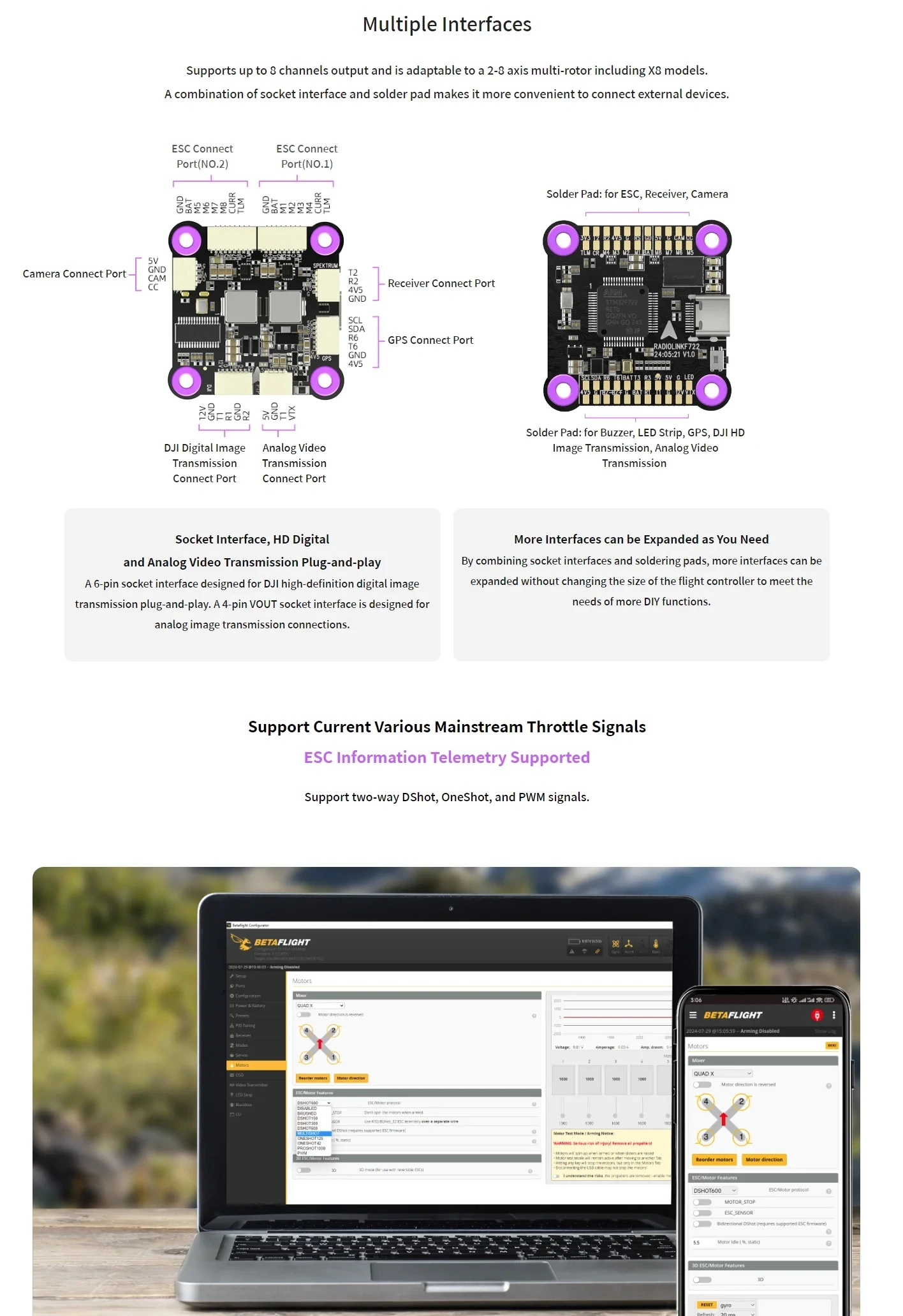

Multiple Interfaces: Supports up to 8 channels output and is adaptable to a 2-8 axis multi-rotor including X8 models.
A combination of socket interface and solder pad makes it more convenient to connect external devices.
Support Current Various Mainstream Throttle Signals: ESC Information Telemetry Supported
Support two-way DShot, OneShot, and PWM signals.

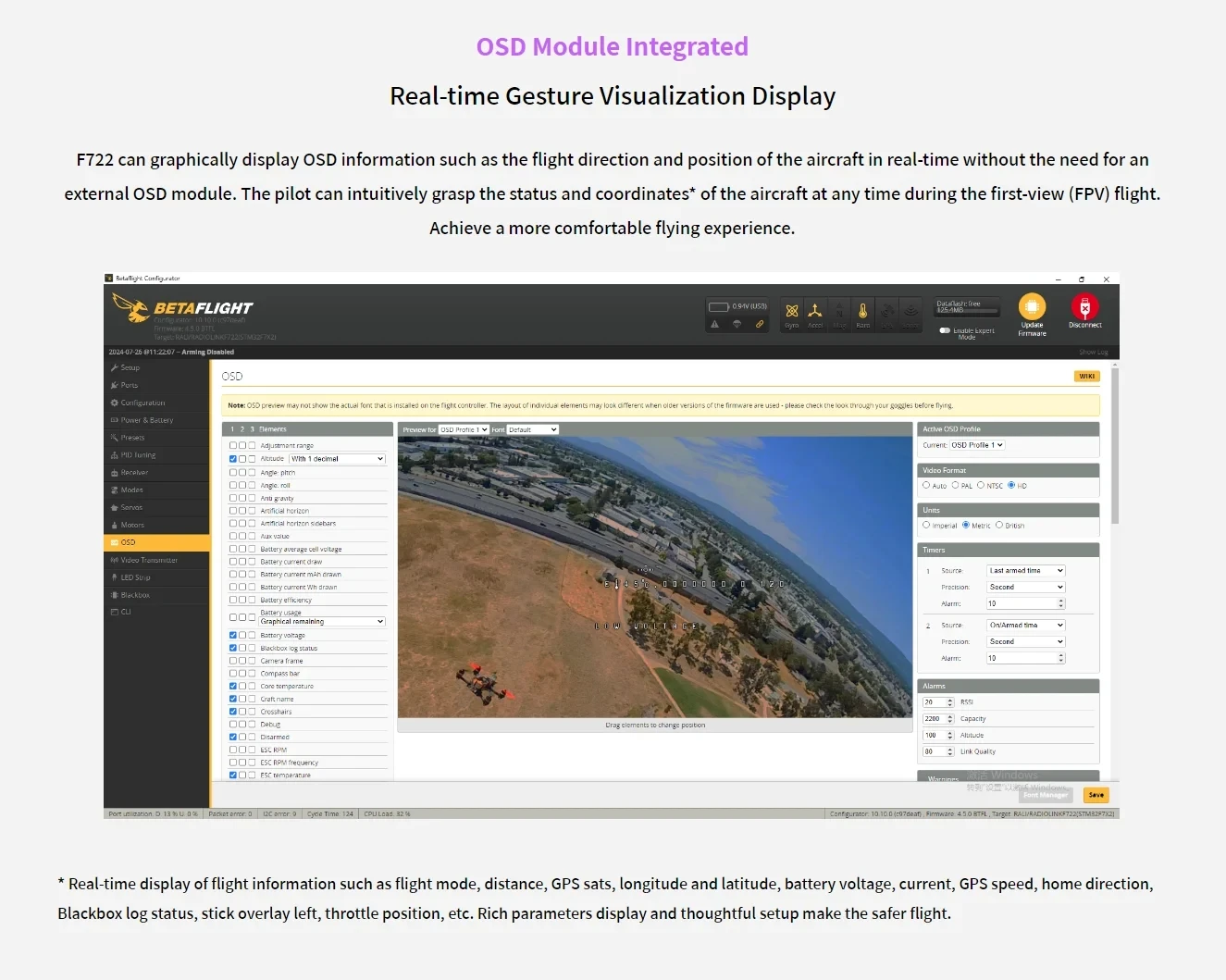

OSD Module Integrated: F722 can graphically display OSD information such as the flight direction and position of the aircraft in real-time without the need for an external OSD module.
