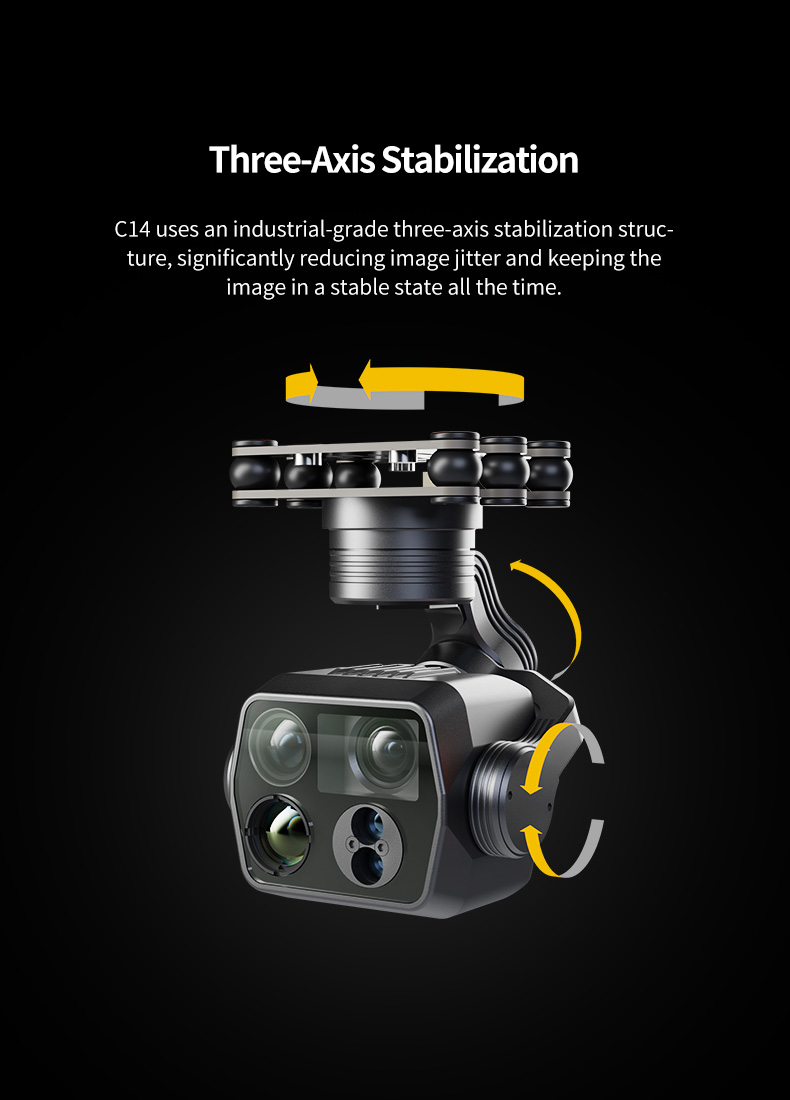

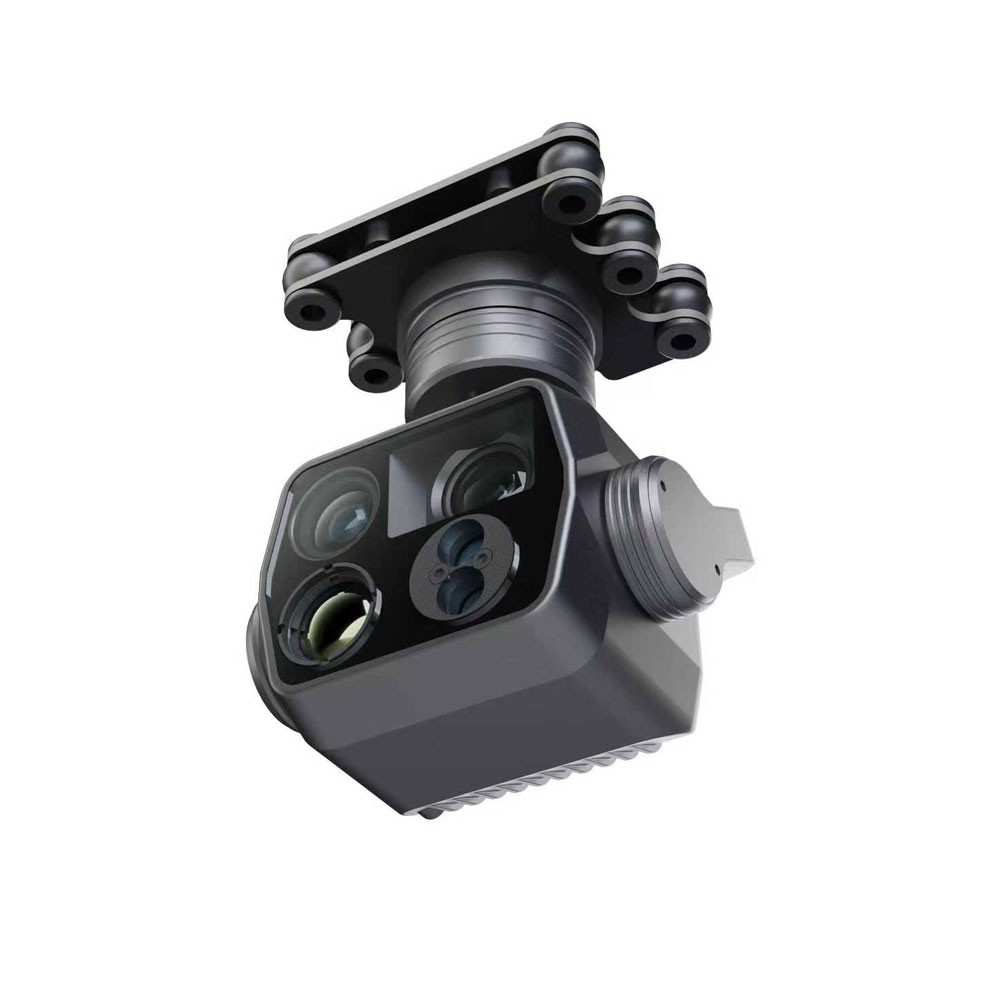

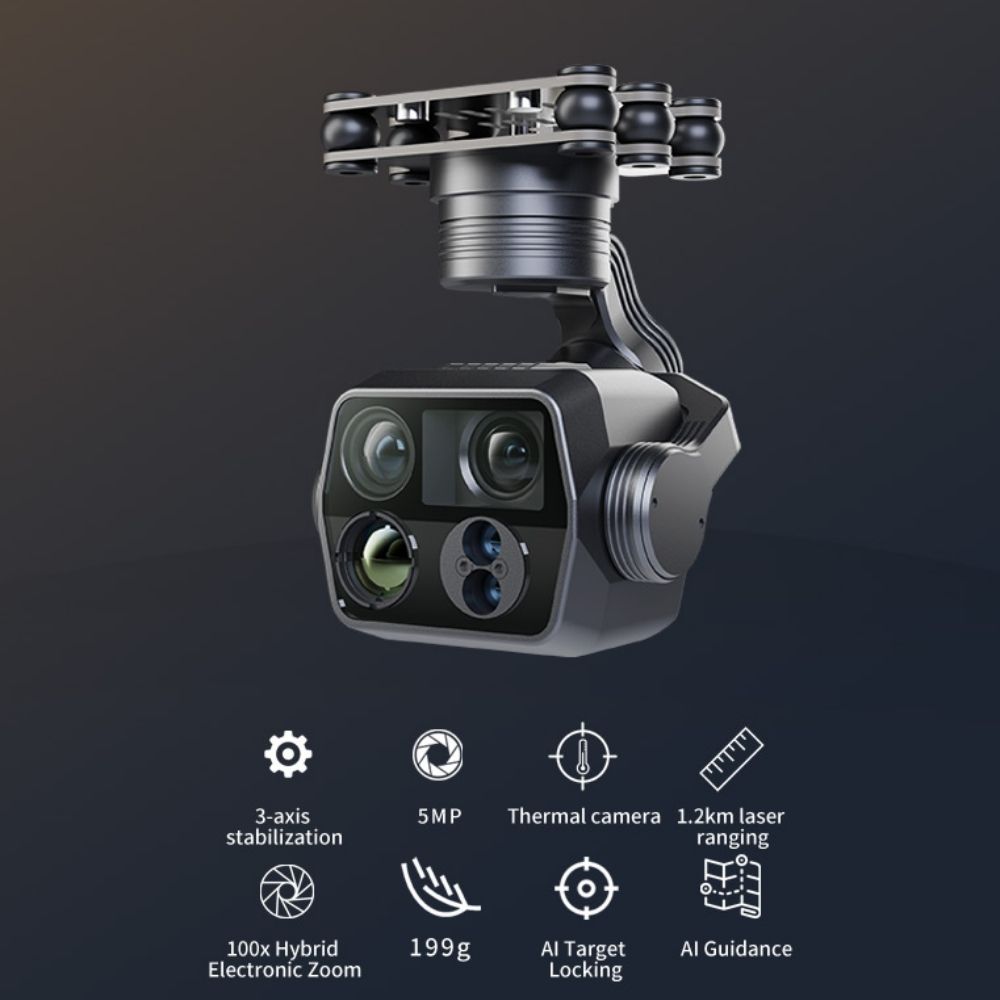

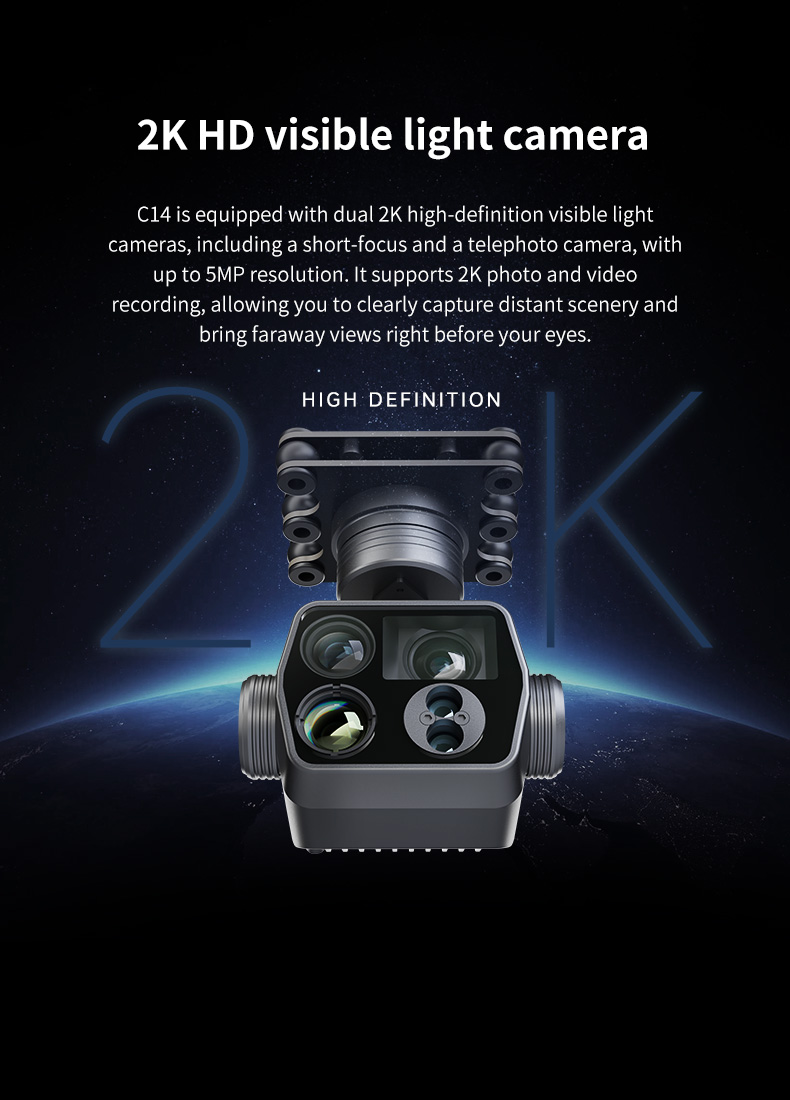

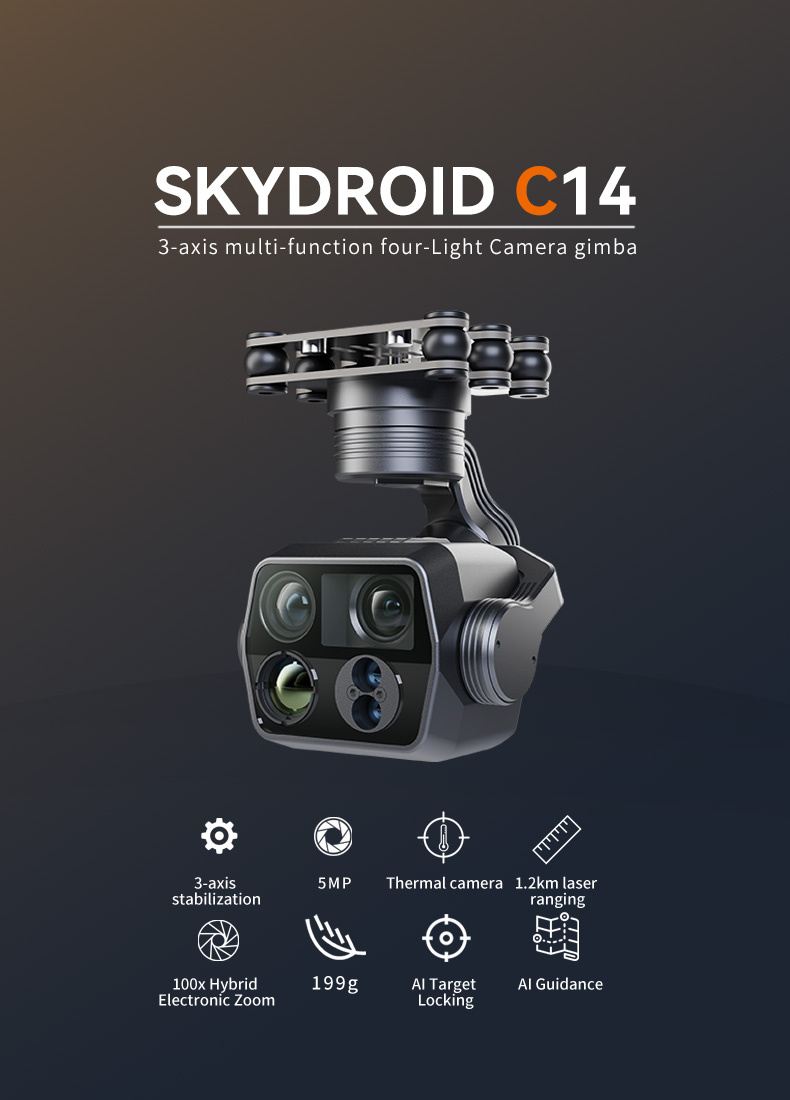

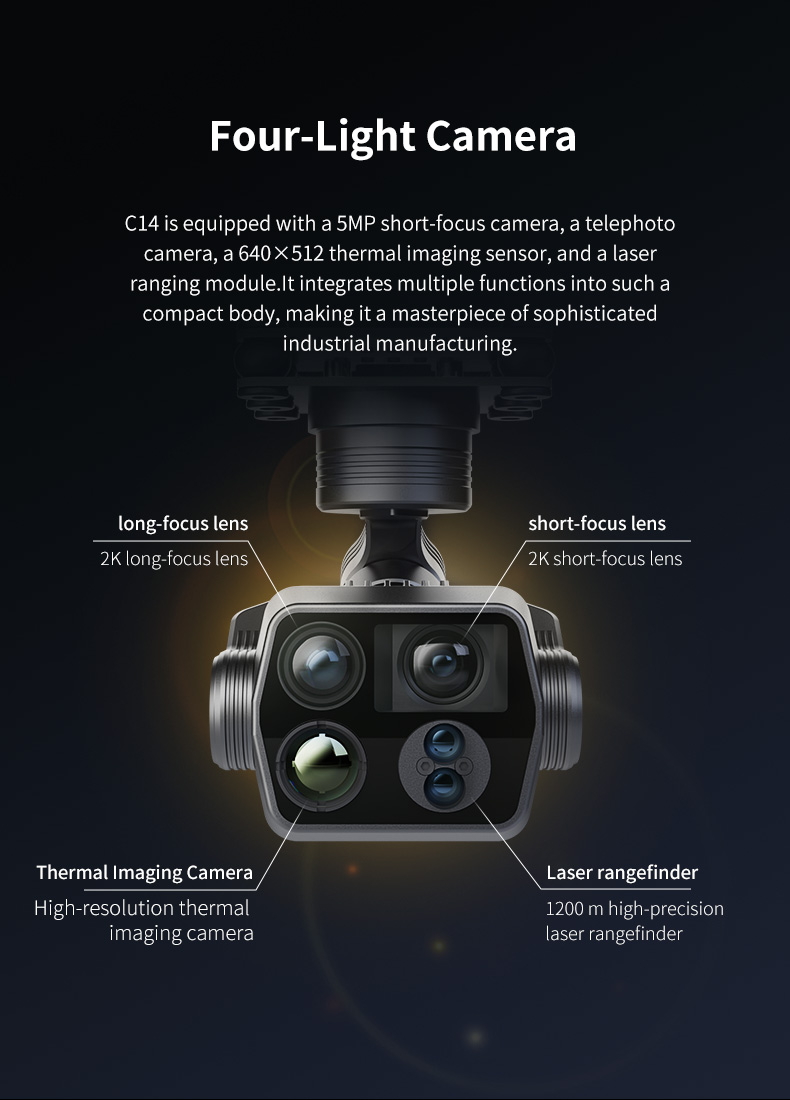

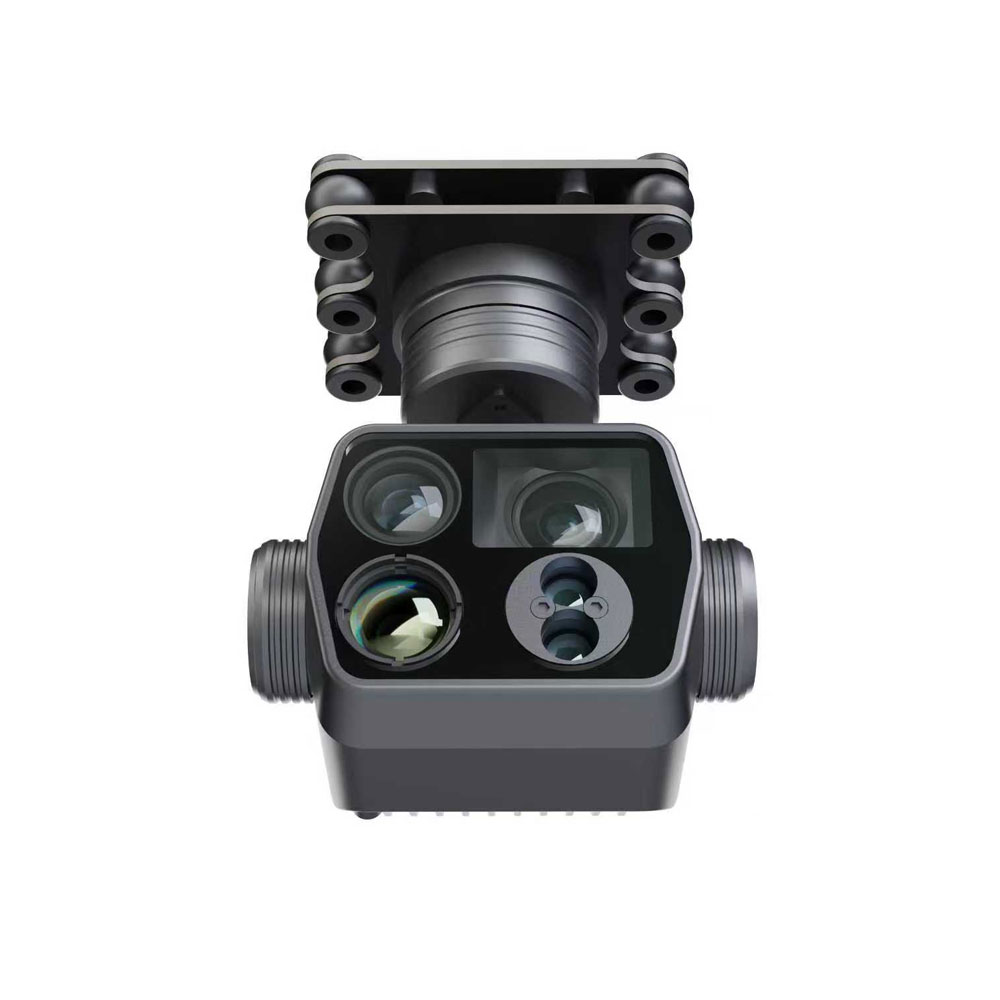

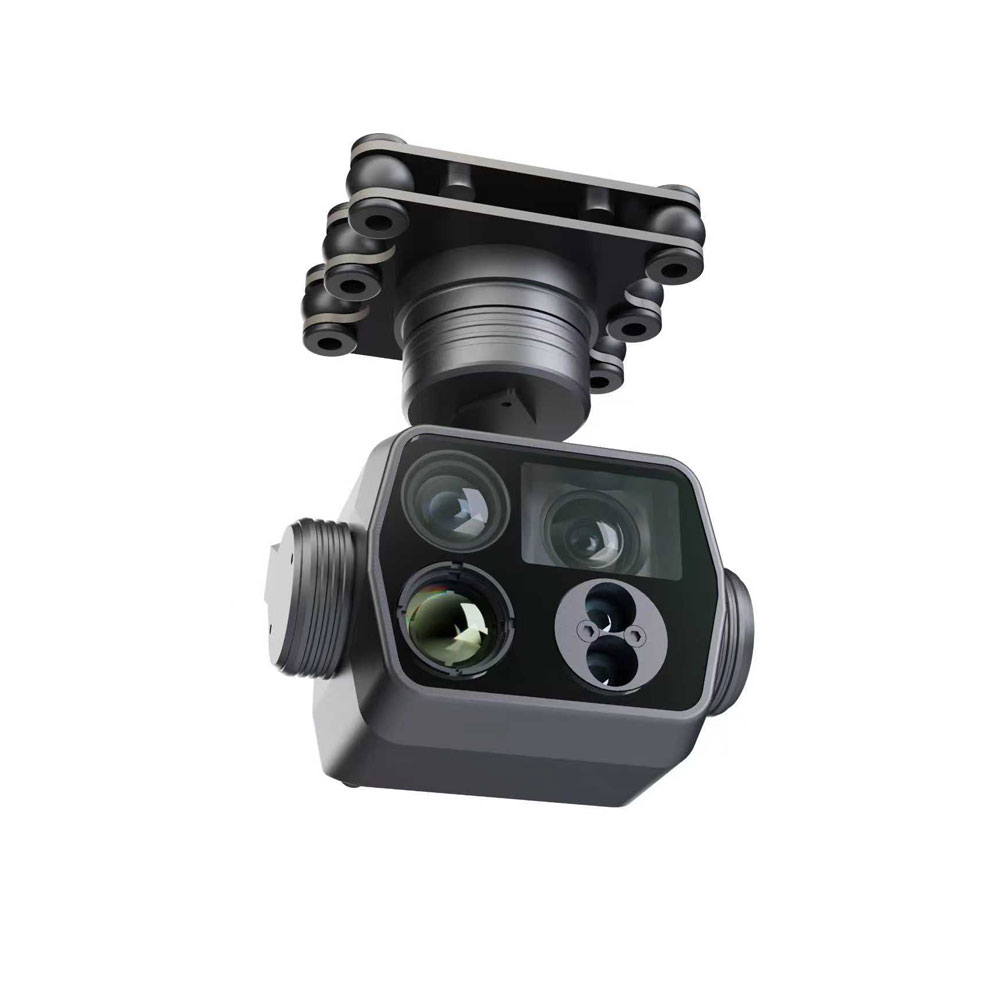

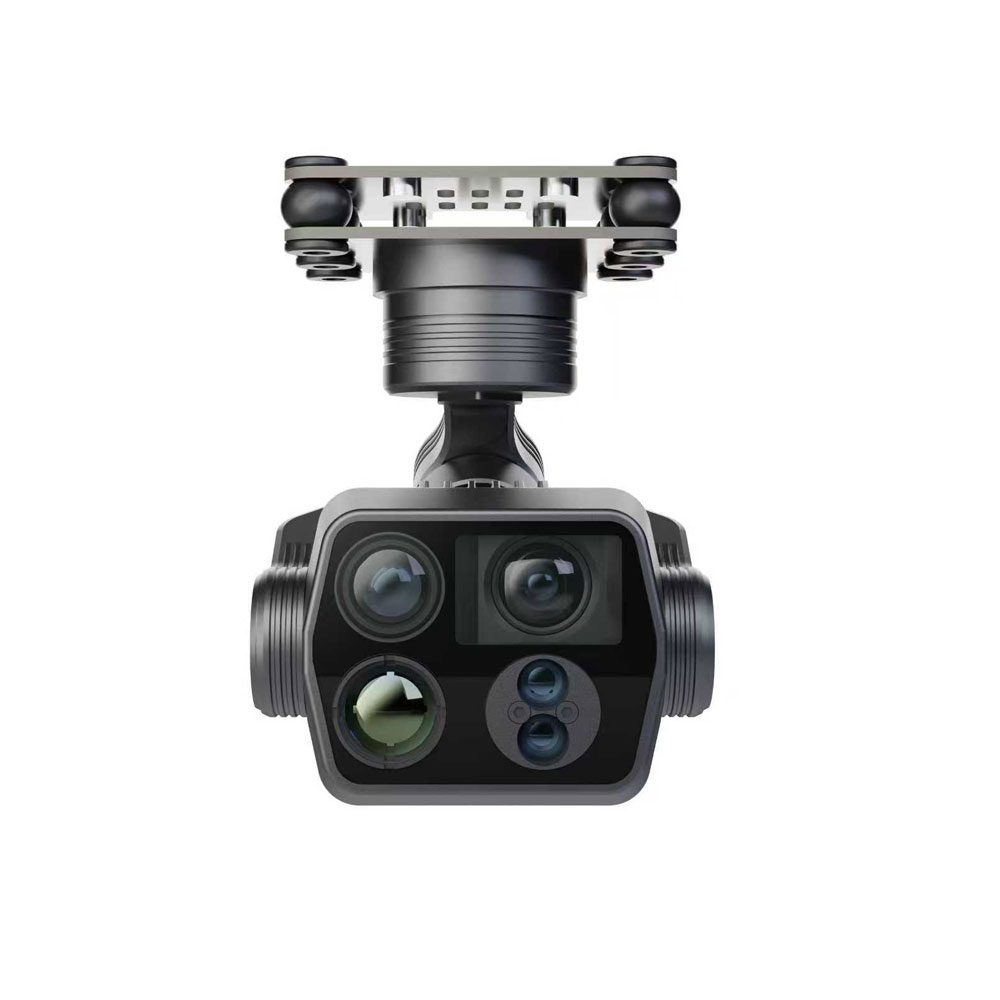

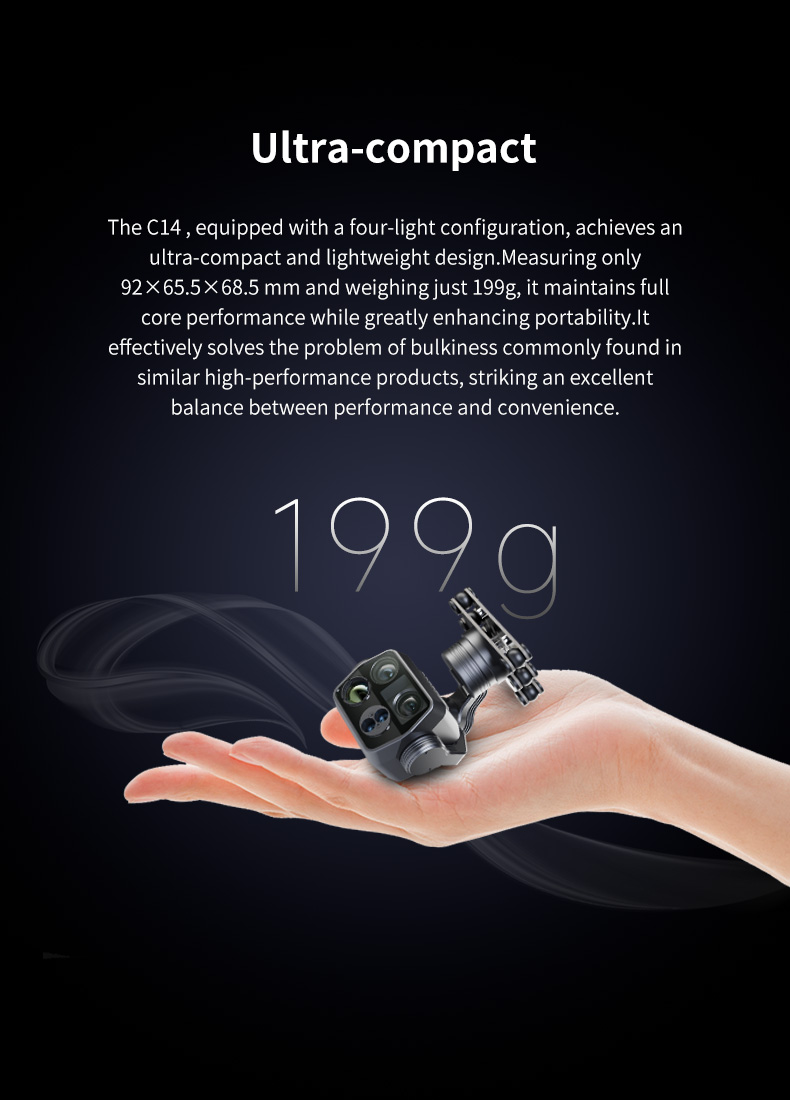

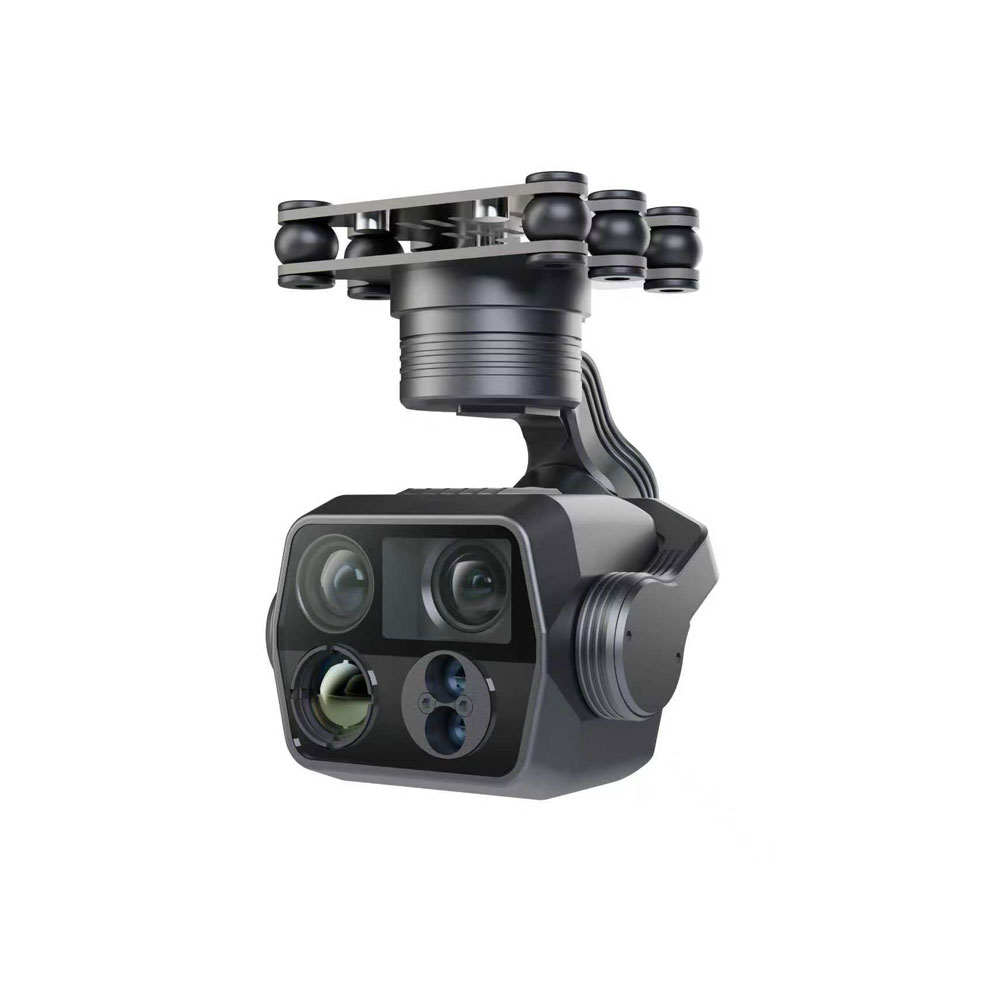

The C14 is a compact, high-definition, four-lamp mechanically stabilized gimbal. It utilizes a new-generation imaging chip, integrating distortion-free high-definition short-throw and long-throw cameras with an effective pixel count of up to 5 megapixels. It boasts powerful 2K video recording and photo-taking capabilities, supporting 100x hybrid electronic zoom (59x short-throw + 41x long-throw), enabling clear capture of distant objects. Equipped with a 640×512 resolution thermal imaging camera, it provides a wide field of view and clear images, allowing for long-distance observation of various heat sources. Combined with a laser rangefinder module, the effective range can reach up to 1.2 kilometers. Employing an industrial-grade three-axis stabilization structure, it significantly reduces image jitter, maintaining consistent image stability. It can be applied in fields such as fire rescue, animal protection, and security monitoring.











Includes:
C14 x 1
Gimbal mounting screws (M2.5 x 6) x 4
Ethernet power cable x 1
32GB Kingston memory card x 1 (already installed)
Card reader x 1
